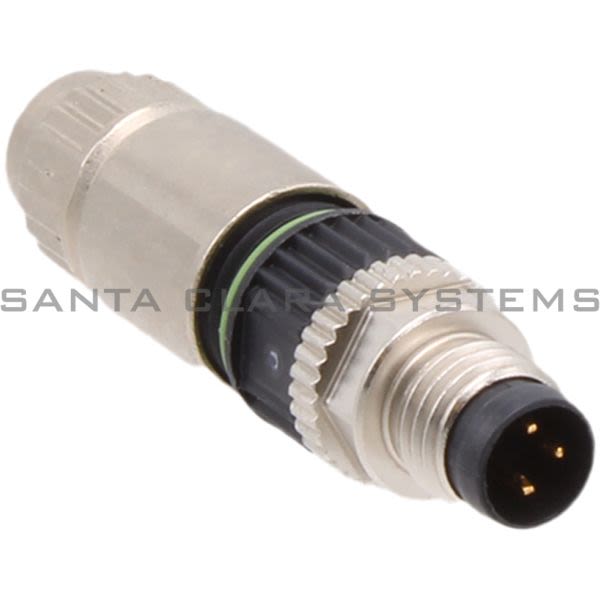

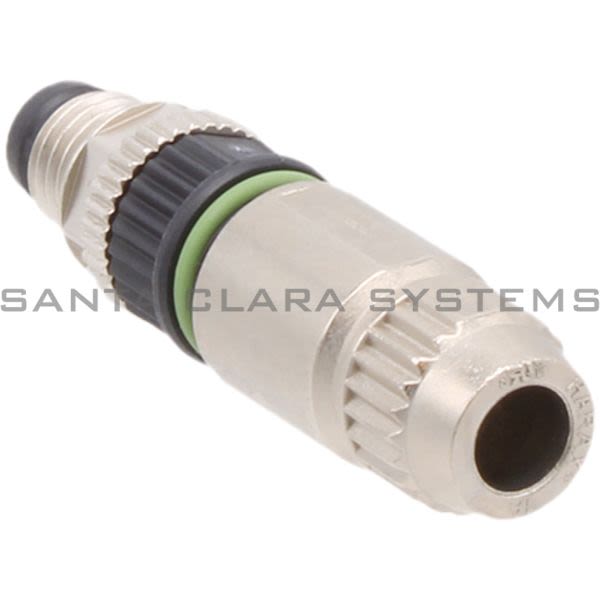

- Description: Plug
- Electrical connection: 3-pin - M8x1 - Straight plug/insulation displacement connector
- Ambient temperature: -25 °C ... 85 °C
- Connection cross section: 0.14 mm² - 0.34 mm²
- Degree of protection: IP65 - IP67
- Based on norm: EN 61076-2-104, EN 61984
- Contact durability: 3
- Product weight: 7.8 g
- DC operating voltage range: 0 V ... 32 V
- Operating voltage range AC: 0 V ... 32 V
- Current rating at 40° C: 4 A
- Surge resistance: 0.8 kV
- Approved cable diameter: 2.5 mm ... 5.1 mm
- Individual wire diameter: ≥0.1 mm
- Wire diameter: 0.9 mm ... 1.6 mm
- Contamination level: 3
- Corrosion resistance class (CRC): 1 - Low corrosion stress
- Material of pin contacts: Gold-plated
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on NECU-S-M8G3-HX . Santa Clara Systems carries 7,778 items from Festo.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
