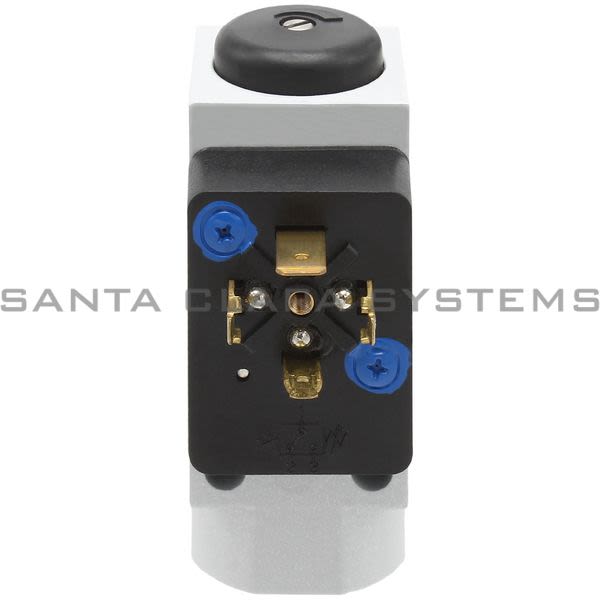

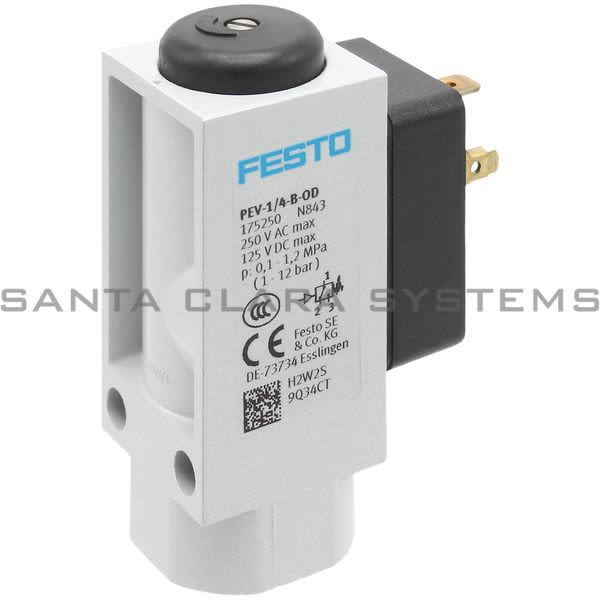

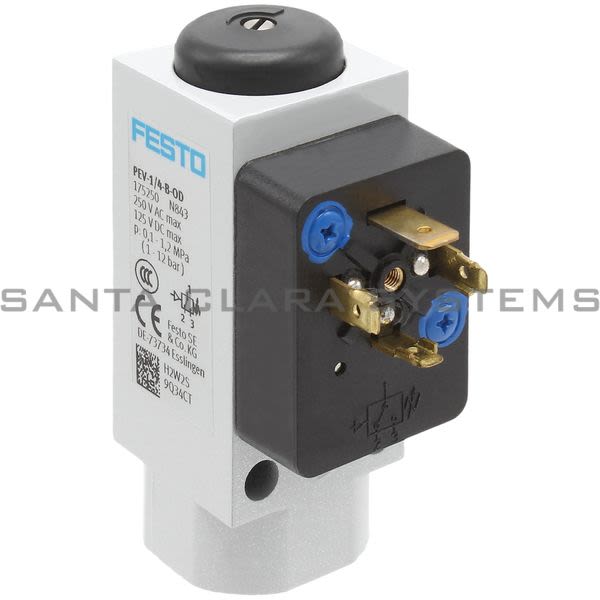

- Description: Pressure Switch
- Ambient temperature: -20 C ... 80 C
- Electrical connection: Form A Plug as per DIN 43650 Rectangular design
- Conforms to standard: EN 60947-5-1
- Symbol: 00991471
- Certification: CCC
- CE marking (see declaration of conformity): As per EU low voltage directive
- UKCA marking (see declaration of conformity): To UK instructions for electrical equipment
- Explosion prevention and protection: Observe the information on the certificate Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX)
- Measured variable: Relative pressure
- Method of measurement: Pneumatic/electric pressure transducer
- Operating pressure: 0.1 MPa ... 1.2 MPa - 1 bar ... 12 bar
- Operating medium: Compressed air as per ISO 8573-1:2010 [7:-:-] Water
- Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
- Temperature of medium: -20 C ... 80 C
- Switching element function: Changeover switch
- Max. switching frequency: 3 Hz
- Max. switching output voltage AC: 250 V
- Max. switching output voltage DC: 125 V
- Max. output current: 5000 mA
- Minimum load current: 1 mA at 24 V 10 mA at 10 V 100 mA at 5V
- Utilization category for inductive load: AC-14 DC-13
- Utilization category for ohmic load: AC-12 DC-12
- Type of mounting: With through-hole
- Mounting position: Any
- Pneumatic connection: G1/4
- Product weight: 194 g
- Housing material: Die-cast aluminum
- Switching contact material: Silver
- Switching status indication: LED yellow
- Setting range threshold value: 1 bar ... 12 bar
- Degree of protection: IP65
- Corrosion resistance class (CRC): 2 - Moderate corrosion stress
- LABS (PWIS) conformity: VDMA24364-B1/B2-L
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on PEV-1-4-B-OD . Santa Clara Systems carries 5,553 items from Festo.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
