PUN-10X1-5-SG-4-8-BL-1-4
Product Summary:
- Working length: 4.8 m
- Outside diameter: 9.5 mm
- Block Length: 1.165 m
- Bending radius relevant for flow rate: 50 mm
- Inside diameter: 6.4 mm
Get a Quote
Current response time:
6 Minutes 34 Seconds

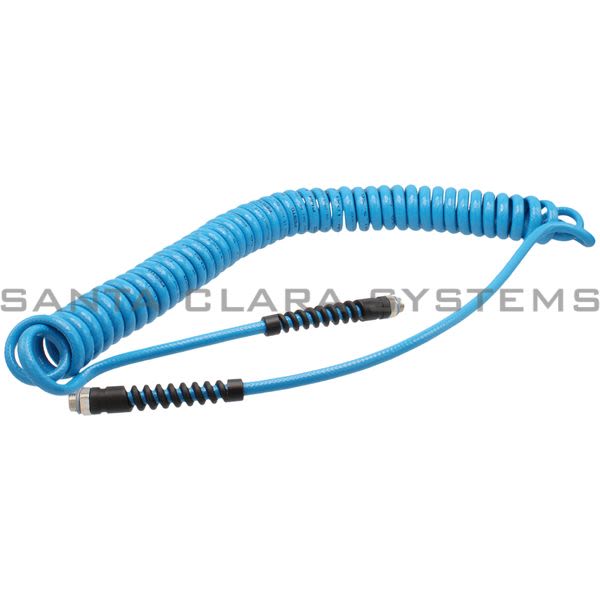

- Description: Spiral Plastic Tubing
- Working length: 4.8 m
- Outside diameter: 9.5 mm
- Block Length: 1.165 m
- Bending radius relevant for flow rate: 50 mm
- Inside diameter: 6.4 mm
- Winding diameter: 42 mm
- Number of windings: 50
- Type code: PUN-SG
- Temperature-dependent operating pressure: -0.95 bar … 15 bar
- Operating medium: Compressed air as per ISO 8573-1:2010 [7:-:-]
- Corrosion resistance class (CRC): 1 – Low corrosion stress
- Product weight: 340 g
- Pneumatic connection 1: External thread G1/4
- Pneumatic connection 2: External thread G1/4
- Color: Blue
- Shore hardness: A 87 +/-3
- Material of connecting thread: Nickel-plated Brass
- Antikink device material: POM
- Material of pneumatic tubing: TPE-U(PU)
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on PUN-10X1-5-SG-4-8-BL-1-4 . Santa Clara Systems carries 9,904 items from Festo.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
