QBL-1-4-3-8-U
Product Summary:
- Size: Standard
- Ambient temperature: 0 °C ... 60 °C
- Nominal width: 8.001 mm
- Type of seal on screwed plug: Coating
- Mounting position: Any
Get a Quote
Current response time:
15 Minutes 54 Seconds

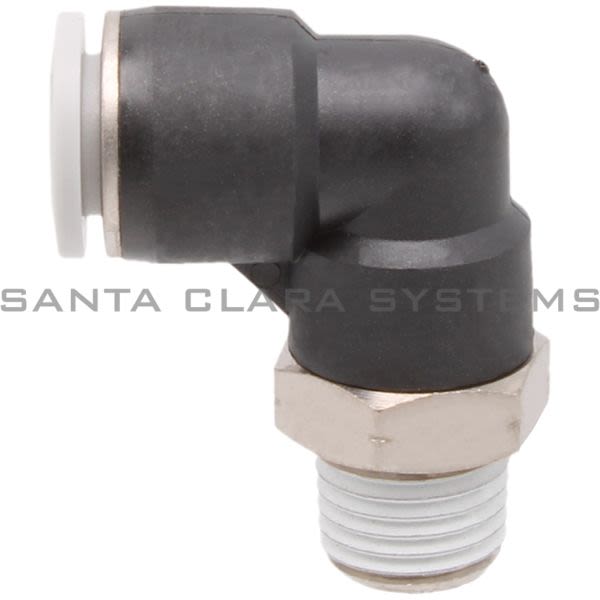

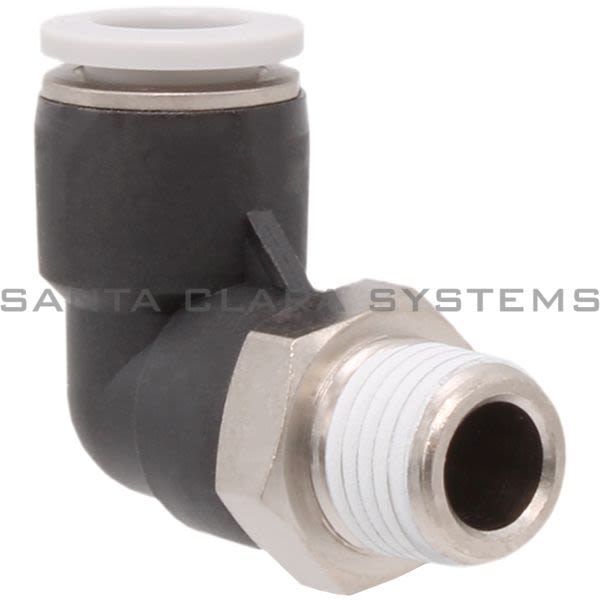

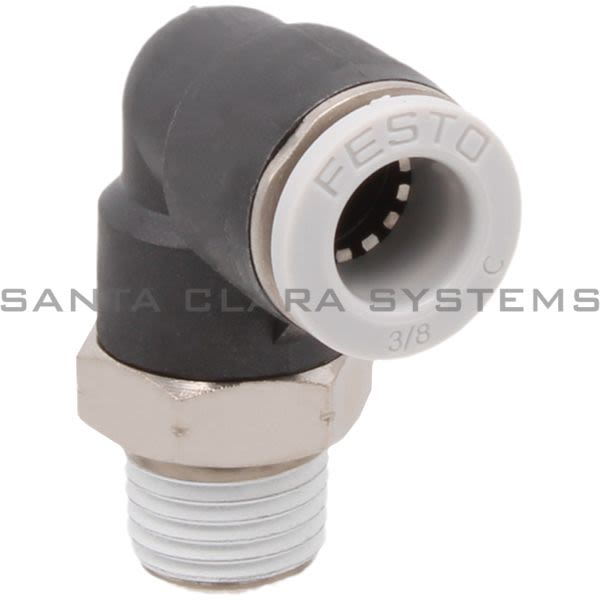

- Description: Push-In L-Fitting
- Size: Standard
- Ambient temperature: 0 °C ... 60 °C
- Nominal width: 8.001 mm
- Type of seal on screwed plug: Coating
- Mounting position: Any
- Design: L-shape
- Pack size: 5
- Structural design: Push-pull principle
- Operating pressure for entire temperature range: 0.95 bar ... 10 bar
- Operating medium: Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media: Operation with oil lubrication possible
- Corrosion resistance class (CRC): 1 - Low corrosion stress
- LABS (PWIS) conformity: VDMA24364 zone III
- Max. tightening torque: 12 Nm
- Product weight: 28.208 g
- Type of mounting: External hexagon 11/16
- Pneumatic connection 1: External thread 1/4 NPT
- Pneumatic connection 2: For pneumatic tubing outside diameter 3/8"
- Ambient temperature Fahrenheit: 32 °F ... 140 °F
- Releasing ring color: Gray
- Housing material: Brass, nickel-plated PBT
- Material of threaded seal: PTFE
- Releasing ring material: POM
- Material of tubing seal: NBR
- Material of tube retaining claw: High-alloy stainless steel
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on QBL-1-4-3-8-U . Santa Clara Systems carries 9,904 items from Festo.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
