QST-4
Product Summary:
- Size: Standard
- Ambient temperature: -10 °C ... 80 °C
- Nominal width: 2.8 mm
- Tubing insertion depth: 14.9 mm
- Mounting position: Any
Get a Quote
Current response time:
4 Minutes 9 Seconds

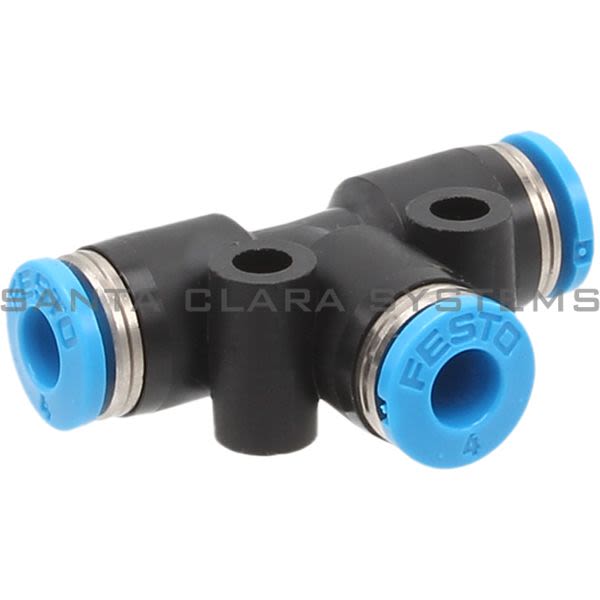

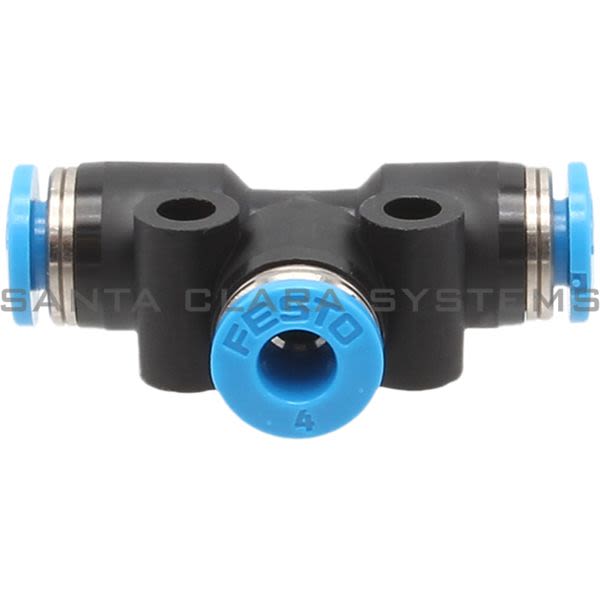

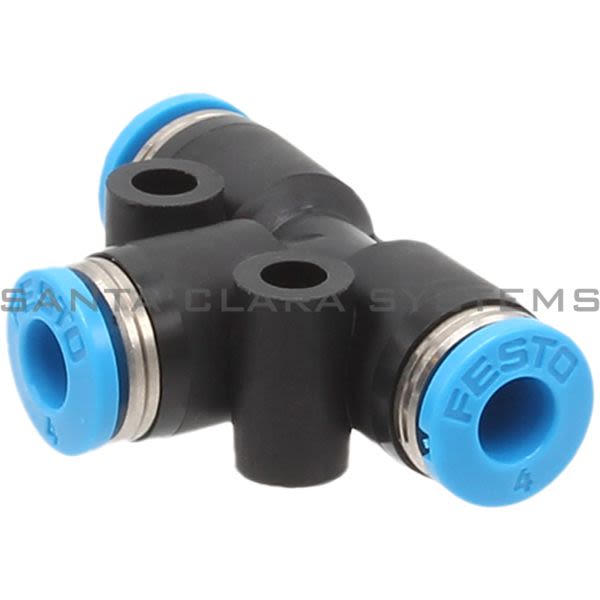

- Description: Push-In T-Connector
- Size: Standard
- Ambient temperature: -10 °C ... 80 °C
- Nominal width: 2.8 mm
- Tubing insertion depth: 14.9 mm
- Mounting position: Any
- Design: T-shape
- Structural design: Push-pull principle
- Operating pressure for entire temperature range: -0.095 MPa ... 0.6 MPa, -0.95 bar ... 6 bar, -13.775 psi ... 87 psi
- Temperature-dependent operating pressure: -0.095 MPa ... 1.4 MPa, -0.95 bar ... 14 bar, -13.775 psi ... 203 psi
- Information on operating pressure: Water: max. 0.6 MPa at max. 50 °C
- Operating medium: Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free)
- Information on operating and pilot media: Operation with oil lubrication possible
- Corrosion resistance class (CRC): 1 - Low corrosion stress
- LABS (PWIS) conformity: VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14: Class 4 according to ISO 14644-1
- No. of outlets: 2
- No. of supply lines: 1
- Pneumatic connection 1: For pneumatic tubing outside diameter 4 mm
- Pneumatic connection 2: For pneumatic tubing outside diameter 4 mm
- Releasing ring color: Blue
- Note on materials: RoHS-compliant
- Housing material: PBT
- Releasing ring material: POM
- Material of tubing seal: NBR
- Material of tube retaining claw: High-alloy stainless steel
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on QST-4 . Santa Clara Systems carries 9,904 items from Festo.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
