R-3-1-4-B
Product Summary:
- Ambient temperature: -10 °C ... 60 °C
- Actuation type: Mechanical
- Standard nominal flow rate: 600 l/min
- Pneumatic working port: G1/4
- Operating pressure: "-0.95 bar ...

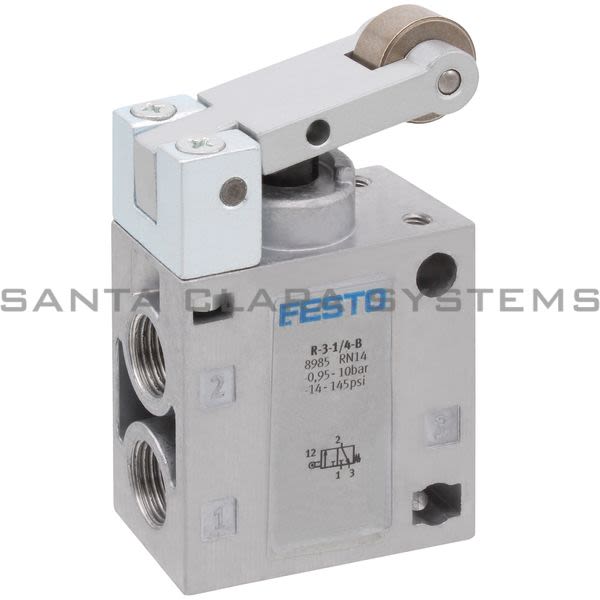

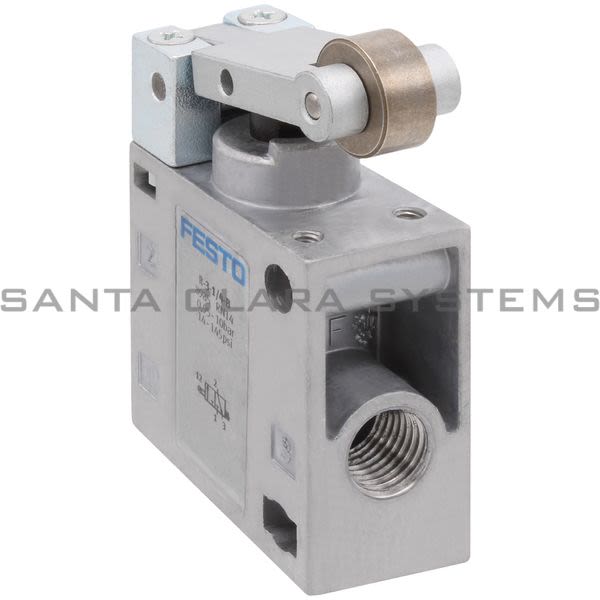

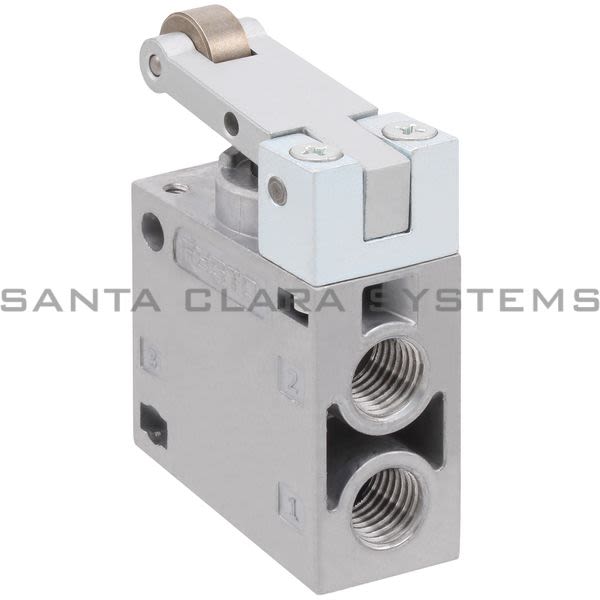

- Description: Roller Lever Valve
- Ambient temperature: -10 °C ... 60 °C
- Actuation type: Mechanical
- Standard nominal flow rate: 600 l/min
- Pneumatic working port: G1/4
- Operating pressure: "-0.95 bar ...
- Design: Piston seat
- Nominal width: 7 mm
- Type code: R
- Type of control: Direct
- Symbol: 991097
- Actuating force: 26 N
- Product weight: 230 g
- Type of mounting: With through-hole
- Pneumatic connection 1: G1/4
- Pneumatic connection 2: G¼
- Pneumatic connection 3: G1/4
- Seals material: NBR
- Housing material: Die-cast aluminum
- Valve function: 5/2, monostable
- Lap: Underlap
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on R-3-1-4-B . Santa Clara Systems carries 9,904 items from Festo.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
