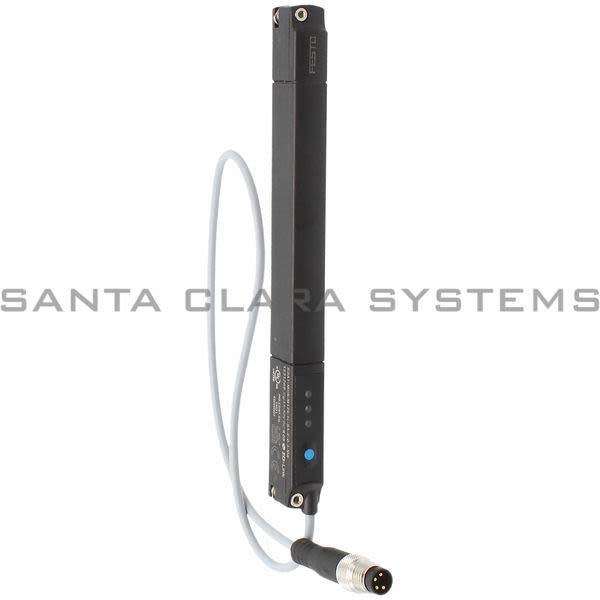

SDAT-MHS-M125-1L-SA-E-0.3-M8

Festo - Position Transmitter

Product Summary:

Ambient temperature: -25 �C ...70 �C
Type code: SDAT
Electrical connection 1 type of mounting: Screw-type lock

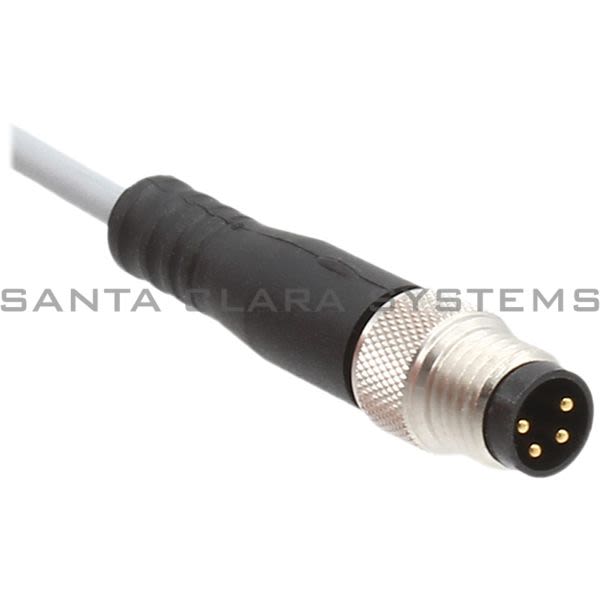

Electrical connection 1 connection type: Cable with plug
KC characters: KC EMC

Current response time:

14 Minutes 41 Seconds

Description: Position Transmitter
Ambient temperature: -25 �C ...70 �C
Type code: SDAT
Electrical connection 1 type of mounting: Screw-type lock
Electrical connection 1 connection type: Cable with plug
KC characters: KC EMC
Electrical connection 1 connection technology: M8x1 A-coded as per EN 61076-2-104
Electrical connection for input 1 connection pattern: 991171
Electrical connection 1 number of pins/wires: 4
Design: for T-slot
Symbol: 995389
Certification: RCM compliance mark c UL us - Listed (OL)
CE marking (see declaration of conformity): As per EU EMC directive
Measured variable: Position
Measuring principle: Magnetic Hall
Sensing range: 0 �m ...125000 �m
Typical sampling interval: 1 ms
Max. travel speed: 3 m/s
Displacement resolution: 0.05 mm
Repetition accuracy: 0.1 mm
Switching output: PNP
Switching element function: N/C contact/N/O contact switchable
On time: < 2 ms
Switch-off time: < 2 ms
Max. switching frequency: 1000 Hz
Max. output current: 100 mA
Max. switching capacity DC: 2.7 W
Voltage drop: 2.5 V

Analog output: 4 - 20 mA
Sensitivity: 0.128 mA/mm
Typical linearity error in � mm: �0.25 mm
Max. load resistance of current output: 500 Ohm
Short-circuit protection: yes
Overload protection: Available
Protocol: I-Port IO-Link
DC operating voltage range: 15 V ... 30 V
Residual ripple: 10%
Reverse polarity protection: for all electrical connections
Connection outlet orientation: Longitudinal
Material of pin contacts: Gold-plated Copper alloy
Cable length: 0.3 m
Cable characteristic: Suitability for energy chains/robot applications
Color cable sheath: Gray
Material of cable sheath: TPE-U(PUR)
Type of mounting: Screwed tightly Can be inserted in slot from above
Mounting position: Any
Product weight: 30 g
Housing material: High-alloy stainless steel PA-reinforced Brass nickel-plated Polyester
Material of union nut: Brass nickel-plated
Film material: Polyester
Ready status indication: LED green
Switching status indication: LED yellow
Status indicator: LED red
Setting options: Pushbutton IO-Link�
Ambient temperature with flexible cable installation: -20 �C ...70 �C
Degree of protection: IP68 IP65
