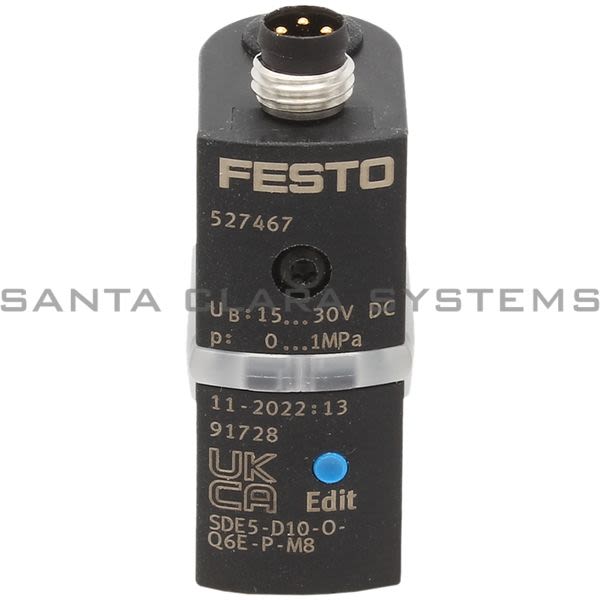

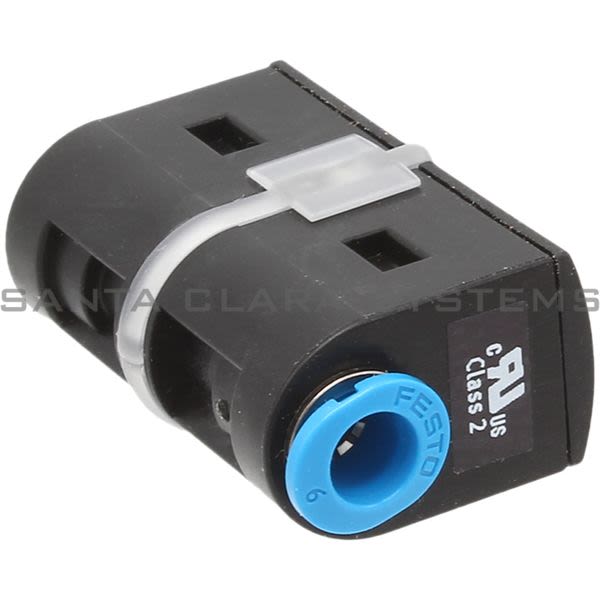

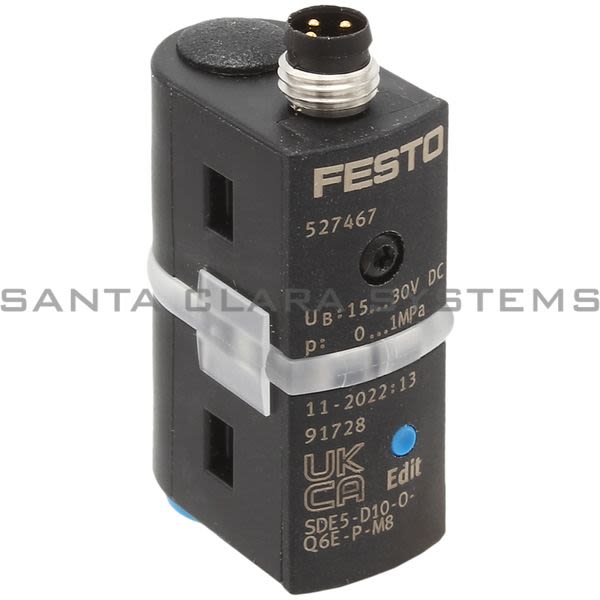

- Description: Pressure Sensor
- Ambient temperature: 0 C ...50 C
- Electrical connection: as per EN 60947-5-2 3-pin Round design Plug M8x1
- Type code: SDE5
- KC characters: KC EMC
- Symbol: 991164
- Certification: c UL us - Recognized (OL) RCM compliance mark
- CE marking (see declaration of conformity): As per EU EMC directive As per EU RoHS directive
- Measured variable: Relative pressure
- Method of measurement: Piezoresistive pressure sensor
- Pressure measuring range initial value: 0 bar
- Pressure measuring range end value: 10 bar
- Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media: Operation with oil lubrication possible
- Temperature of medium: 0 C ...50 C
- Repetition accuracy in %FS: 0.3 %FS
- Temperature co-efficient in %FS/K: 0.05 %FS/K
- Switching output: PNP
- Switching function: Threshold value with fixed hysteresis
- Switching element function: N/O contact
- Max. output current: 100 mA
- Short-circuit protection: yes
- DC operating voltage range: 15 V ...30 V
- Reverse polarity protection: for all electrical connections
- Type of mounting: With accessories
- Mounting position: Any
- Pneumatic connection: QS-6
- Product weight: 19 g
- Housing material: POM PA
- Switching status indication: LED yellow
- Threshold value setting range: 0 % ...100 %
- Degree of protection: IP40
- Corrosion resistance class (CRC): 2 - Moderate corrosion stress
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on SDE5-D10-O-Q6E-P-M8 . Santa Clara Systems carries 2,975 items from Festo.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
