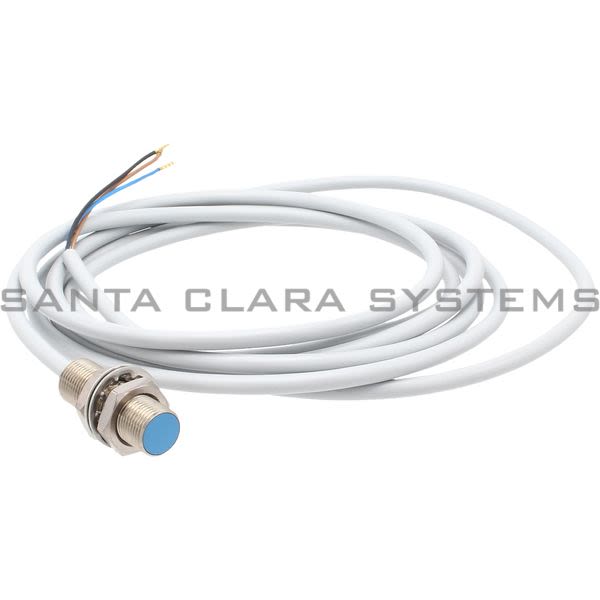

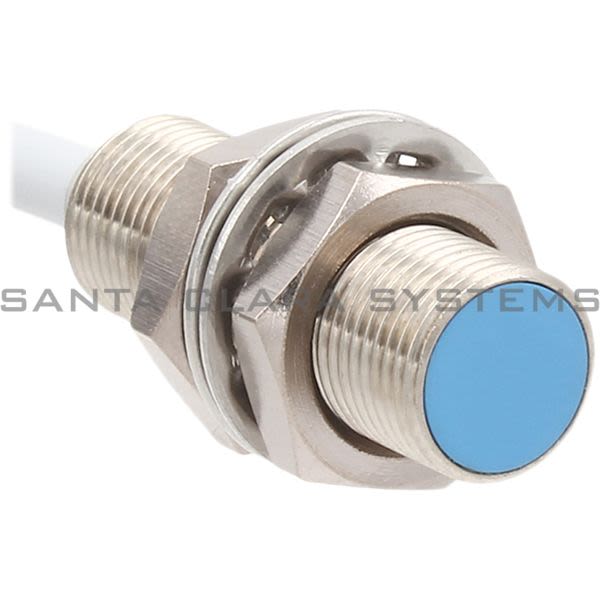

- Description: Proximity Sensor
- Size: M12
- Ambient temperature: -25 C ... 70 C

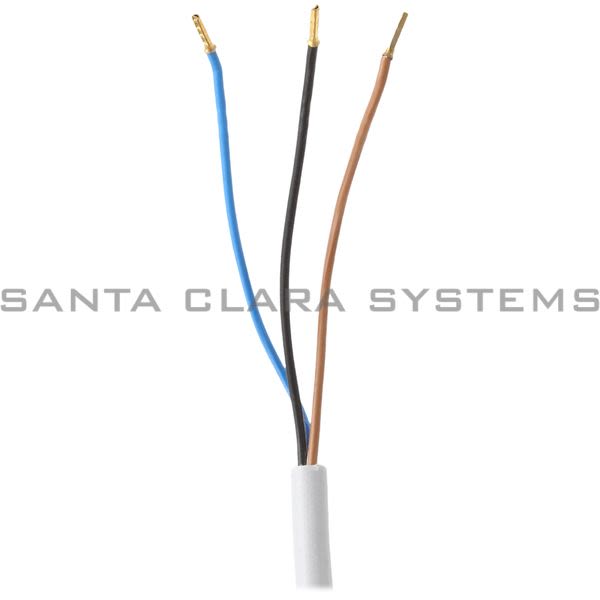

- Electrical connection: Cable
- Conforms to standard: Conforms to standard
- Symbol: 00991702
- Certification: C-Tick c UL us - Listed (OL)
- CE marking (see declaration of conformity): As per EU EMC directive
- Rated operating distance: 4 mm
- Assured operating distance: 3.24 mm
- Reduction factors: Aluminum = 0.4 Stainless steel St 18/8 = 0.8 Copper = 0.4 Brass = 0.5 Steel St 37 = 1.0
- Repetition accuracy under constant conditions: 0.2 mm
- Switching output: PNP
- Switching element function: N/O contact
- Hysteresis: 0.36 mm
- Max. switching frequency: 2500 Hz
- Max. output current: 200 mA
- Voltage drop: 2 V
- Inductive protective circuit: Installed
- Short-circuit protection: Pulsed
- DC operating voltage range: 10 V ... 30 V
- Residual ripple: 10%
- Idle current: 10 mA
- Reverse polarity protection: For all electrical connections
- Cable length: 2.5 m
- Material of cable sheath: TPE-U(PUR)
- Type of mounting: With lock nut
- Mounting type: Flush
- Product weight: 110 g
- Housing material: Brass PBTP Nickel-plated
- Switching status indication: LED yellow
- Ambient temperature with flexible cable installation: -5 C ... 70 C
- Degree of protection: IP65 IP67
- Corrosion resistance class (CRC): 2 - Moderate corrosion stress
- LABS (PWIS) conformity: VDMA24364-B2-L
- Selection of additional sensor information: With increased switching distance
- Electrical output: PNP
- Selection of sensor version: Standard
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on SIEH-M12B-PS-K-L . Santa Clara Systems carries 5,560 items from Festo.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
