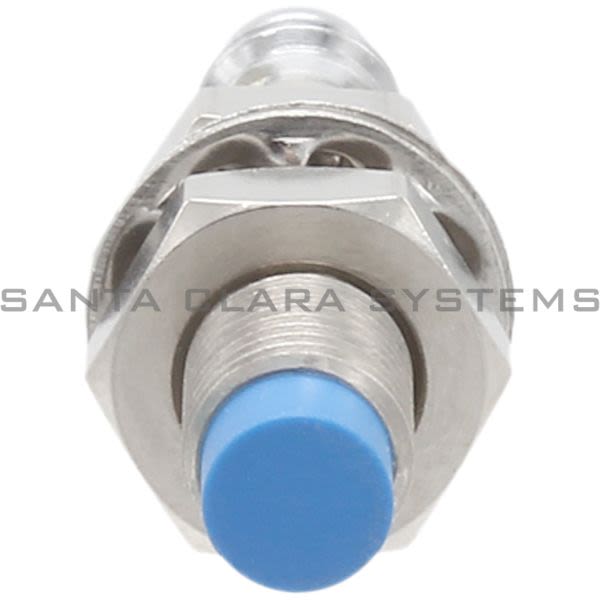

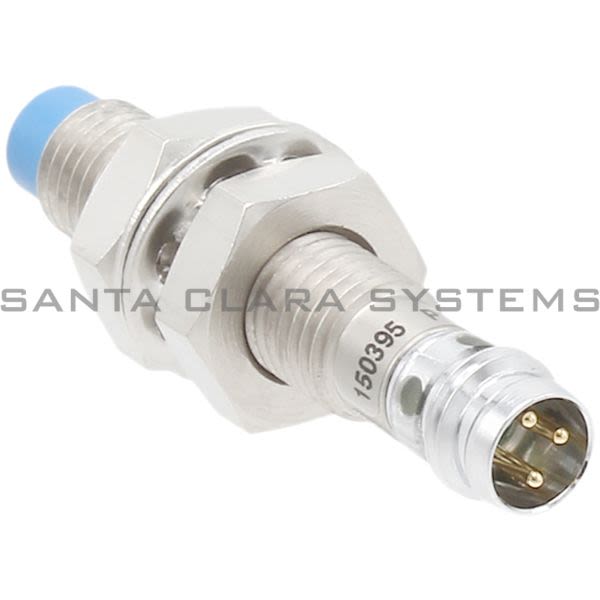

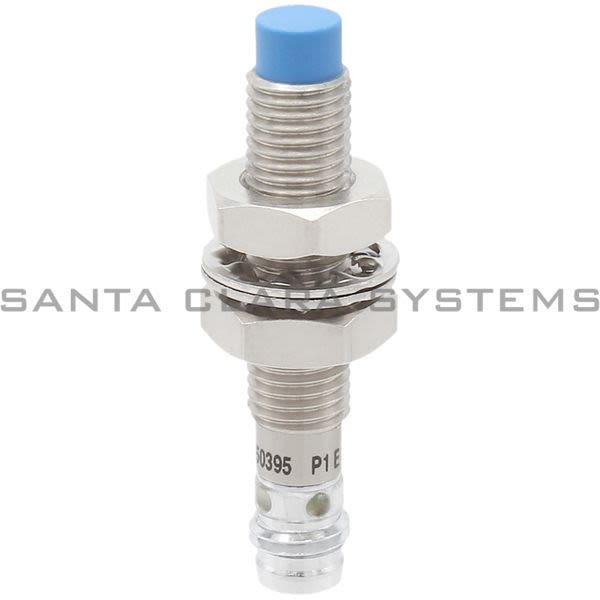

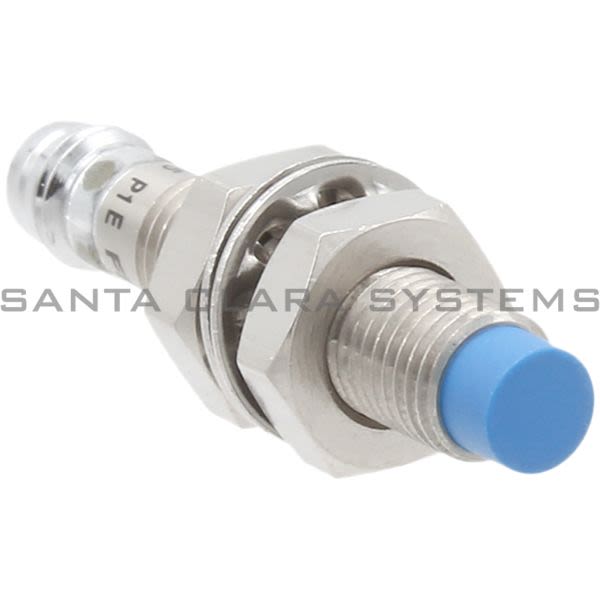

- Description: Proximity Sensor
- Size: M8x1
- Electrical connection: 3-pin - M8x1 - Plug
- Ambient temperature: -25 C ... 70 C
- Switching output: PNP
- Switching element function: N/O contact
- DC operating voltage range: 10 V - 30 V
- Conforms to standard: EN 60947-5-2
- Symbol: 00991701
- Certification: RCM compliance mark c UL us - Listed (OL)
- CE marking (see declaration of conformity): As per EU EMC directive
- Rated operating distance: 2.5 mm
- Assured operating distance: 2.03 mm
- Reduction factors: Aluminum = 0.25 Stainless steel St 18/8 = 0.7 Copper = 0.2 Brass = 0.35 Steel St 37 = 1.0
- Repetition accuracy under constant conditions: 0.12 mm
- Hysteresis: 0.12 mm
- Max. switching frequency: 3000 Hz
- Max. output current: 200 mA
- Voltage drop: 2 V
- Inductive protective circuit: Installed
- Short-circuit protection: Pulsed
- Residual ripple: 10%
- Idle current: 10 mA
- Reverse polarity protection: For all electrical connections
- Type of mounting: With lock nut
- Mounting type: Not flush
- Product weight: 18 g
- Housing material: Brass PA PBTP High-alloy stainless steel Chrome-plated
- Switching status indication: LED yellow
- Ambient temperature with flexible cable installation: -5 C ... 70 C
- Degree of protection: IP65 IP67
- Corrosion resistance class (CRC): 2 - Moderate corrosion stress
- LABS (PWIS) conformity: VDMA24364-B2-L
- Selection of additional sensor information: With standard switching distance
- Electrical output: PNP
- Selection of sensor version: Standard
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on SIEN-M8NB-PS-S-L . Santa Clara Systems carries 5,553 items from Festo.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
