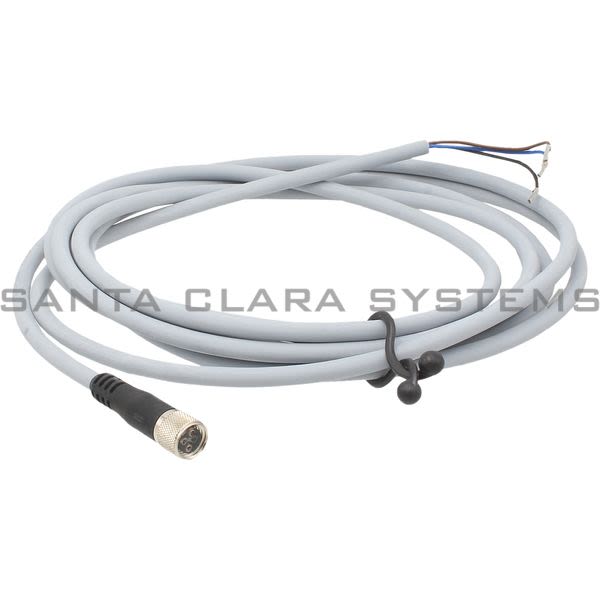

• Festo SIM-M8-3GD-2,5-PU Connecting Line Product Image
  • Festo SIM-M8-3GD-2,5-PU Connecting Line Product Image
  • Festo SIM-M8-3GD-2,5-PU Connecting Line Product Image
  • Festo SIM-M8-3GD-2,5-PU Barcode

SIM-M8-3GD-2-5-PU

Product Summary:

  • Electrical connection: "Straight socket/open end M8x1 / -3-pin/3-wire"
  • Ambient temperature: -25 C ...80 C
  • Current rating at 40C: 0.166666667
  • Type code: SIM
  • Conforms to standard: EN 61076-2-104 EN 61984
Get a Quote

Current response time:

13 Minutes 57 Seconds
  • Description: Connecting Line
  • Electrical connection: "Straight socket/open end M8x1 / -3-pin/3-wire"
  • Ambient temperature: -25 C ...80 C
  • Current rating at 40C: 0.166666667
  • Type code: SIM
  • Conforms to standard: EN 61076-2-104 EN 61984
  • DC operating voltage range: 0 V ...60 V
  • Operating voltage range AC: 0 V ...60 V
  • Current rating at 40C: 4:00 AM
  • Surge resistance: 1.5 kV
  • Cable length: 2.5 m
  • Cable characteristic: Standard
  • Connector cable test conditions: Cable chain: 5 million cycles bending radius 75 mm Flexural strength: as per Festo standard Test conditions on request
  • Cable diameter: 4.5 mm
  • Cable design: 3 x 0.25 mm
  • Nominal conductor cross section: 0.25 mm

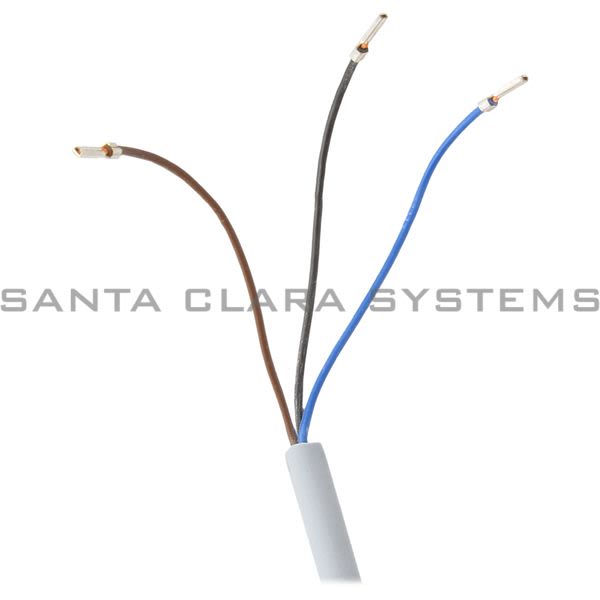

  • Wire insulation color code: Black Brown Blue
  • Degree of protection: IP68 IP65
  • Ambient temperature with flexible cable installation: -5 C ...80 C
  • CE marking (see declaration of conformity): As per EU low voltage directive As per EU RoHS directive
  • Contamination level: 3
  • Corrosion resistance class (CRC): 2 - Moderate corrosion stress
  • Material of cable sheath: TPE-U(PU)
  • Color cable sheath: Gray
  • Housing material: TPE-U(PU)
  • Housing colour: Black
  • Material of union nut: Nickel-plated Brass
  • Insulating sheath material: PP
  • Symbol: 991871
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on SIM-M8-3GD-2-5-PU . Santa Clara Systems carries 391 items from Festo.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
