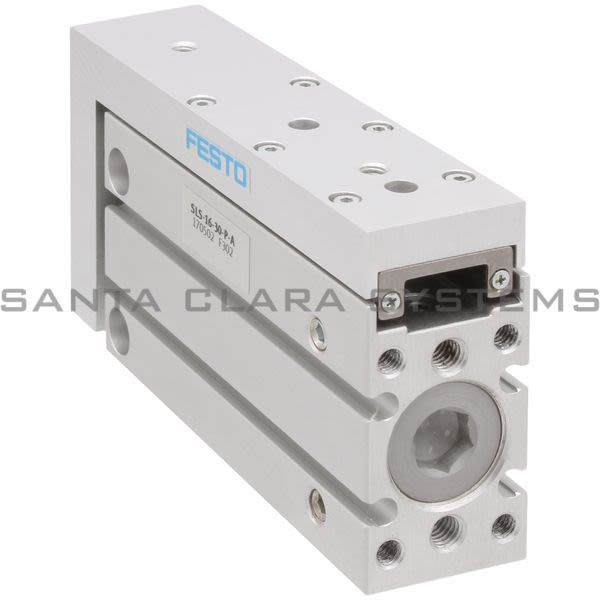

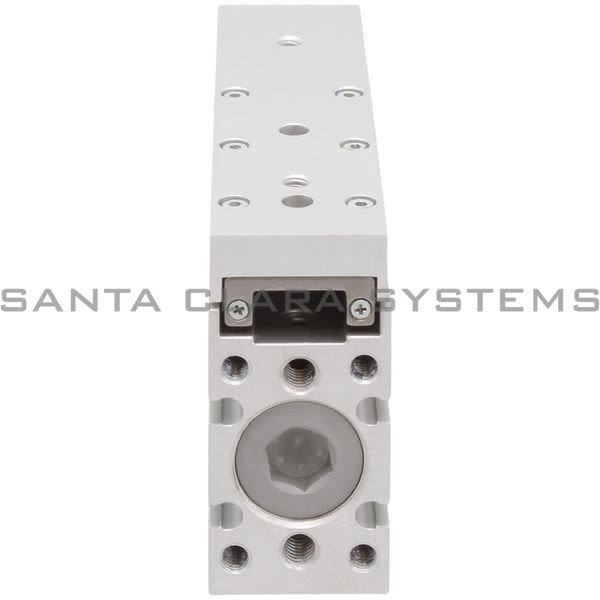

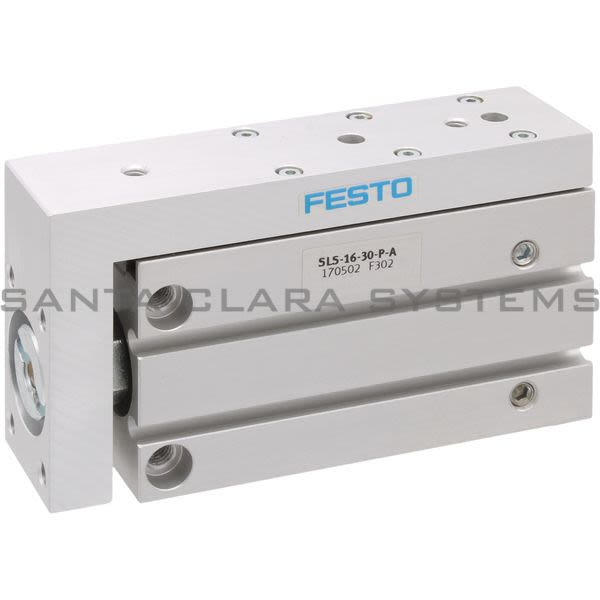

SLS-16-30-P-A
Product Summary:
- Ambient temperature: -20 °C ... 60 °C
- Stroke: 30 mm
- Piston diameter: 16 mm
- Drive unit operating mode: Yoke
- Cushioning: Elastic cushioning rings/pads at both ends
Get a Quote
Current response time:
4 Minutes 30 Seconds
- Description: Mini Slide
- Ambient temperature: -20 °C ... 60 °C
- Stroke: 30 mm
- Piston diameter: 16 mm
- Drive unit operating mode: Yoke
- Cushioning: Elastic cushioning rings/pads at both ends
- Mounting position: Any
- Guide: Ball bearing cage guide
- Structural design: Yoke, Piston, Piston rod, Ball roller guide, Slide
- Position sensing: For proximity sensor
- Symbol: 00991737
- Operating pressure: 1 bar ... 10 bar
- 1 bar ... 10 bar: Double-acting
- Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC): 0 - No corrosion stress
- LABS (PWIS) conformity: VDMA24364-B2-L
- Impact energy in the end positions: 0.15 J
- Max. force Fy: 390 N
- Max. force Fz: 390 N
- Max. torque Mx: 2.5 Nm
- Max. torque My: 2.5 Nm
- Max. torque Mz: 1.4 Nm
- Theoretical force at 6 bar, retracting: 104 N
- Theoretical force at 6 bar, advancing: 121 N
- Moving mass: 115 g
- Product weight: 301 g
- Alternative connections: See product drawing
- Type of mounting: With through-hole
- Pneumatic connection: M5
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on SLS-16-30-P-A . Santa Clara Systems carries 9,904 items from Festo.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
