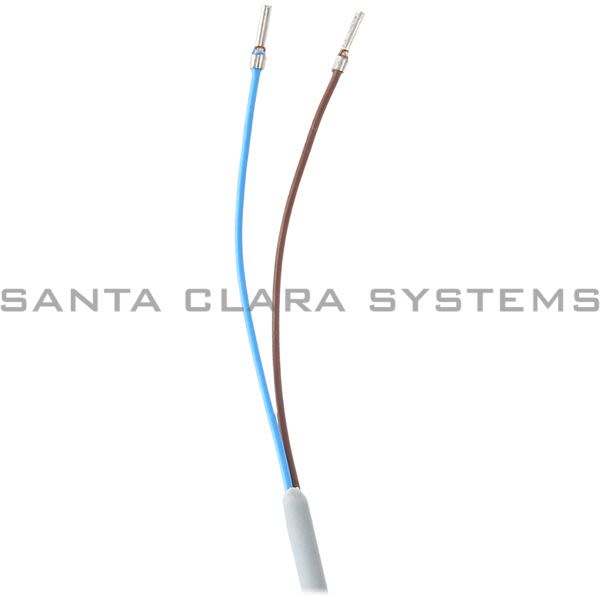

• Festo SME-8-K-24-S6 Proximity Sensor Product Image

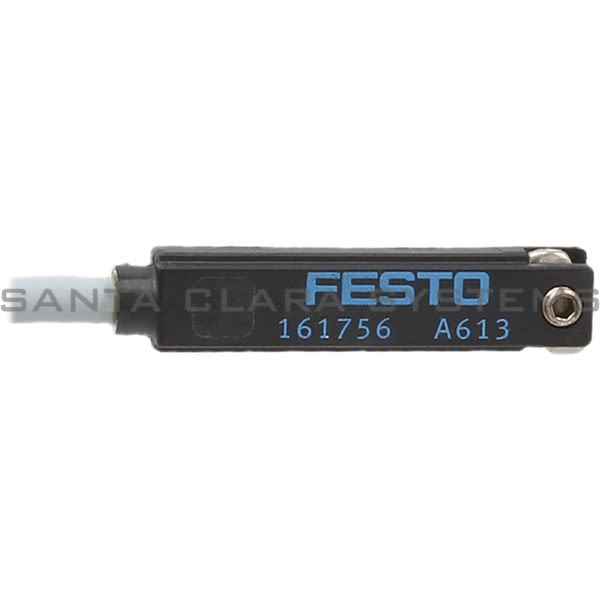

  • Festo SME-8-K-24-S6 Proximity Sensor Product Image

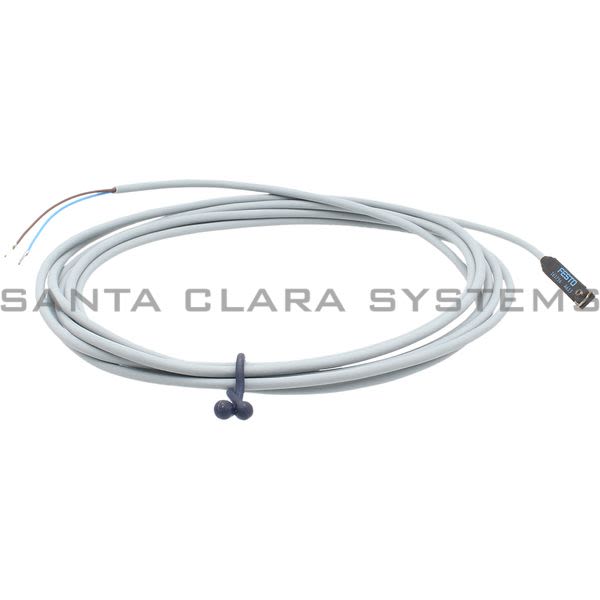

  • Festo SME-8-K-24-S6 Proximity Sensor Product Image
  • Festo SME-8-K-24-S6 Barcode

SME-8-K-24-S6

Product Summary:

  • Ambient temperature: -40 C ...120 C
  • Type code: SME
  • Electrical connection 1 connection technology: Open end
  • Electrical connection 1 connection type: Cable
  • Electrical connection 1 number of pins/wires: 2
Get a Quote

Current response time:

4 Minutes 27 Seconds
  • Description: Proximity Sensor
  • Ambient temperature: -40 C ...120 C
  • Type code: SME
  • Electrical connection 1 connection technology: Open end
  • Electrical connection 1 connection type: Cable
  • Electrical connection 1 number of pins/wires: 2
  • Design: for T-slot
  • Conforms to standard: EN 60947-5-2
  • Symbol: 991624
  • Measuring principle: Magnetic reed
  • Switching output: Contact-based, bipolar
  • Switching element function: N/O contact
  • Reproducibility of switching value: +/- 0.1 mm
  • On time: 0.5 ms
  • Switch-off time: 0.03 ms
  • Max. switching frequency: 800 Hz
  • Max. output current: 500 mA
  • Min. switching capacity AC: 10 VA
  • Max. switching capacity DC: 10 W
  • Voltage drop: 0 V
  • Short-circuit protection: no
  • Overload protection: Not available
  • Operating voltage range AC: 0 V ...30 V
  • DC operating voltage range: 0 V ...30 V
  • Reverse polarity protection: no
  • Connection outlet orientation: Longitudinal
  • Cable length: 2.5 m
  • Material of cable sheath: TPE-S
  • Type of mounting: Can be inserted in slot lengthwise Clamped in T slot
  • Tightening torque: 0.2 Nm
  • Product weight: 50 g
  • Housing material: High-alloy stainless steel Epoxy resin PET
  • Ambient temperature with flexible cable installation: -5 C ... 120 C
  • Degree of protection: IP67
  • Insulation voltage: 50 V
  • Surge resistance: 0.8 kV
  • Contamination level: 3
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on SME-8-K-24-S6 . Santa Clara Systems carries 1,027 items from Festo.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
