SMT-10G-PS-24V-E-0-3Q-M8D

Festo - Proximity Sensor

Current response time:

19 Minutes 24 Seconds

Description: Proximity Sensor
Ambient temperature: -20 °C ... 70 °C
Design: For round slot
Based on norm: EN 60947-5-2
Symbol: 00991153
Measured variable: Position
Measuring principle: Magneto-resistive
Repetition accuracy: 0.2 mm
Switching output: PNP
Switching element function: N/O contact
On time: ≤1 ms
Switch-off time: ≤1 ms
Max. switching frequency: 150 Hz
Max. output current: 100 mA
Max. switching capacity DC: 2.8 W
Voltage drop: ≤2 V
Inductive protective circuit: Adapted to MZ, MY and ME coils
Residual current: ≤0.01 mA
Short-circuit protection: Yes
Overload protection: Available
Rated operating voltage DC: 24 V
DC operating voltage range: 10 V ... 30 V

Residual ripple: 10 %
Reverse polarity protection: For all electrical connections

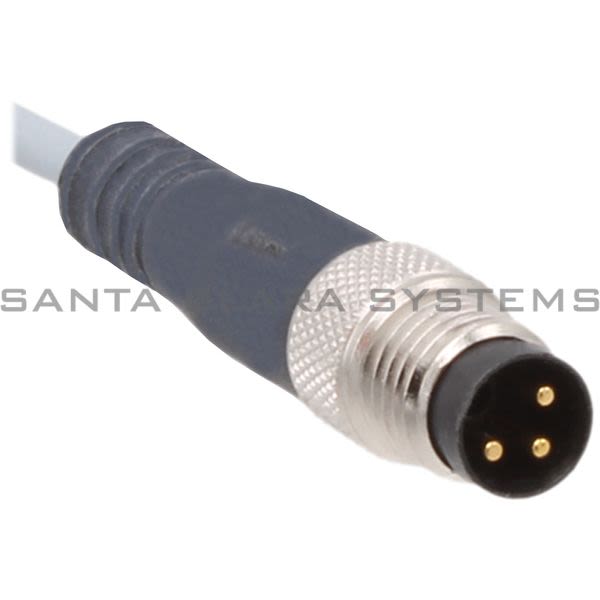

Electrical connection 1, connection type: Cable with plug
Electrical connection 1, connection technology: M8x1 A-coded as per EN 61076-2-104
Electrical connection 1, number of pins/wires: 3
Electrical connection 1, type of mounting: Screw-type lock with hexagon AF 9 and longitudinal knurl, rotatable - Compatible with rotatable/non-rotatable screw lock
Electrical connection for input 1, connection pattern: 00991155
Connection outlet orientation: Transverse
Material of pin contacts: Brass, gold-plated
Connector cable test conditions: Flexural strength: as per Festo standard - Test conditions on request - Torsion resistance: > 300,000 cycles, ±270°/0.1 m - Energy chain > 5 million cycles, bending radius 28 mm
Cable length: 0.3 m
Cable characteristic: Suitable for energy chains/robot applications
Color cable sheath: Gray
Material of cable sheath: TPE-U(PU)
Type of mounting: Clamped in round slot - Can be inserted in slot lengthwise
Max. tightening torque: 0.6 Nm
Mounting position: Any
Product weight: 10 g
Switching status indication: LED yellow
Suitability for the production of Li-ion batteries: Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
Cleanroom class: Class 4 according to ISO 14644-1
