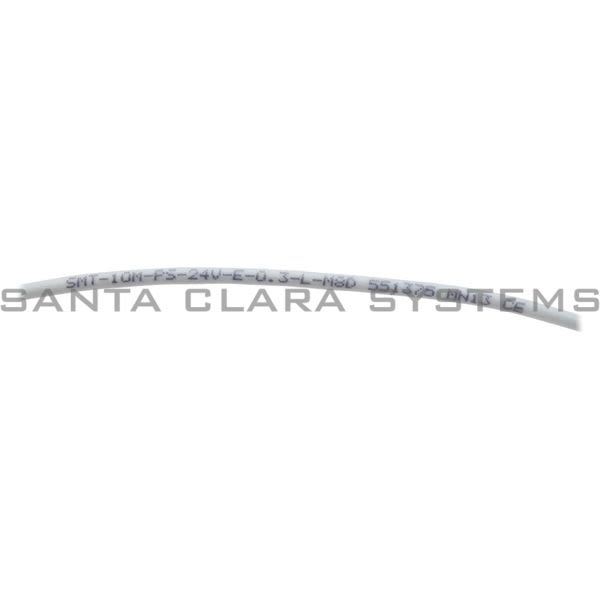

• Festo SMT-10M-PS-24V-E-0,3-L-M8D Proximity Sensor Product Image

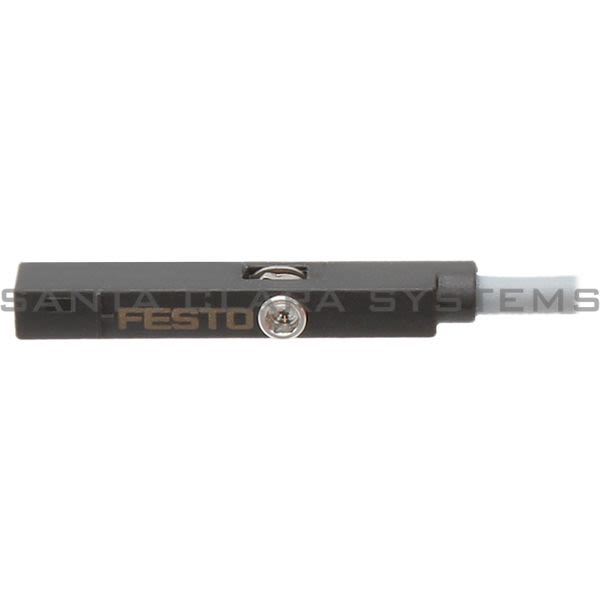

  • Festo SMT-10M-PS-24V-E-0,3-L-M8D Proximity Sensor Product Image

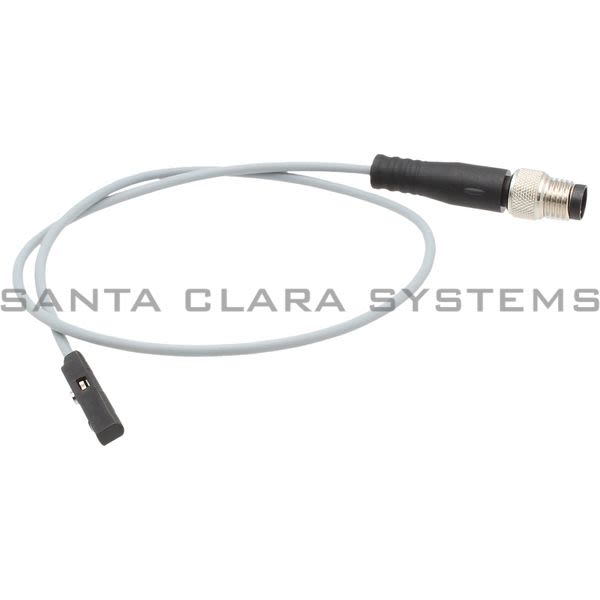

  • Festo SMT-10M-PS-24V-E-0,3-L-M8D Proximity Sensor Product Image

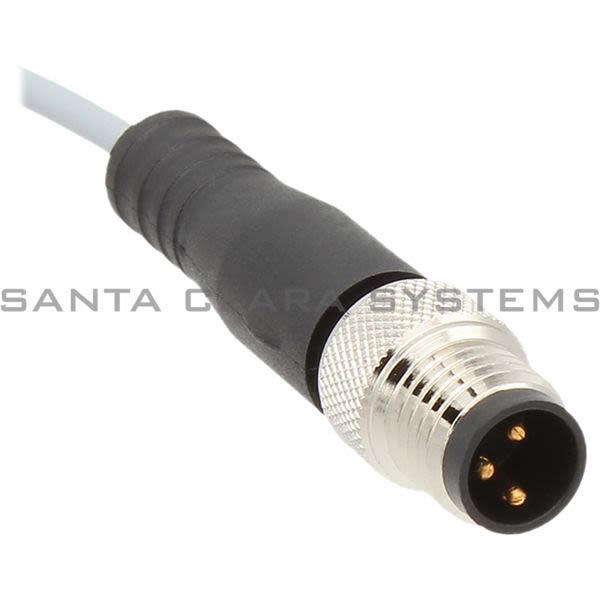

  • Festo SMT-10M-PS-24V-E-0,3-L-M8D Proximity Sensor Product Image
  • Festo SMT-10M-PS-24V-E-0,3-L-M8D Barcode

SMT-10M-PS-24V-E-0-3-L-M8D

Get a Quote

Current response time:

12 Minutes 56 Seconds
  • Description: Proximity Sensor
  • Ambient temperature: -40 °C ... 70 °C
  • Design: For round slot
  • Special features: Oil-resistant
  • Measuring principle: Magneto-resistive
  • Cable length: 0.3 m
  • Suitability for the production of Li-ion batteries: Metals with more than 1% by mass of copper, zinc or nickel are excluded from use.The exceptions are nickel in steel, chemically nickel-plated surfaces, circuit boards, cables, electrical plug connectors and coils
  • Mounting position: Any
  • Cable characteristic: Suitable for energy chains/robot applications
  • Electrical connection 1, connection type: Cable with plug
  • Electrical connection 1, type of mounting: Screw-type lock - rotatable
  • Conforms to standard: EN 60947-5-2
  • Symbol: 00991153
  • Certification: RCM compliance mark
  • CE marking (see declaration of conformity): As per EU EMC directive As per EU RoHS directive
  • UKCA marking (see declaration of conformity): To UK instructions for EMC To UK RoHS instructions
  • Application note: Https://www.festo.com/Drive-Sensor-Overview
  • Measured variable: Position
  • Repetition accuracy: 0.2 mm
  • Switching output: PNP
  • Switching element function: N/O contact
  • On time: ≤1.3 ms
  • Switch-off time: 4.2 ms ... 7.3 ms
  • Max. switching frequency: 130 Hz
  • Max. output current: 100 mA
  • Max. output current in mounting kits: 50 mA
  • Max. switching capacity DC: 2.8 W
  • Max. switching capacity DC in mounting kits: 1.5 W
  • Voltage drop: ≤1.7 V
  • Residual current: <0.05 mA
  • Short-circuit protection: Yes
  • Overload protection: Available
  • Rated operating voltage DC: 24 V
  • DC operating voltage range: 5 V ... 30 V
  • Residual ripple: 10 %
  • Reverse polarity protection: For all electrical connections
  • Electrical connection 1, connection technology: M8x1 A-coded as per EN 61076-2-104
  • Electrical connection 1, number of pins/wires: 3
  • Electrical connection for input 1, connection pattern: 00991155
  • Connection outlet orientation: Longitudinal
  • Material of pin contacts: Brass, gold-plated
  • Material of plug housing: Brass, nickel-plated
  • Connector cable test conditions: Flexural strength: as per Festo standard Test conditions on request Torsion resistance: > 300,000 cycles, ±270°/0.1 m Energy chain > 5 million cycles, bending radius 28 mm
  • Color cable sheath: Gray
  • Material of cable sheath: TPE-U(PUR)
  • Insulating sheath material: PP
  • Type of mounting: Screwed tightly Can be inserted in slot from above
  • Max. tightening torque: 0.4 Nm
  • Product weight: 6.7 g
  • Housing colour: Black
  • Housing material: PA-reinforced High-alloy stainless steel
  • Switching status indication: LED yellow
  • Ambient temperature with flexible cable installation: -20 °C ... 70 °C
  • Degree of protection: IP65 IP68
  • LABS (PWIS) conformity: VDMA24364-B2-L
  • Cleanroom class: Statically installed element, no meaningful evaluation possible according to ISO 14644-1
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on SMT-10M-PS-24V-E-0-3-L-M8D . Santa Clara Systems carries 7,168 items from Festo.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
