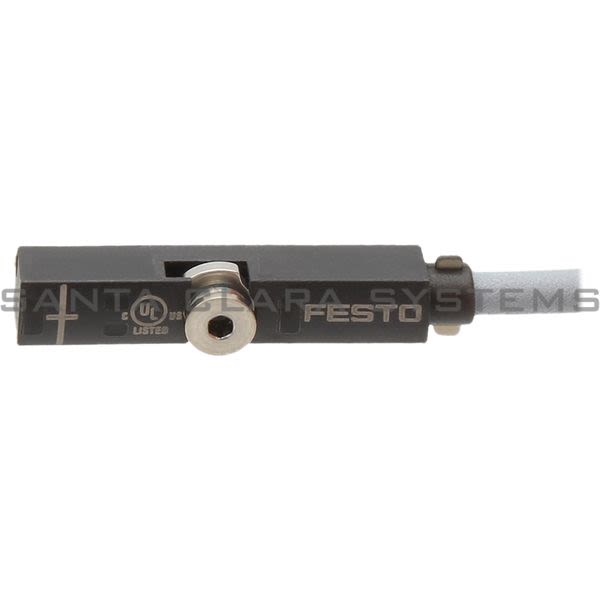

SMT-8M-A-PS-24V-E-0-3-M8D

Festo - Proximity Sensor

Current response time:

By 5AM PT on Monday

Emergency?

Description: Proximity Sensor

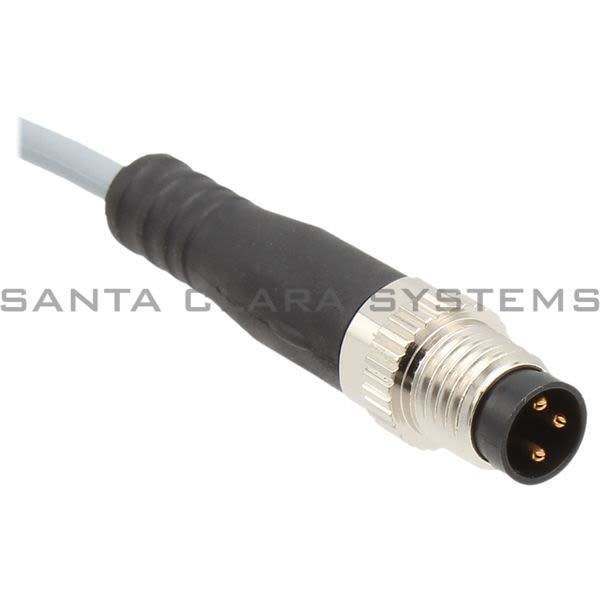

Electrical connection 1, connection technology: M8x1 A-coded as per EN 61076-2-104
DC operating voltage range: 5 V - 30 V
Switching element function: N/O contact
Switching output: PNP
Design: For T-slot
Based on norm: EN 60947-5-2
Symbol: 00991153
Certification: RCM compliance mark, c UL us - Listed (OL)
CE marking (see declaration of conformity): As per EU EMC directive, As per EU RoHS directive
UKCA marking (see declaration of conformity): To UK instructions for EMC, To UK RoHS instructions
Certificate issuing authority: UL E232949
Special features: Oil-resistant
Application note: Https://www.festo.com/Drive-Sensor-Overview
Measured variable: Position
Measuring principle: Magneto-resistive
Mbient temperature: -40 °C ... 85 °C
Repetition accuracy: 0.2 mm
On time: ≤1.3 ms
Switch-off time: ≤7.3 ms
Max. switching frequency: 130 Hz
Max. output current: 100 mA
Max. output current in mounting kits: 100 mA
Max. switching capacity DC: 2.8 W
Max. switching capacity DC in mounting kits: 2.8 W
Voltage drop: <1.5 V
Short-circuit protection: Yes
Overload protection: Available
Rated operating voltage DC: 24 V

Reverse polarity protection: For all electrical connections

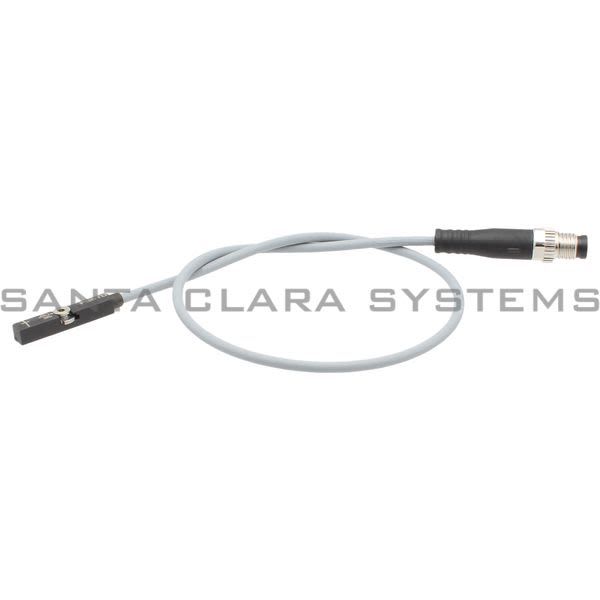

Electrical connection 1, connection type: Cable with plug
Electrical connection 1, number of pins/wires: 3
Electrical connection 1, type of mounting: Screw-type lock, rotatable
Electrical connection for input 1, connection pattern: 00991155
Connection outlet orientation: Longitudinal
Material of pin contacts: Copper alloy, gold-plated
Material of plug housing: TPE-U(PU)
Material of screw-type lock: Brass, nickel-plated
Connector cable test conditions: Test conditions on request Torsion resistance: > 300,000 cycles, ±270°/0.1 m Flexural strength: > 50000 cycles, bending radius 5 mm Energy chain > 5 million cycles, bending radius 28 mm

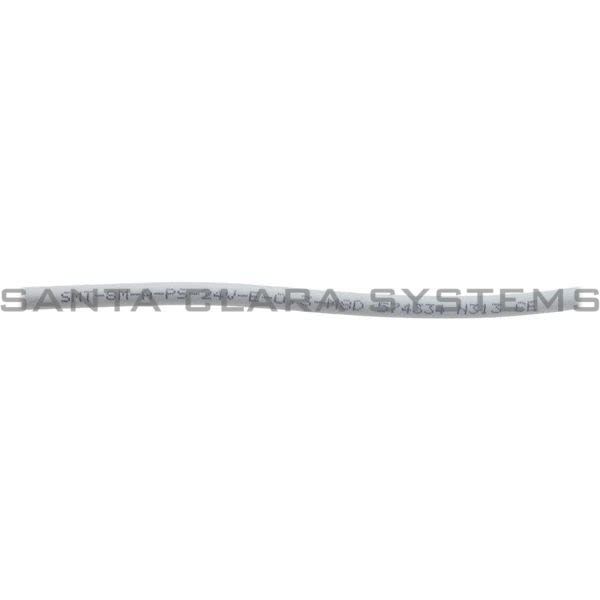

Cable length: 0.3 m
Cable characteristic: Suitable for energy chains/robot applications
Color cable sheath: Gray
Material of cable sheath: TPE-U(PUR)
Insulating sheath material: PP
Type of mounting: Screwed tightly Can be inserted in slot from above
Max. tightening torque: 0.6 Nm
Mounting position: Any
Product weight: 8.9 g
Housing colour: Black
Housing material: PA-reinforced High-alloy stainless steel
Material of union nut: Brass, nickel-plated
Switching status indication: LED yellow
Function reserve indication: LED orange
Ambient temperature with flexible cable installation: -20 °C ... 85 °C
Degree of protection: IP65 IP68 IP69K
LABS (PWIS) conformity: VDMA24364-B2-L
Suitability for the production of Li-ion batteries: Metals with more than 1% by mass of copper, zinc or nickel are excluded from use.The exceptions are nickel in steel, chemically nickel-plated surfaces, circuit boards, cables, electrical plug connectors and coils
Cleanroom class: Statically installed element, no meaningful evaluation possible according to ISO 14644-1
