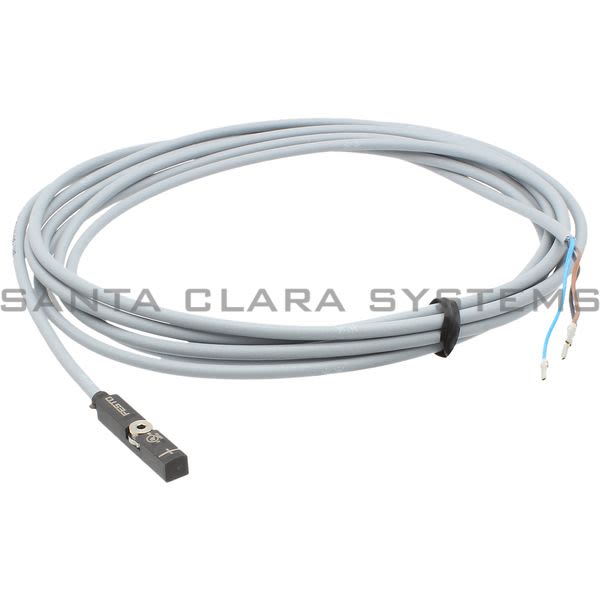

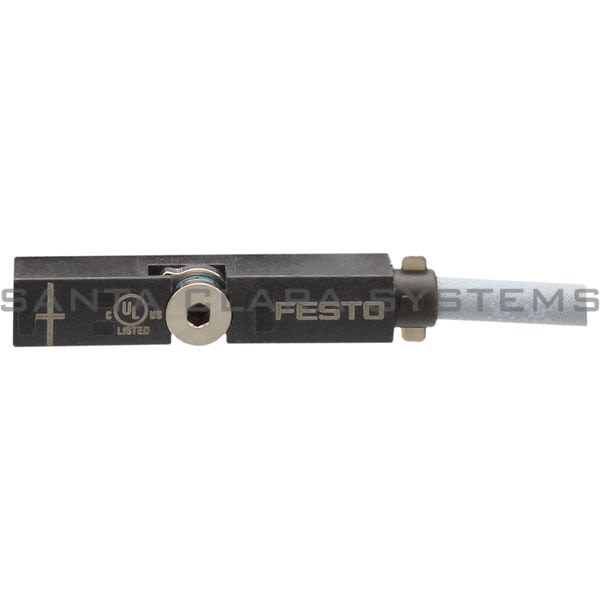

• Festo SMT-8M-A-PS-24V-E-2,5-OE Proximity Sensor Product Image
  • Festo SMT-8M-A-PS-24V-E-2,5-OE Proximity Sensor Product Image
  • Festo SMT-8M-A-PS-24V-E-2,5-OE Proximity Sensor Product Image
  • Festo SMT-8M-A-PS-24V-E-2,5-OE Proximity Sensor Product Image
  • Festo SMT-8M-A-PS-24V-E-2,5-OE Barcode

SMT-8M-A-PS-24V-E-2-5-OE

Product Summary:

  • Ambient temperature: -40 C ...85 C
  • Type code: SMT
  • Electrical connection 1 connection technology: Open end
  • Electrical connection 1 connection type: Cable
  • KC characters: KC EMC
Get a Quote

Current response time:

12 Minutes 10 Seconds
  • Description: Proximity Sensor
  • Ambient temperature: -40 C ...85 C
  • Type code: SMT
  • Electrical connection 1 connection technology: Open end
  • Electrical connection 1 connection type: Cable
  • KC characters: KC EMC
  • Repetition accuracy: 0.2 mm

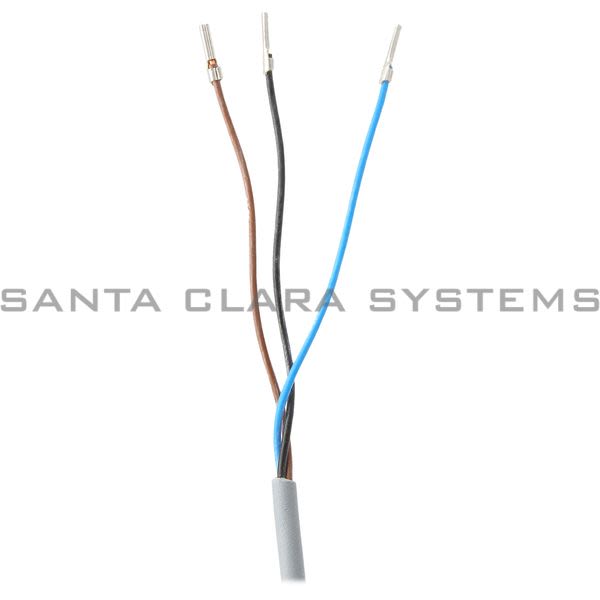

  • Electrical connection 1 number of pins/wires: 3
  • Design: for T-slot
  • Based on norm: EN 60947-5-2
  • Symbol: 991152
  • Certification: c UL us - Listed (OL) RCM compliance mark
  • CE marking (see declaration of conformity): As per EU EMC directive As per EU RoHS directive
  • Special features: Oil-resistant
  • Measured variable: Position
  • Measuring principle: Magneto-resistive
  • Switching output: PNP
  • Switching element function: N/O contact
  • On time: 1.3 ms
  • Switch-off time: 1.4 ms
  • Max. switching frequency: 180 Hz
  • Max. output current: 100 mA
  • Max. output current in mounting kits: 100 mA
  • Max. switching capacity DC: 2.8 W
  • Max. switching capacity DC in mounting kits: 2.8 W
  • Voltage drop: < 1.5 V
  • Short-circuit protection: yes
  • Overload protection: Available
  • Rated operating voltage DC: 24 V
  • DC operating voltage range: 5 V ...30 V
  • Reverse polarity protection: for all electrical connections
  • Connection outlet orientation: Longitudinal

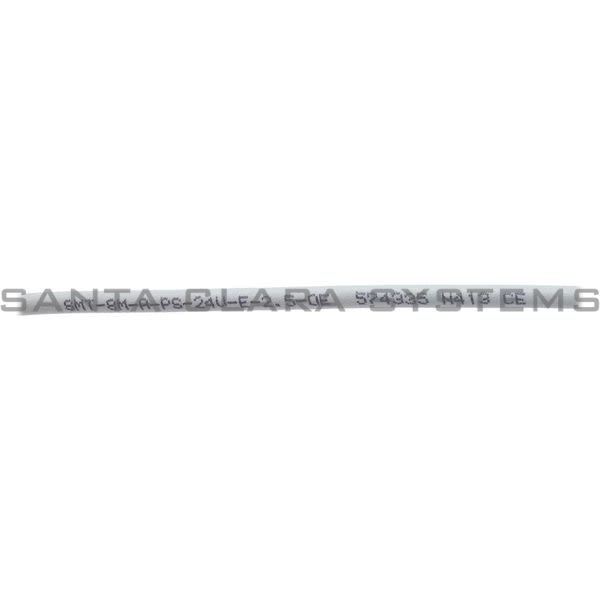

  • Cable length: 2.5 m
  • Cable characteristic: Suitability for energy chains/robot applications
  • Color cable sheath: Gray
  • Material of cable sheath: TPE-U(PUR)
  • Type of mounting: Screwed tightly Can be inserted in slot from above
  • Max. tightening torque: 0.6 Nm
  • Mounting position: Any
  • Product weight: 29.1 g
  • Housing colour: Black
  • Housing material: PA-reinforced High-alloy stainless steel
  • Switching status indication: LED yellow
  • Function reserve indication: LED orange
  • Ambient temperature with flexible cable installation: -20 C ... 85 C
  • Degree of protection: IP65 IP69K IP68
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on SMT-8M-A-PS-24V-E-2-5-OE . Santa Clara Systems carries 1,027 items from Festo.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
