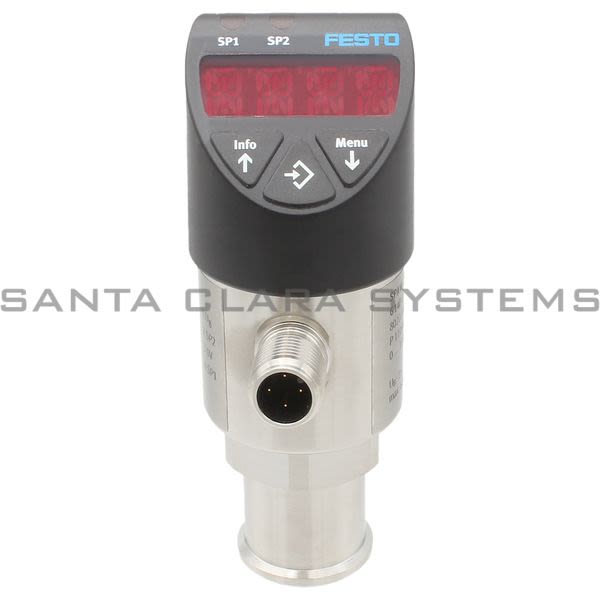

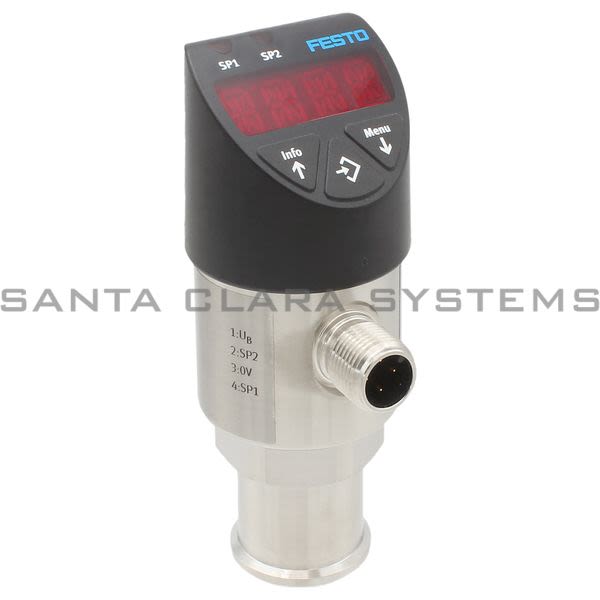

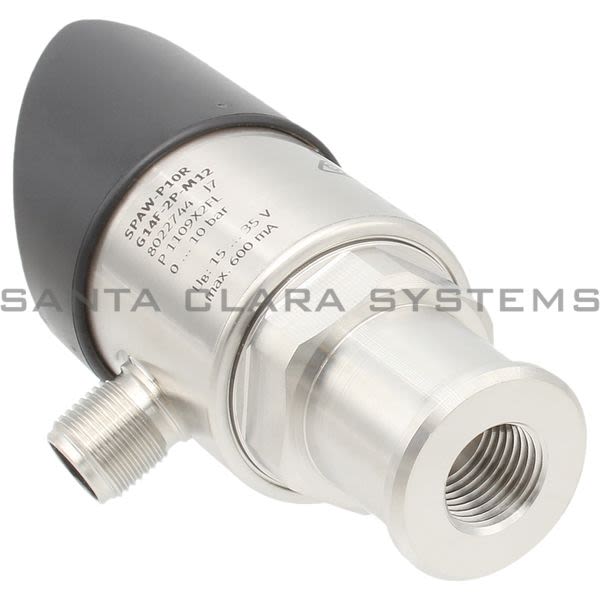

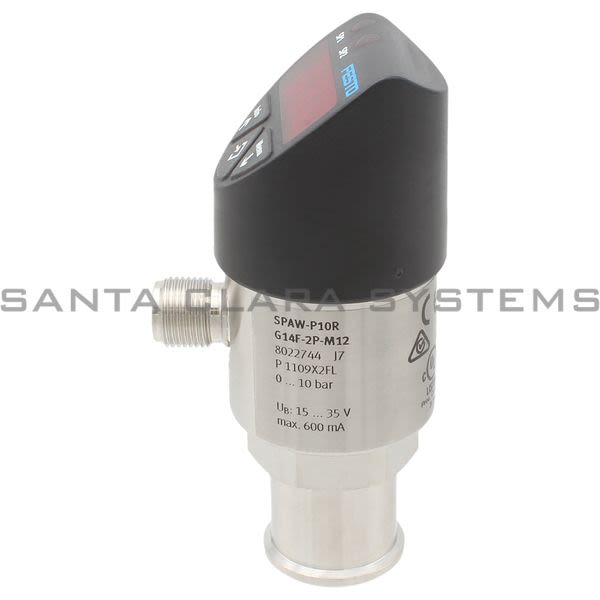

SPAW-P10R-G14F-2P-M12

Festo - Pressure Sensor

Product Summary:

Ambient temperature: 0 °C ... 80 °C
Pressure measuring range initial value: 0 bar - 0 psi - 0 MPa
Pressure measuring range end value: 10 bar - 1 MPa - 145 psi
Switching element function: Switchable
Pneumatic connection: Internal thread G1/4

Current response time:

7 Minutes 7 Seconds

Description: Pressure Sensor
Ambient temperature: 0 °C ... 80 °C
Pressure measuring range initial value: 0 bar - 0 psi - 0 MPa
Pressure measuring range end value: 10 bar - 1 MPa - 145 psi
Switching element function: Switchable
Pneumatic connection: Internal thread G1/4
Symbol: 00991165
Measured variable: Relative pressure
Method of measurement: Metal thin-film pressure sensor
Overload pressure: 2 MPa - 20 bar - 290 psi
Operating medium: Liquid media, Gaseous media
Temperature of medium: -20 °C ... 85 °C
Accuracy in ± % FS: 1 %FS
Repetition accuracy in ± %FS: 0.15 %FS
Switching output: 2xPNP
Switching function: Freely programmable
Max. output current: 250 mA
Rise time: 3 ms
Short-circuit protection: Yes

DC operating voltage range: 15 V ... 35 V
Reverse polarity protection: For operating voltage
Electrical connection 1, connection type: Plug
Electrical connection 1, connection technology: M12x1 A-coded as per EN 61076-2-101
Electrical connection 1, number of pins/wires: 4
Electrical connection 1, type of mounting: Screw-type lock, not rotatable
Electrical connection for input 1, connection pattern: 00995386
Type of mounting: With internal thread, With accessories
Mounting position: Any
Product weight: 230 g
Housing material: High-alloy stainless steel
Display type: 4-character alphanumeric, LED display
Displayable unit(s): MPa - bar - kPa - kg/cm² - psi
Switching status indication: LED red
Setting options: Via display and pushbuttons
Protection against tampering: PIN code
Corrosion resistance class (CRC): 4 - Particularly high corrosion stress
Degree of protection: IP65 - IP67
LABS (PWIS) conformity: VDMA24364 zone III
