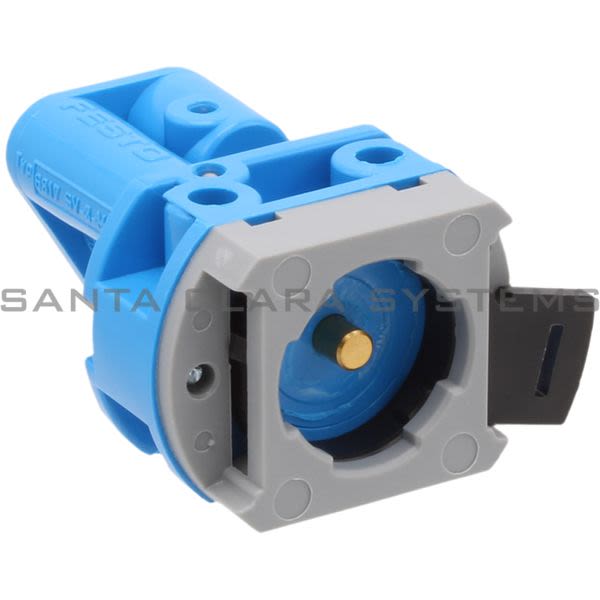

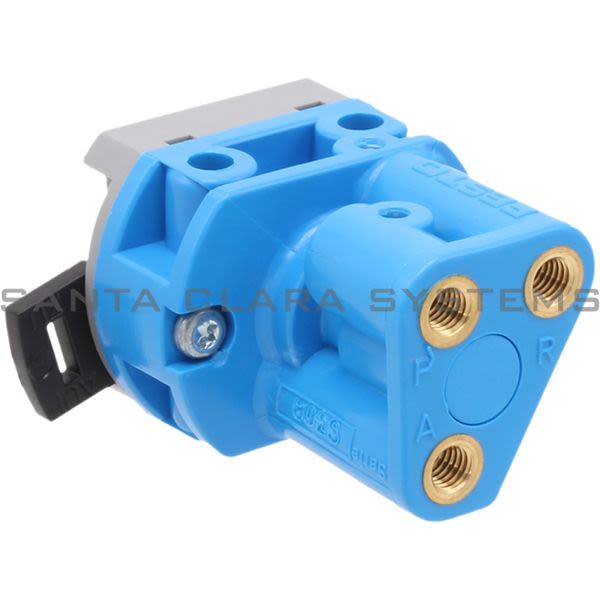

- Description: Front Panel Valve
- Ambient temperature: -10 °C ... 60 °C
- Valve function: 3/2, closed, monostable
- Actuation type: Manual
- Standard nominal flow rate: 65 l/min
- Operating pressure: -0.095 MPa ... 0.8 MPa
- Structural design: Poppet valve with return spring
- Reset method: Mechanical spring
- Nominal width: 2 mm
- Sealing principle: Soft
- Mounting position: Any
- Type of control: Direct
- Flow direction: Non-reversible
- Symbol: 00991292
- Lap: Overlap
- Explosion prevention and protection: Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX)
- Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
- LABS (PWIS) conformity: VDMA24364-B1/B2-L
- Actuating force: 12 N
- Product weight: 40 g
- Type of mounting: Front panel mounting With through-hole
- Pneumatic connection 1: M5
- Seals material: NBR
- Housing material: Polymer Brass
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on SV-3-M5 . Santa Clara Systems carries 9,543 items from Festo.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
