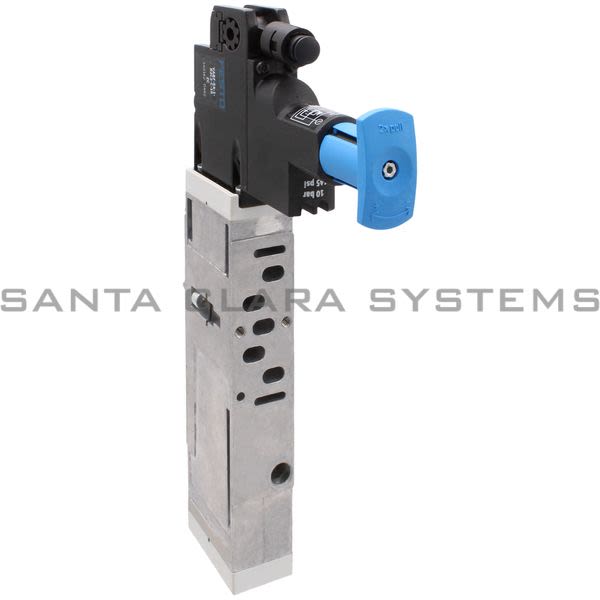

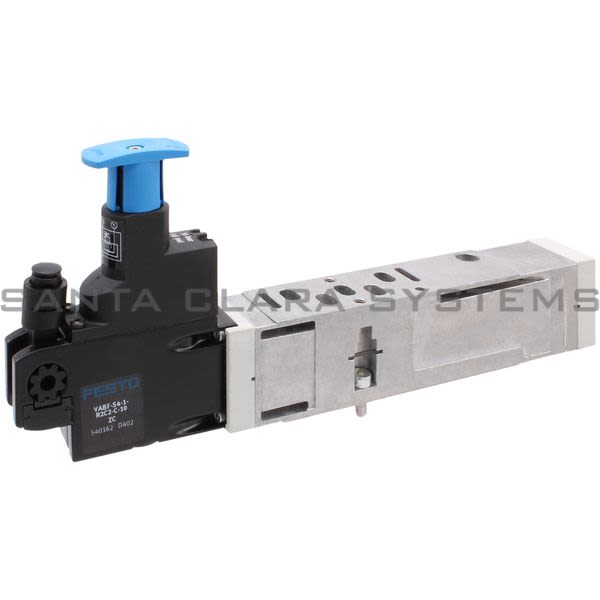

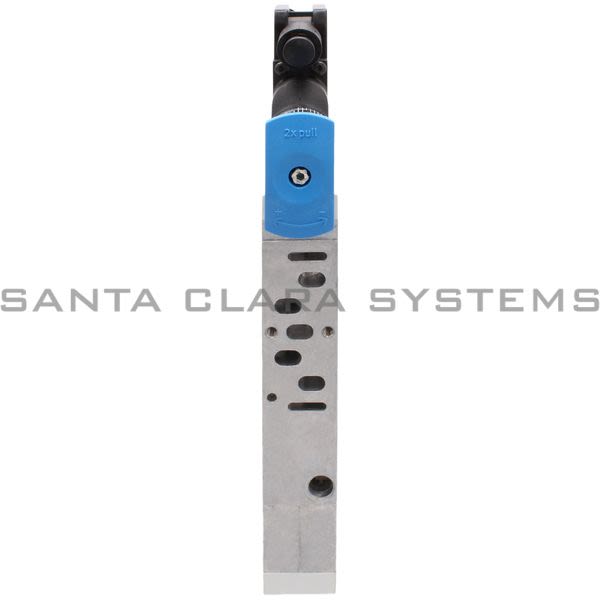

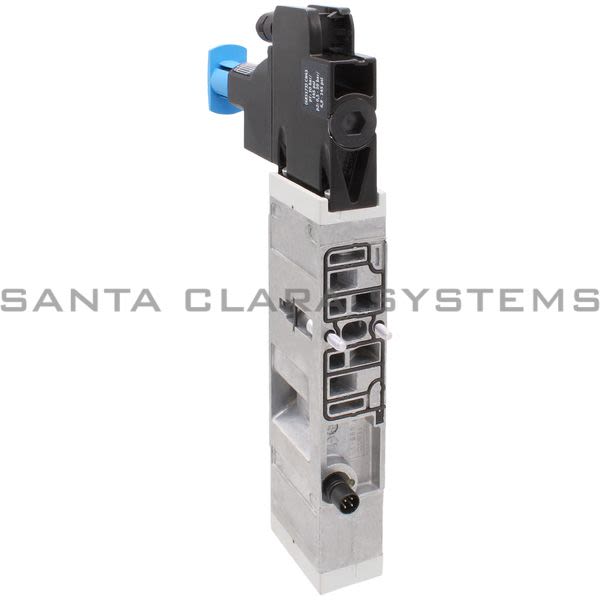

- Description: Regulator Plate
- Width: 26 mm
- Ambient temperature: -5 °C ... 50 °C
- Based on norm: ISO 15407-2
- Mounting position: Any
- Controller function: Outlet pressure constant With secondary exhausting
- Symbol: 00991581
- Optional pressure gauge: Possible
- Operating pressure: 1 MPa, 10 bar
- Pressure regulation range MPa: 0.2 MPa ... 0.85 MPa
- Pressure regulation range: 2 bar ... 8.5 bar
- Pressure regulation range psi: 29 psi ... 123.25 psi
- Inlet pressure 1: 0.5 bar ... 10 bar
- CE marking (see declaration of conformity): As per EU low voltage directive
- UKCA marking (see declaration of conformity): To UK instructions for electrical equipment
- Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC): 0 - No corrosion stress
- LABS (PWIS) conformity: VDMA24364-B1/B2-L
- Degree of protection: IP65 NEMA 4
- Pilot medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
- Vertical stacking mounting type: On manifold sub-base On individual sub-base
- Pressure gauge connection: With retaining clamp
- Material of operator panel: PA
- Controller housing material: Die-cast aluminum
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on VABF-S4-1-R2C2-C-10 . Santa Clara Systems carries 9,543 items from Festo.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
