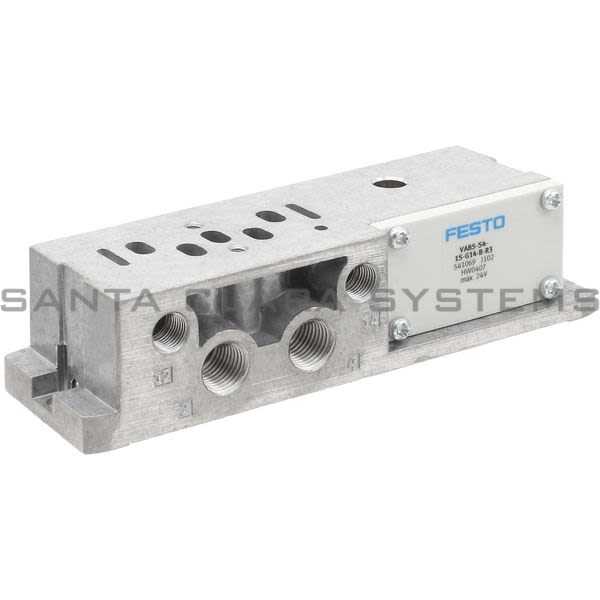

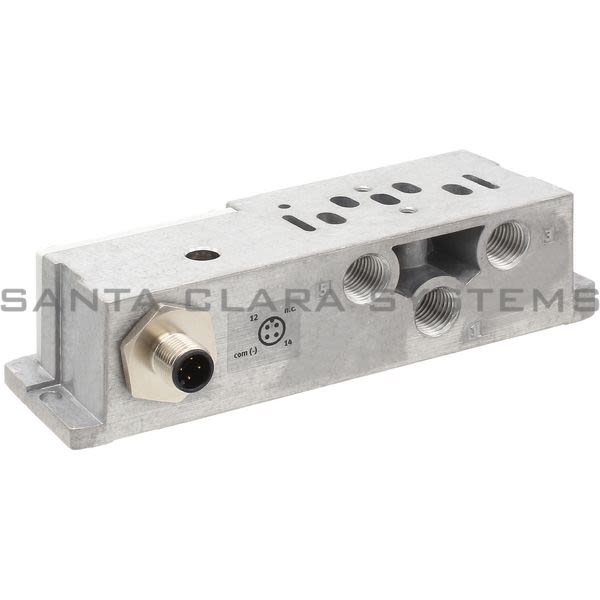

VABS-S4-1S-G14-B-R3

Festo - Sub-Base

Current response time:

By 5AM PT on Monday

Emergency?

Description: Sub-Base
Width: 26 mm
Ambient temperature: -5 °C ... 50 °C
Mounting position: Any
Pilot air supply port: Internal
Based on norm: ISO 15407-2
VABS-S4-1S-G14-B-R3: Internal
Operating pressure: -0.09 MPa ... 1 MPa, -0.9 bar ... 10 bar
DC operating voltage range: 24 V
Surge resistance: 0.8 kV
Current rating at 40° C: 2 A
Contamination level: 3
CE marking (see declaration of conformity): As per EU EMC directive as per EU explosion protection directive (ATEX) As per EU RoHS directive
UKCA marking (see declaration of conformity): To UK instructions for EMC acc. to UK EX instructions To UK RoHS instructions

Explosion protection certification outside the EU: EPL Gc (GB)
Explosion prevention and protection: Zone 2 (ATEX) Zone 2 (UKEX)
ATEX category gas: II 3G
Type of ignition protection for gas: Ex ec IIC T3 Gc X
Explosion group of assembly: IIC
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 0 - No corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Max. surface temperature of assembly: T3
Degree of protection: IP65 NEMA 4 In mounted state
Product weight: 302 g
Type of mounting: With through-hole as per ISO 15407-2
Material of sub-base: Die-cast aluminum
