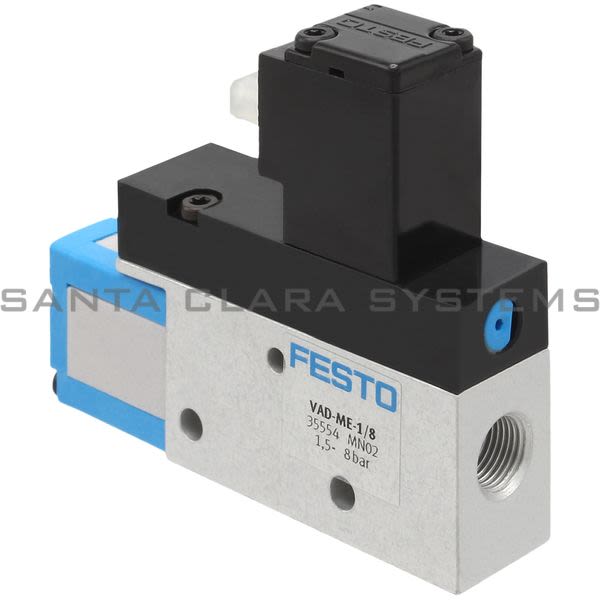

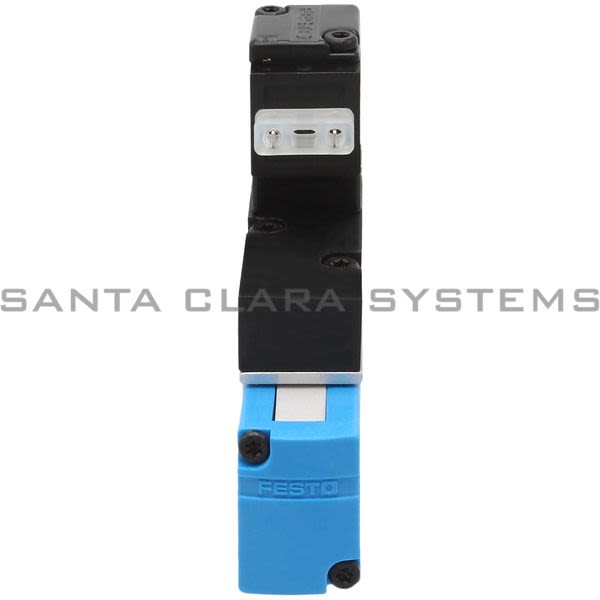

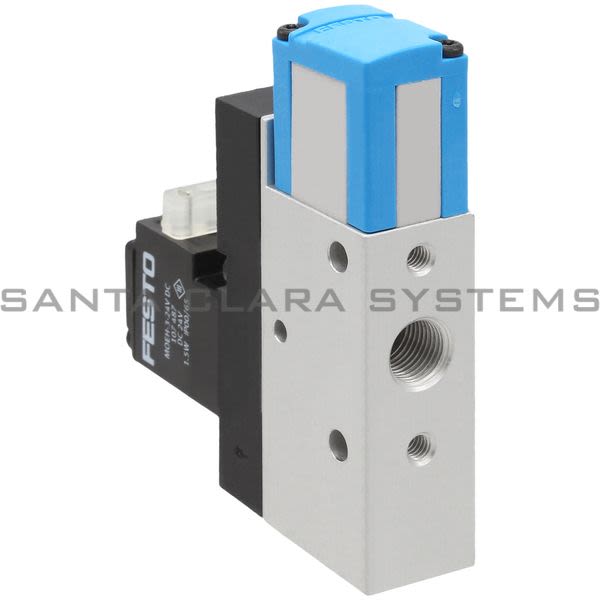

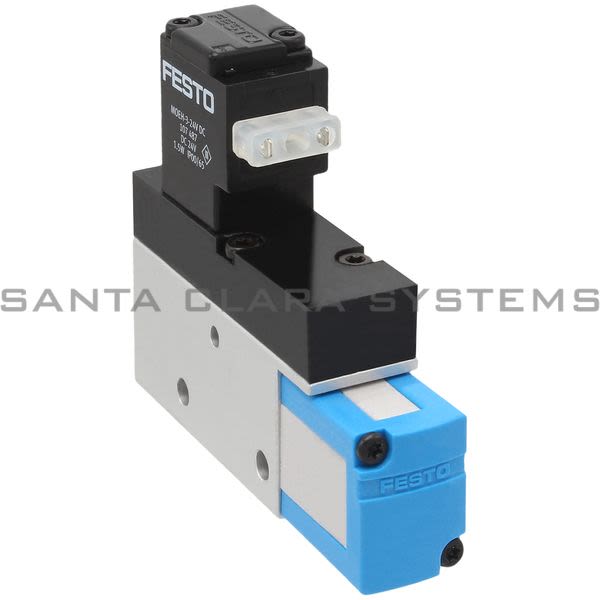

- Description: Vacuum Generator
- Ambient temperature: 0 °C ... 40 °C
- Electrical connection: Plug
- Nominal width of Laval nozzle: 0.95 mm
- Mounting position: Any
- Ejector characteristics: High vacuum
- Integrated function: Shut off valve, electric
- Structural design: T-shape
- Symbol: 00991492
- Operating pressure: 1.5 bar ... 8 bar
- Max. vacuum: 85 %
- Duty cycle: 100%
- Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media: Operation with oil lubrication not possible
- LABS (PWIS) conformity: VDMA24364-B2-L
- Temperature of medium: 0 °C ... 40 °C
- Degree of protection: IP65
- Product weight: 123 g
- Type of mounting: With internal thread
- Pneumatic connection 1: G1/8
- Vacuum connection: G1/8
- Housing material: Aluminum
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on VAD-ME-1-8 . Santa Clara Systems carries 7,168 items from Festo.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
