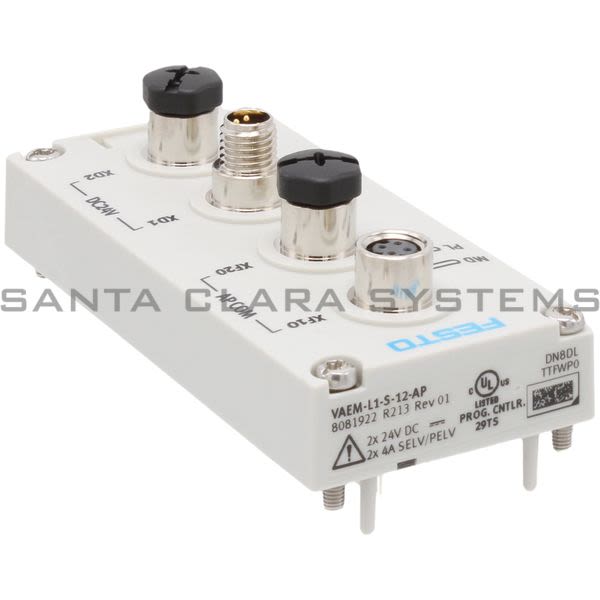

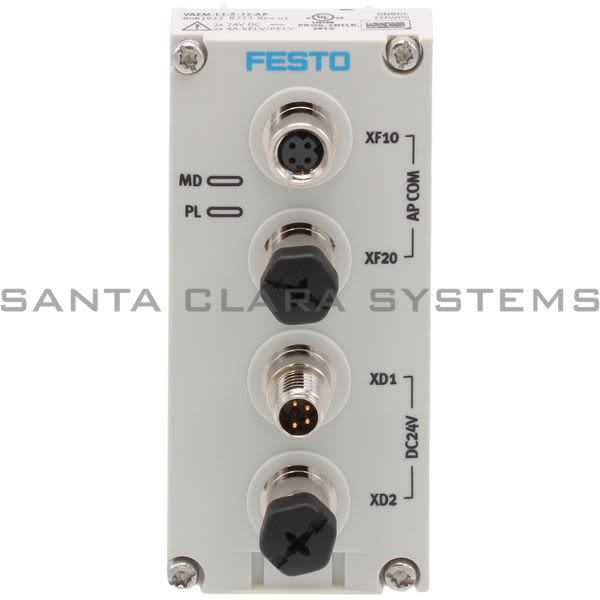

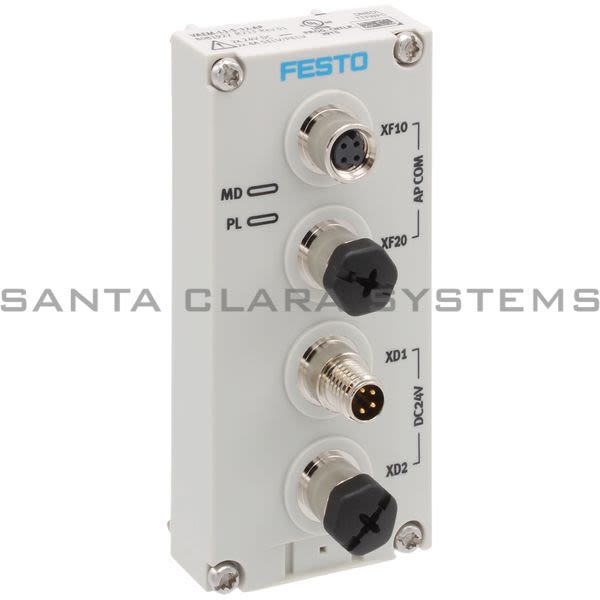

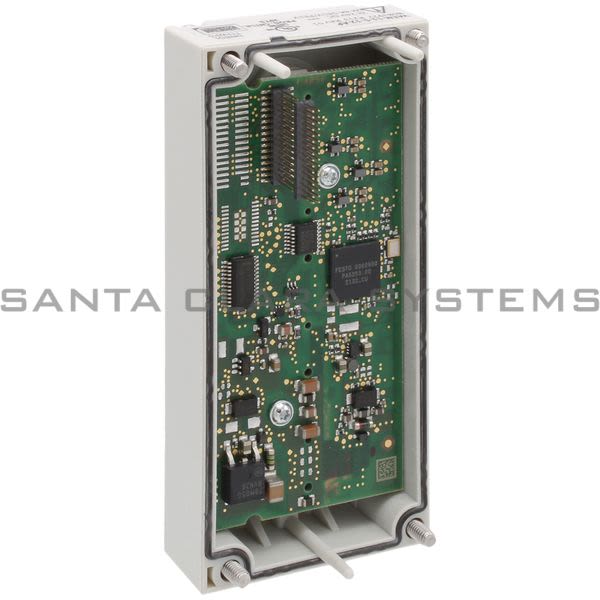

VAEM-L1-S-12-AP
Product Summary:
- Ambient temperature: -5 °C ... 60 °C
- Dimensions W x L x H: 42 mm x 91 mm x 30 mm
- Connection position: Top
- Diagnostics via LED: Diagnostics per module, Load power supply
- Max. no. of valve positions: 12
Get a Quote
Current response time:
15 Minutes 46 Seconds
- Description: Electrical Interface
- Ambient temperature: -5 °C ... 60 °C
- Dimensions W x L x H: 42 mm x 91 mm x 30 mm
- Connection position: Top
- Diagnostics via LED: Diagnostics per module, Load power supply
- Diagnose per internal communication: Electronics/sensors overvoltage Load overvoltage Electronics/sensors undervoltage Load undervoltage
- Max. no. of valve positions: 12
- Max. no. of solenoid coils: 24
- Reverse polarity protection: Yes
- Module parameters: Configuration of voltage monitoring, load supply PL Response in error state
- Fuse protection (short circuit): Internal electronic fuse per channel
- Intrinsic current consumption at nominal operating voltage for electronics/sensors: Typically 34 mA
- Intrinsic current consumption at nominal operating voltage load: Typically 16 mA
- Nominal operating voltage DC for electronics/sensors: 24 V
- Nominal operating voltage DC load: 24 V
- Power failure buffering: 10 ms
- Power failure buffering of load: 3 ms
- Permissible voltage fluctuations for electronics/sensors: ± 25 %
- Permissible voltage fluctuations load: ± 10%
- Max. power supply: 2 x 4 A (external fuse required)
- Power supply, function: Incoming electronics/sensors and load
- Power supply, type of connection: Plug
- Power supply, connection technology: M8x1, A-coded as per EN 61076-2-104
- Power supply, number of pins/wires: 4
- Voltage forwarding, function: Outgoing electronics/sensors and load
- Voltage forwarding, connection type: Socket
- Voltage forwarding, connection technology: M8x1, A-coded as per EN 61076-2-104
- Voltage forwarding, number of pins/wires: 4
- Communication interface, connection type: 2x socket
- Communication interface, connection technology: M8x1, D-coded as per EN 61076-2-114
- Communication interface, number of pins/wires: 4
- Communication interface, function: System communication XF10 IN / XF20 OUT
- Communication interface, protocol: AP-COM
- Communication interface, shielding: Yes
- CE marking (see declaration of conformity): As per EU EMC directive
- UKCA marking (see declaration of conformity): To UK instructions for EMC
- KC characters: KC EMC
- Max. cable length: 50 m system communication
- Corrosion resistance class (CRC): 2 - Moderate corrosion stress
- LABS (PWIS) conformity: VDMA24364-B1/B2-L
- Storage temperature: -20 °C ... 60 °C
- Relative air humidity: 5 - 95 % Non-condensing
- Protection against direct and indirect contact: PELV SELV
- Note regarding operating voltage: SELV/PELV fixed power supplies required Note voltage drop
- Degree of protection: IP65 IP67
- Note on degree of protection: In mounted state Unused connections sealed
- Certification: RCM compliance mark c UL us - Recognized (OL)
- Nominal altitude of use above sea level: <= 2000 m NHN
- Type of mounting: Screwed tightly
- Housing material: PA-reinforced
- Threaded sleeve material: Brass, nickel-plated
- Note on materials: RoHS-compliant
