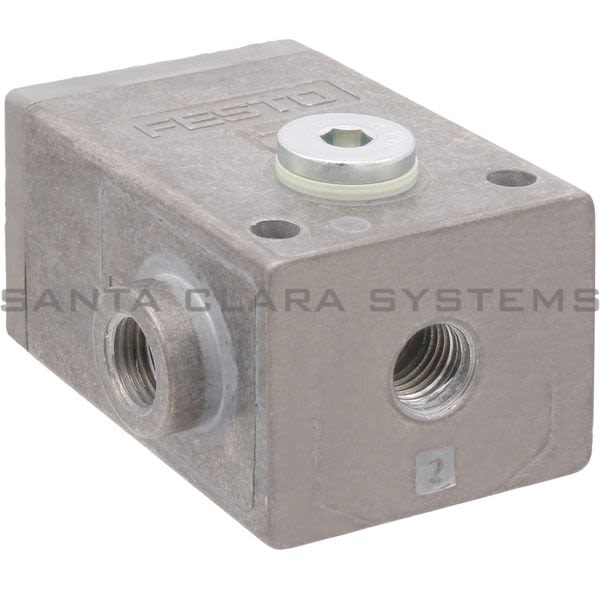

• Festo VAK-1/4 Vacuum Generator Product Image

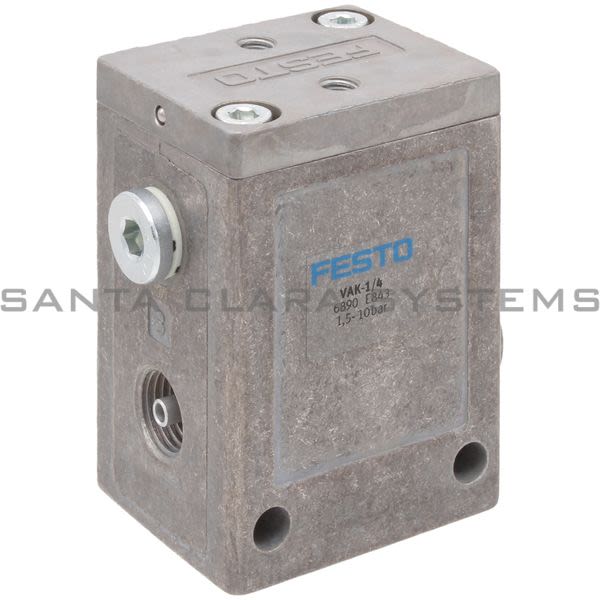

  • Festo VAK-1/4 Vacuum Generator Product Image

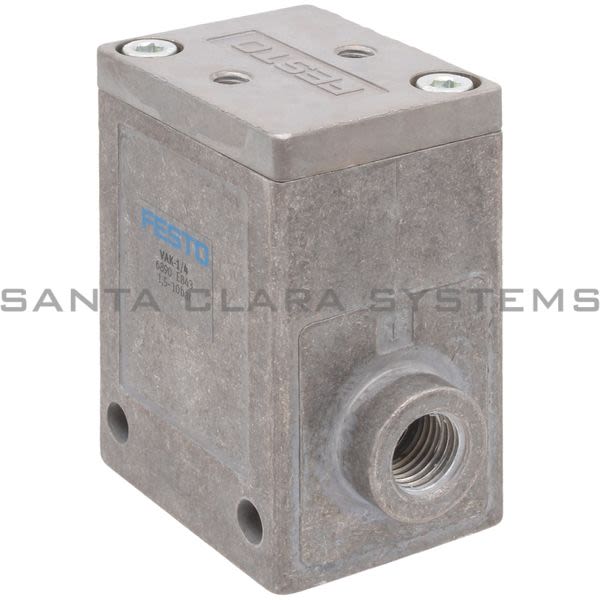

  • Festo VAK-1/4 Vacuum Generator Product Image
  • Festo VAK-1/4 Barcode

VAK-1-4

Get a Quote

Current response time:

7 Minutes 32 Seconds
  • Description: Vacuum Generator
  • Ambient temperature: -20 C ... 80 C
  • Nominal width of Laval nozzle: 1 mm
  • Mounting position: Any
  • Ejector characteristics: High vacuum
  • Integrated function: Ejector pulse, pneumatic
  • Structural design: T-shape
  • Symbol: 00991484
  • Operating pressure: 21.75 psi ... 145 psi
  • Max. vacuum: 80 %
  • Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
  • Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
  • LABS (PWIS) conformity: VDMA24364-B1/B2-L
  • Temperature of medium: -20 C ... 80 C
  • Type of mounting: With through-hole
  • Pneumatic connection 1: G1/4
  • Pneumatic connection 3: G1/4
  • Vacuum connection: G1/4
  • Housing material: Die-cast aluminum
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on VAK-1-4 . Santa Clara Systems carries 5,560 items from Festo.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
