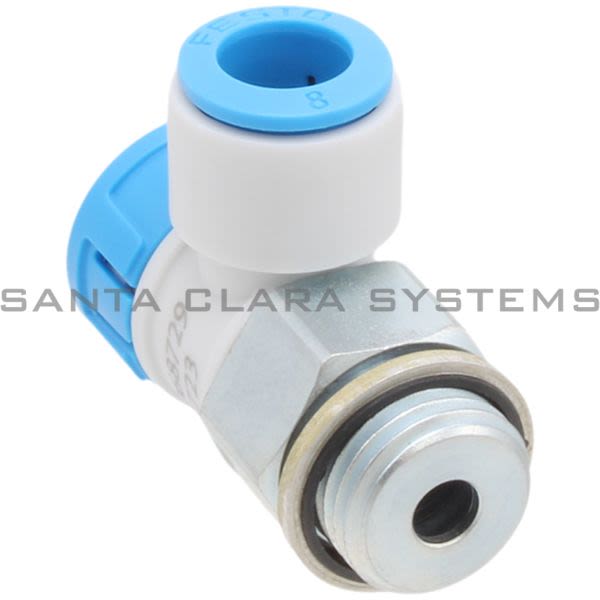

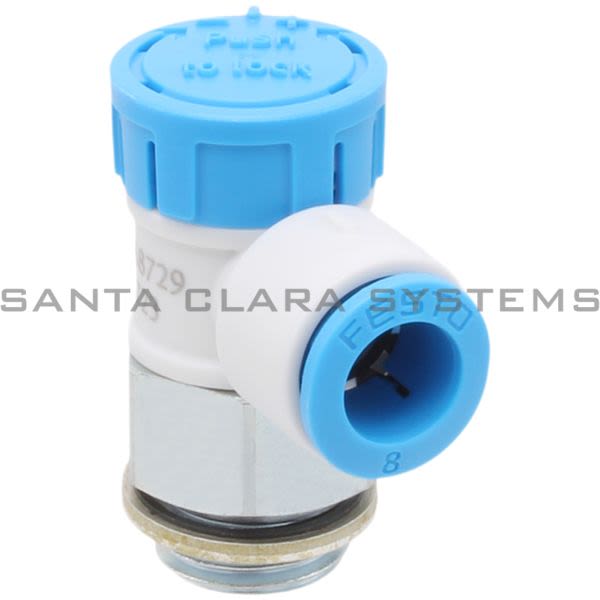

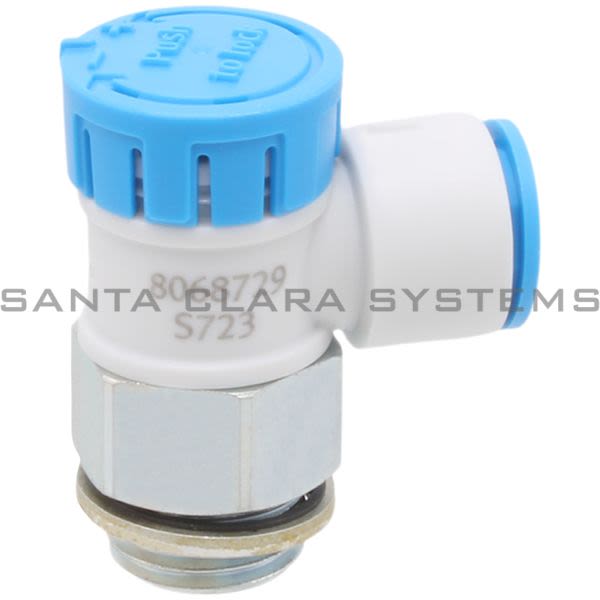

- Description: One-Way Flow Control Valve
- Ambient temperature: -10 °C ... 60 °C
- Valve function: Exhaust air flow control non-return function
- Pneumatic connection 1: QS-8
- Pneumatic connection 2: G¼
- Actuation type: Manual
- Adjusting element: Rotary knob with detent
- Type of mounting: Screw-in
- Standard nominal flow rate in flow control direction: 500 l/min
- Standard nominal flow rate in non-return direction: 370 l/min ... 500 l/min
- Housing material: PBT
- Explosion prevention and protection: Observe the information on the certificate Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX)
- Mounting position: Any
- Symbol: 00991452
- Width across flats: 16 mm
- Rotatability: 360 deg/continuous swiveling not permissible
- Operating pressure for entire temperature range MPa: 0.02 MPa ... 1 MPa
- Operating pressure for entire temperature range: 0.2 bar ... 10 bar
- Standard flow rate in flow control direction 6 -> 0 bar: 810 l/min
- Standard flow rate in non-return direction at 6 -> 0 bar: 750 l/min ... 900 l/min
- Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
- LABS (PWIS) conformity: VDMA24364 zone III
- Cleanroom class: Class 4 according to ISO 14644-1
- Temperature of medium: -10 °C ... 60 °C
- Max. tightening torque: 12 Nm
- Nominal tightening torque: 10 Nm
- Tolerance for nominal tightening torque: ± 20%
- Product weight: 16 g
- Cover material: PBT
- Material of dynamic seals: HNBR
- Threaded bolt material: Steel, galvanized
- Releasing ring material: PBT
- Static seal material: NBR
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on VFOE-LE-T-G14-Q8 . Santa Clara Systems carries 7,532 items from Festo.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
