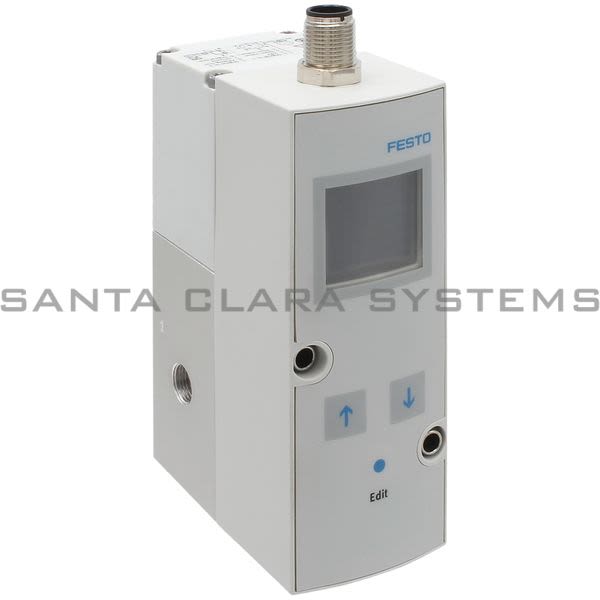

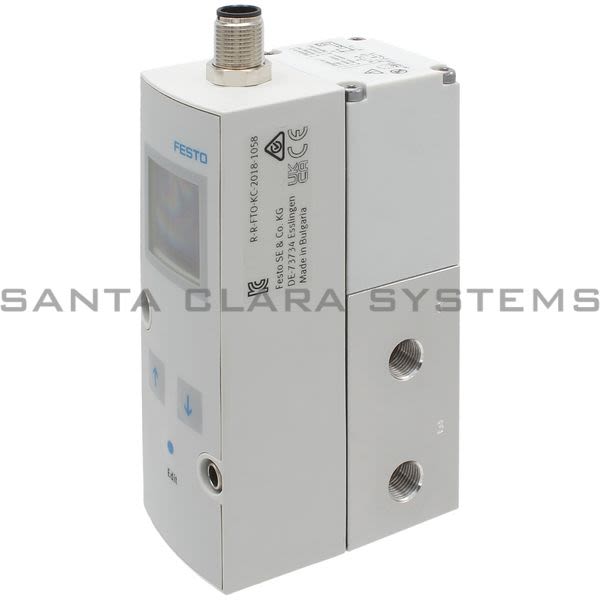

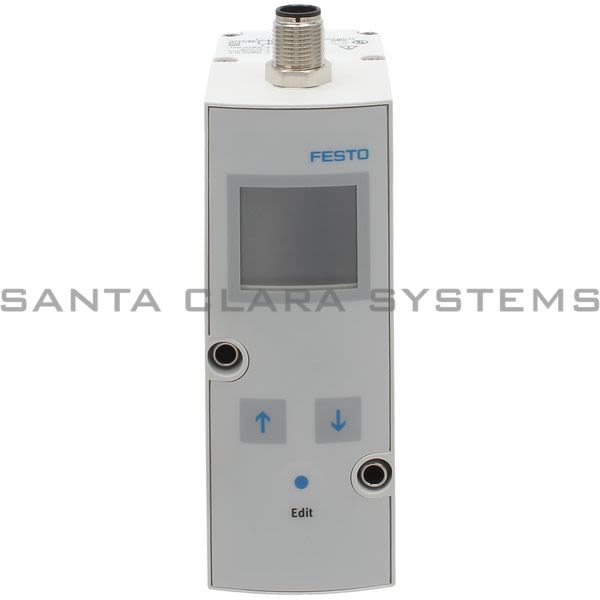

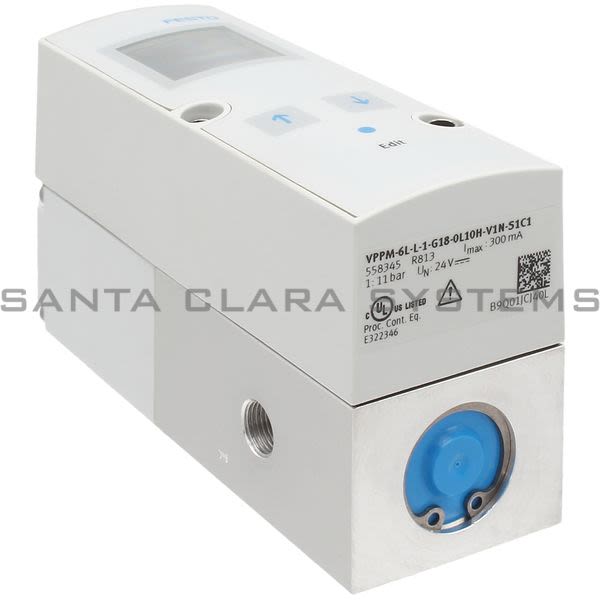

- Description: Proportional Pressure Control Valve
- Ambient temperature: 0 C ...60 C
- Electrical connection: 8-pin Plug M12 Via sub-base
- Nominal diameter, pressurisation: 6 mm
- Nominal diameter, exhaust: 4.5 mm
- Type of actuation: electrical
- Sealing principle: soft
- Assembly position: Any
- Design structure: Pilot actuated diaphragm regulator
- Short circuit strength: for all electrical connections
- Safety instructions: VPPM safety position: If the power supply cable is interrupted, output pressure is maintained unregulated.
- Polarity protected: for all electrical connections
- Type of reset: mechanical spring
- Type of piloting: Piloted
- Valve function: 3-way proportional-pressure regulator
- Type of display: Backlit LCD
- KC characters: KC EMC
- Nominal width pressurization: 6 mm
- Type code: VPPM
- Actuation type: Electrical
- Mounting position: Any
- Design: Pilot-controlled diaphragm regulator
- Short-circuit protection: For all electrical connections
- Symbol: 995303
- Reverse polarity protection: for all electrical connections
- Reset method: Mechanical spring
- Type of control: Pilot-controlled
- Display type: LED Back-lit LCD
- Pressure regulation range: 0.02 bar ...10 bar
- Inlet pressure 1: 0 bar ...11 bar
- Standard nominal flow rate: 380 l/min ...1400 l/min
- DC operating voltage range: 21.6 V ...26.4 V
- Max. current consumption: 300 mA
- Duty cycle: 100%
- Max. electrical power consumption: 7 W
- Residual ripple: 10%
- Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas
- Information on operating and pilot media: Operation with oil lubrication not possible
- CE marking (see declaration of conformity): As per EU EMC directive
- Corrosion resistance class (CRC): 2 - Moderate corrosion stress
- Temperature of medium: 10 C ...50 C
- Degree of protection: IP65
- Certification: c UL us - Listed (OL) RCM compliance mark
- Product weight: 400 g
- Temperature coefficient: 0.04 %/K
- Repetition accuracy FS: 0.50%
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on VPPM-6L-L-1-G18-0L10H-V1N-S1C1 . Santa Clara Systems carries 5,560 items from Festo.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
