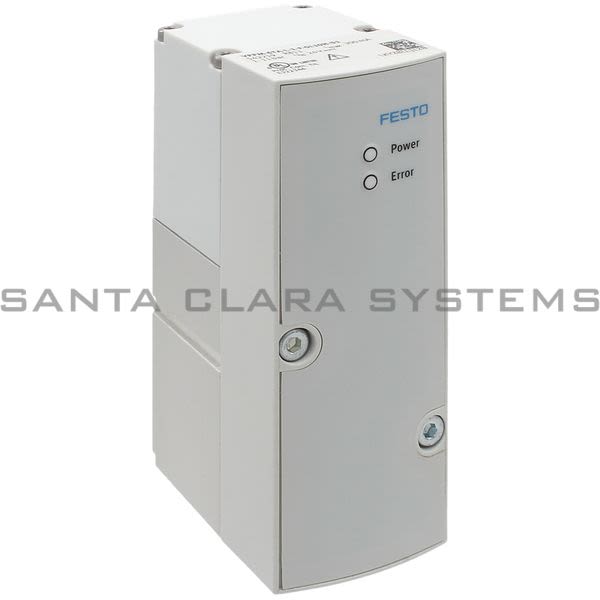

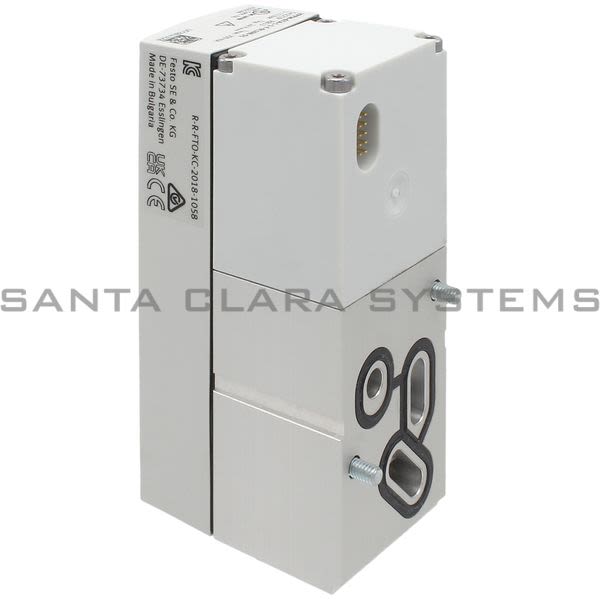

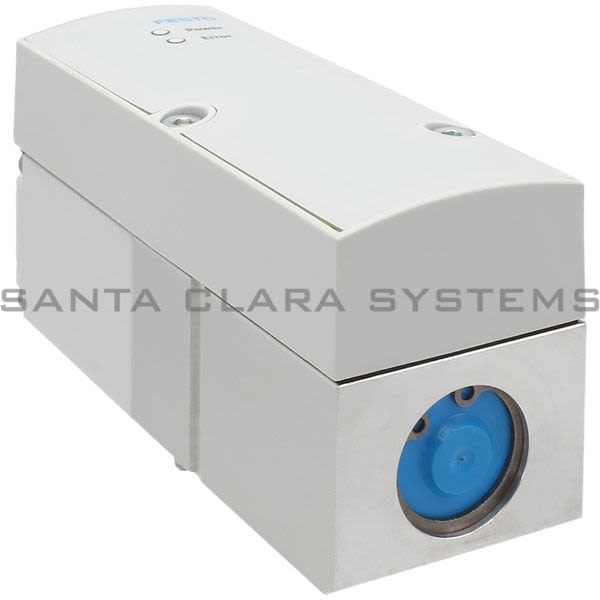

- Description: Proportional Pressure Control Valve
- Nominal width pressurization: 6 mm
- Exhaust nominal width: 4.5 mm
- Actuation type: Electrical
- Sealing principle: Soft
- Mounting position: Any
- Structural design: Pilot-controlled diaphragm regulator
- Short-circuit protection: For all electrical connections
- Safety instructions: VPPM safety position: if the supply cable breaks, the outlet pressure is maintained in uncontrolled form.
- Symbol: 00995303
- Reverse polarity protection: For all electrical connections
- Reset method: Mechanical spring
- Type of control: Pilot-controlled
- Valve function: 3-way proportional pressure control valve
- Display type: LED
- Pressure regulation range MPa: 0.01 MPa ... 1 MPa
- Pressure regulation range: 0.1 bar ... 10 bar
- Inlet pressure 1: 0 bar ... 11 bar
- Inlet pressure 1 MPa: 0 MPa ... 1.1 MPa
- Max. pressure hysteresis: 0.05 bar
- Standard nominal flow rate: 1400 l/min
- DC operating voltage range: 21.6 V ... 26.4 V
- Max. current consumption: 300 mA
- Duty cycle: 100%
- Max. electrical power consumption: 7 W
- Residual ripple: 10 %
- Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas
- Information on operating and pilot media: Operation with oil lubrication not possible
- Certification: RCM compliance mark c UL us - Listed (OL)
- KC characters: KC EMC
- CE marking (see declaration of conformity): As per EU EMC directive As per EU RoHS directive
- UKCA marking (see declaration of conformity): To UK instructions for EMC To UK RoHS instructions Certificate issuing authority UL E322346
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on VPPM-6TA-L-1-F-0L10H-S1 . Santa Clara Systems carries 5,553 items from Festo.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
