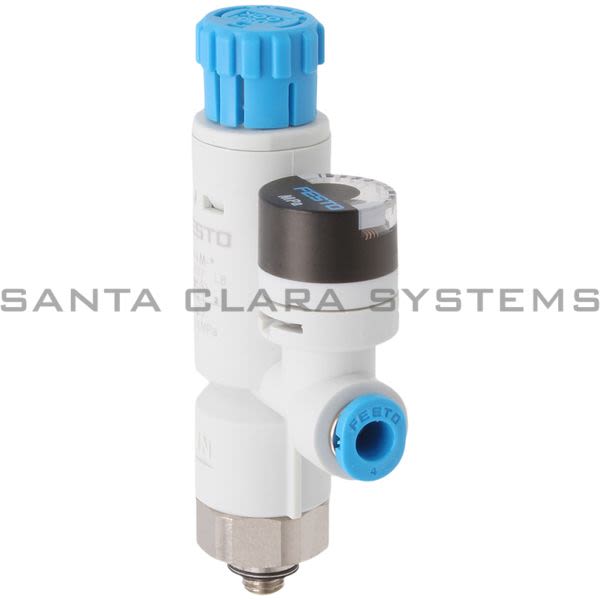

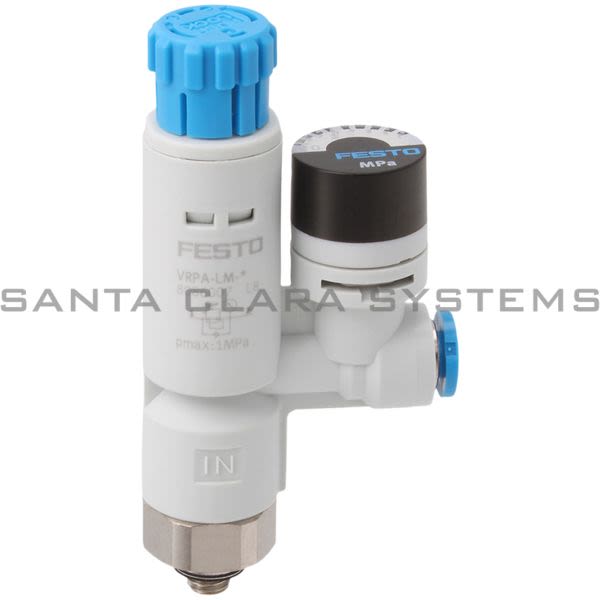

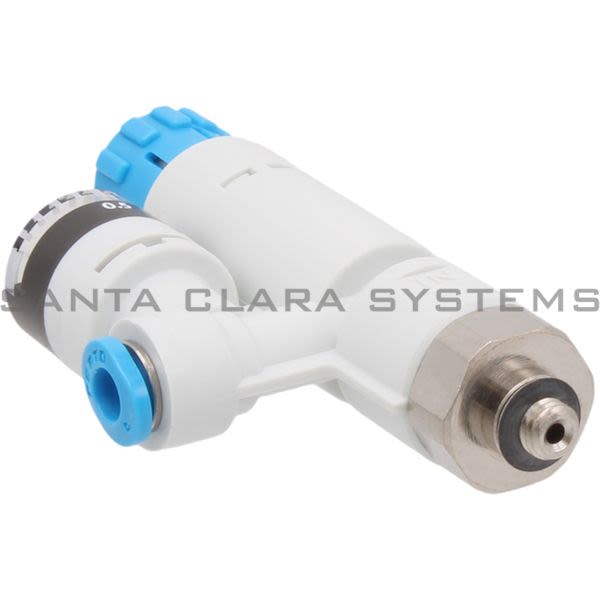

VRPA-LM-M5-Q4

Festo - Pressure Regulator

Product Summary:

Ambient temperature: 0 °C ... 60 °C
Pneumatic connection 1: M5
Pneumatic connection 2: QS-4
Type of mounting: Screw-in
Standard nominal flow rate: 80 l/min

Current response time:

10 Minutes 41 Seconds

Description: Pressure Regulator
Ambient temperature: 0 °C ... 60 °C
Controller function: Outlet pressure constant - With secondary exhausting - With return flow function
Pneumatic connection 1: M5
Pneumatic connection 2: QS-4
Type of mounting: Screw-in
Standard nominal flow rate: 80 l/min
Housing material: PBT
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Mounting position: Any
Actuation type: Manual
Type of seal on screwed plug: Sealing ring
Adjusting element: Rotary knob with detent
Symbol: 00991558

Rotatability: 360 deg/continuous swiveling not permissible
Pressure gauge: With pressure gauge
Pressure regulation range MPa: 0.1 MPa ... 0.8 MPa
Pressure regulation range: 1 bar ... 8 bar
Pressure regulation range psi: 14.5 psi ... 116 psi
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
LABS (PWIS) conformity: VDMA24364-B2-L
Cleanroom class: Class 4 according to ISO 14644-1
Nominal tightening torque: 0.8 Nm
Tolerance for nominal tightening torque: ± 20%
Product weight: 29 g
Material of screwed plug: Brass, nickel-plated
Static seal material: NBR
