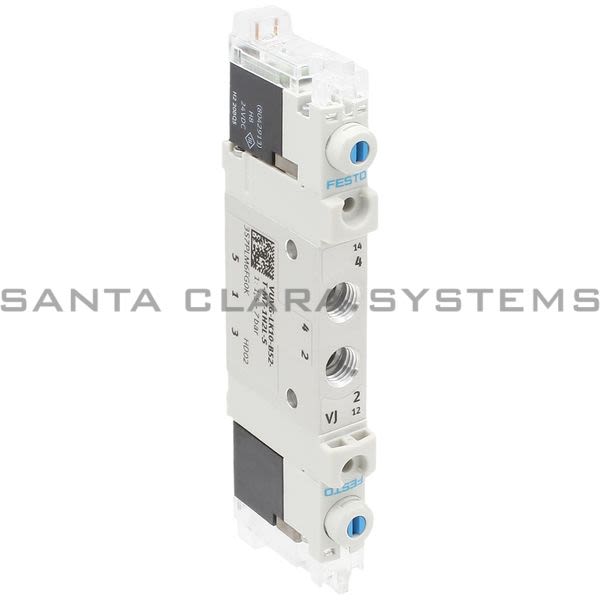

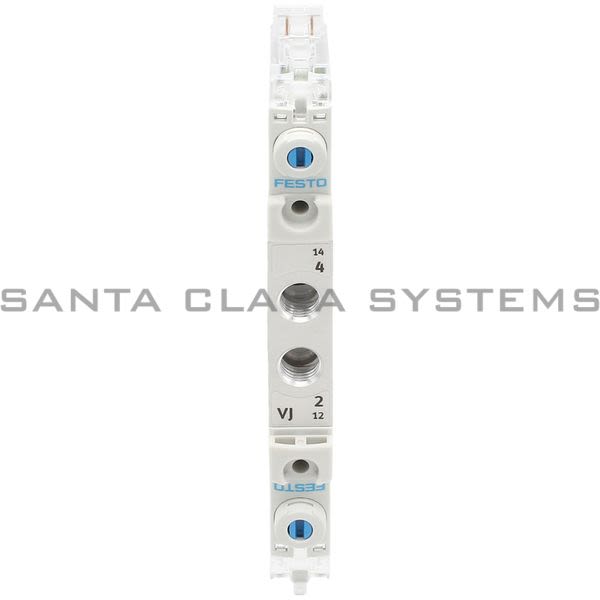

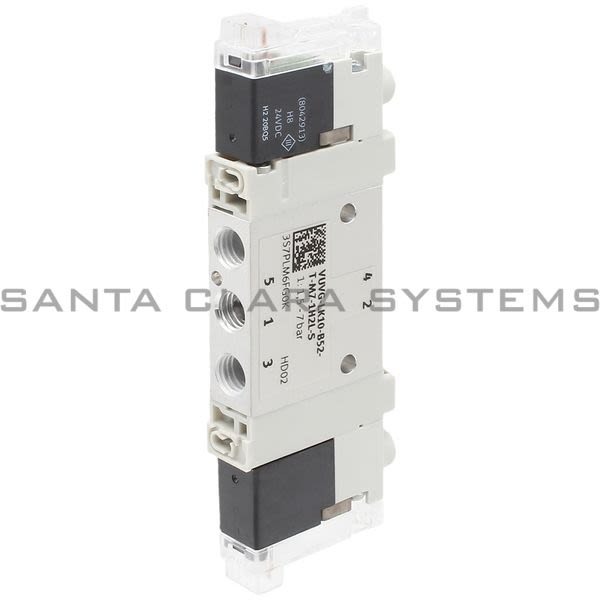

VUVG-LK10-B52-T-M7-1H2L-S

Festo - Air Solenoid Valve

Current response time:

By 5AM PT on Thursday

Emergency?

Description: Air Solenoid Valve
Ambient temperature: -5 °C ... 50 °C
Electrical connection: 2-pin Connection diagram H, horizontal connection Plug
Valve function: 5/2, bistable
Actuation type: Electrical
Valve size: 10 mm
Standard nominal flow rate: 340 l/min
Pneumatic working port: M7
Operating voltage: 24V DC
Operating pressure: 0.15 MPa ... 0.7 MPa - 1.5 bar ... 7 bar
Structural design: Piston slide with sealing ring
Certification: C UL us - Recognized (OL)
Certificate issuing authority: UL MH19482
Degree of protection: IP40
Exhaust air function: With flow control option
Sealing principle: Soft
Mounting position: Any
Manual override: Detenting, Non-detenting
Type of control: Pilot-controlled
Pilot air supply port: Internal
Flow direction: Non-reversible
Symbol: 00992897
Lap: Overlap

Signal status display: LED
Max. switching frequency: 2 Hz
Changeover time: 8 ms
Duty cycle: 100%
Max. positive test pulse with 0 signal: 1600 µs
Max. negative test pulse on 1 signal: 3000 µs
Coil characteristics: 24 V DC: 0.8 W
Permissible voltage fluctuations: +/- 10 %
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Vibration resistance: Transport application test with severity level 1 as per FN 942017-4 and EN 60068-2-6
Shock resistance: Shock test with severity level 1 as per FN 942017-5 and EN 60068-2-27
Corrosion resistance class (CRC): 0 - No corrosion stress
LABS (PWIS) conformity: VDMA24364 zone III
Temperature of medium: -5 °C ... 50 °C
Pilot medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Product weight: 57 g
Type of mounting: On terminal strip With through-hole
Pneumatic connection 2: M7
Pneumatic connection 4: M7
Seals material: HNBR NBR
Housing material: Wrought aluminum alloy
