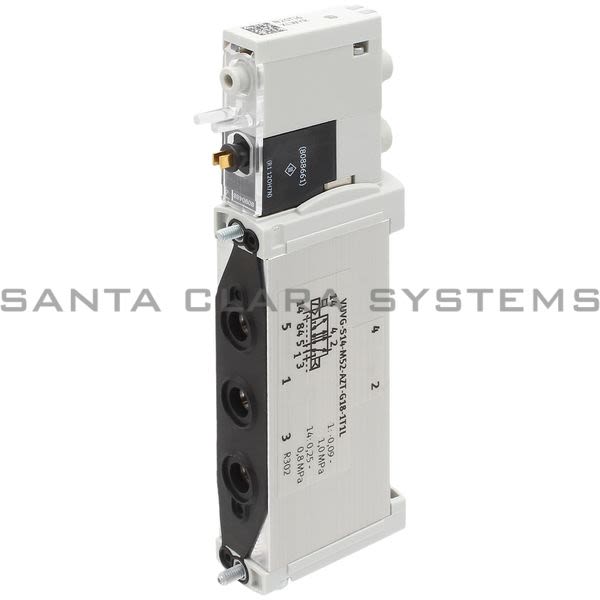

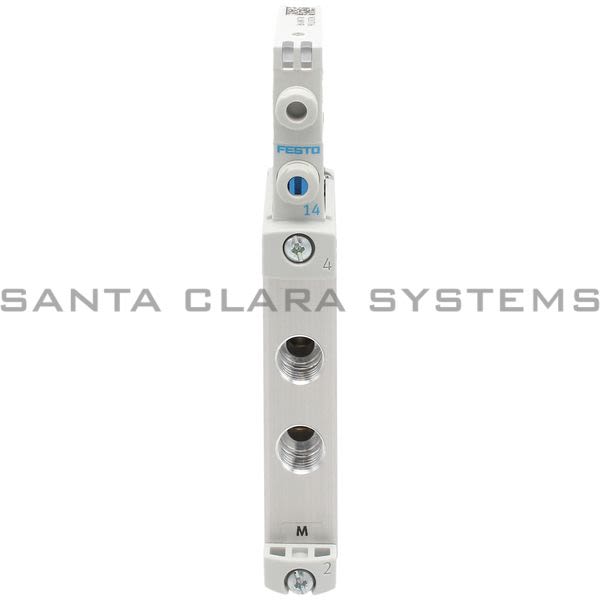

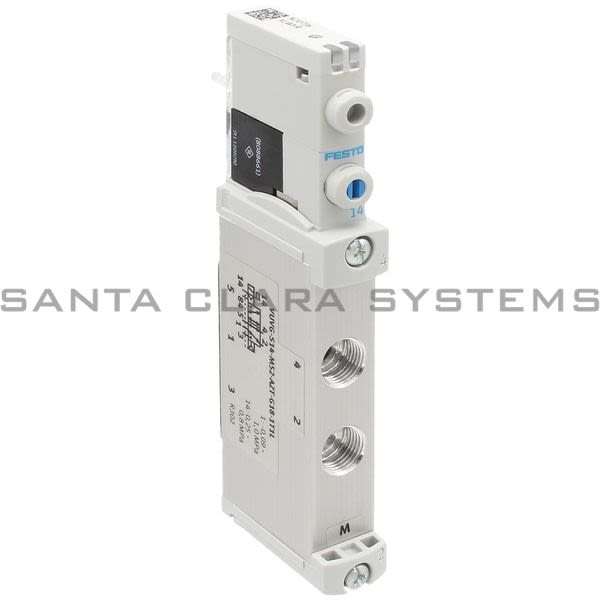

VUVG-S14-M52-AZT-G18-1T1L

Festo - Air Solenoid Valve

Current response time:

By 5AM PT on Monday

Emergency?

Description: Air Solenoid Valve
Ambient temperature: -5 C ... 60 C
Electrical connection: Via sub-base
Valve function: 5/2, monostable
Actuation type: Electrical
Valve size: 14 mm
Standard nominal flow rate: 620 l/min
Pneumatic working port: G1/8
Operating voltage: 24V DC
Operating pressure MPa: -0.09 MPa ... 1 MPa
Operating pressure: -0.9 bar ... 10 bar
Structural design: Piston gate valve
Reset method: Pneumatic spring
Certificatio: C UL us - Recognized (OL)
Degree of protection: IP65 IP67
Exhaust air function: With flow control option
Sealing principle: Soft
Mounting position: Any
Manual override: Detenting Non-detenting
Type of control: Pilot-controlled
Pilot air supply port: External
Flow direction: Reversible
Symbol: 00991053
Lap: Overlap
Signal status display: LED

Pilot pressure MPa: 0.15 MPa ... 0.8 MPa
Pilot pressure: 1.5 bar ... 8 bar
Max. switching frequency: 3 Hz
Switching time off: 26 ms
On switching time: 13 ms
Duty cycle: 100%
Max. positive test pulse with 0 signal: 1600 s
Max. negative test pulse on 1 signal: 3000 s
Coil characteristics: 22 V DC: 1.0 W
Permissible voltage fluctuations: +/- 10 %
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Vibration resistance: Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
Shock resistance: Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
Corrosion resistance class (CRC): 2 - Moderate corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Temperature of medium: -5 C ... 60 C
Pilot medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Product weight: 91 g
Type of mounting: On terminal strip
Pneumatic connection 2: G1/8
Pneumatic connection 4: G1/8
Seals material: HNBR NBR
Housing material: Wrought aluminum alloy

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on VUVG-S14-M52-AZT-G18-1T1L . Santa Clara Systems carries 5,553 items from Festo.

We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
