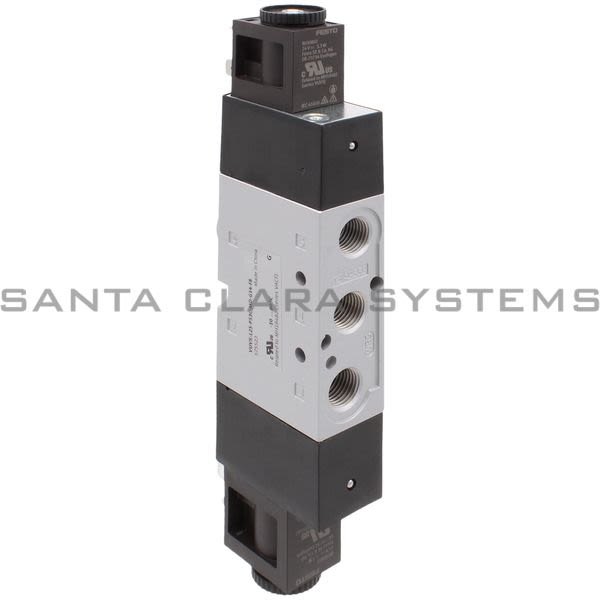

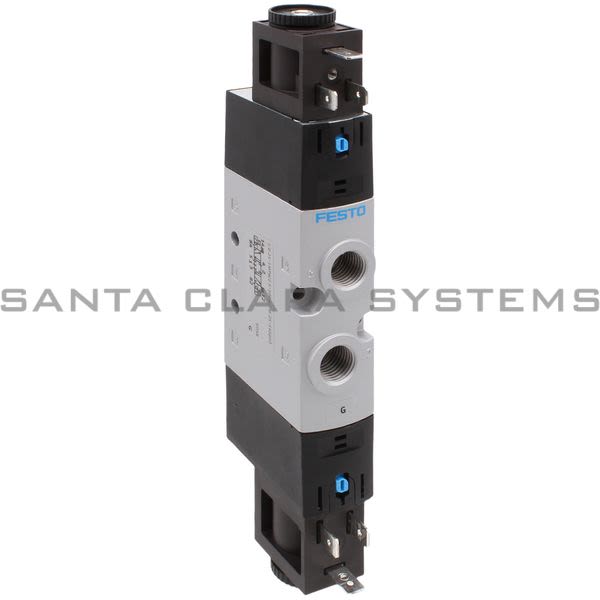

VUVS-L25-P53C-MD-G14-F8-1B2

Festo - Air Solenoid Valve

Product Summary:

Ambient temperature: -10 °C ... 60 °C
Electrical connection: Form B - As per industrial standard (11 mm)
Valve function: 5/3, closed
Standard nominal flow rate: 1200 l/min
Pneumatic connection 1: G1/4

Current response time:

16 Minutes 20 Seconds

Description: Air Solenoid Valve
Ambient temperature: -10 °C ... 60 °C
Electrical connection: Form B - As per industrial standard (11 mm)
Valve function: 5/3, closed
Standard nominal flow rate: 1200 l/min
Pneumatic connection 1: G1/4
Actuation type: Electrical
Valve size: 26.5 mm
Pneumatic working port: G1/4
Operating voltage: 24V DC
Operating pressure: 0.25 MPa ... 1 MPa - 2.5 bar ... 10 bar
Structural design: Piston gate valve
Reset method: Mechanical spring
Certification: C UL us - Recognized (OL)
Maritime classification: See certificate
Certificate issuing authority: DNVGL-TAA000011J
Degree of protection: IP65 - With plug socket - as per IEC 60529
Nominal width: 6.5 mm
Exhaust air function: With flow control option
Sealing principle: Soft
Mounting position: Any
Manual override: Detenting - Non-detenting
Type of control: Pilot-controlled
Pilot air supply port: Internal
Flow direction: Non-reversible
Symbol: 00991033
Lap: Overlap
B-value: 0.4
C value: 5.2 l/sbar

Switching time off: 42 ms
On switching time: 13 ms
Changeover time: 26 ms
Duty cycle: 100%
Max. positive test pulse with 0 signal: 2000 µs
Max. negative test pulse on 1 signal: 3600 µs
Coil characteristics: 24 V DC: 3.3 W
Permissible voltage fluctuations: +/- 10 %
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Vibration resistance: Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
Shock resistance: Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
Corrosion resistance class (CRC): 2 - Moderate corrosion stress
Cleanroom class: Class 6 according to ISO 14644-1
Temperature of medium: -10 °C ... 60 °C
Pilot medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Product weight: 430 g
Type of mounting: Optionally: On terminal strip - With through-hole
Venting hole connection: Not ducted
Pilot exhaust air port 82: M5
Pilot exhaust air port 84: M5
Pneumatic connection 2: G¼
Pneumatic connection 3: G1/4
Pneumatic connection 4: G1/4
Pneumatic connection 5: G1/4
Seals material: HNBR - NBR
Housing material: Die-cast aluminum - Painted
Piston slide material: Wrought aluminum alloy
Material of screws: Steel, galvanized
