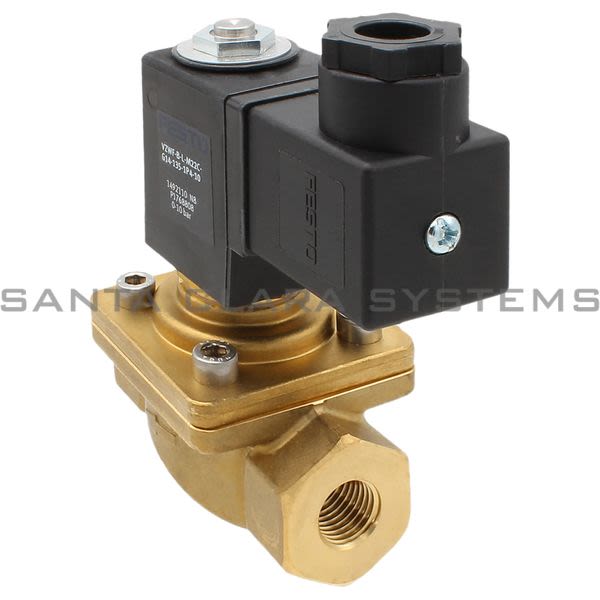

• Festo VZWF-B-LM22C-G14-135-1P4-10 Air Solenoid Valve Product Image

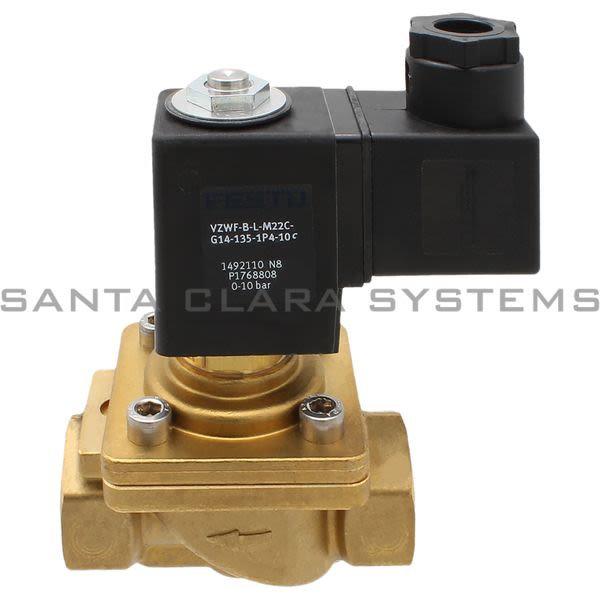

  • Festo VZWF-B-LM22C-G14-135-1P4-10 Air Solenoid Valve Product Image

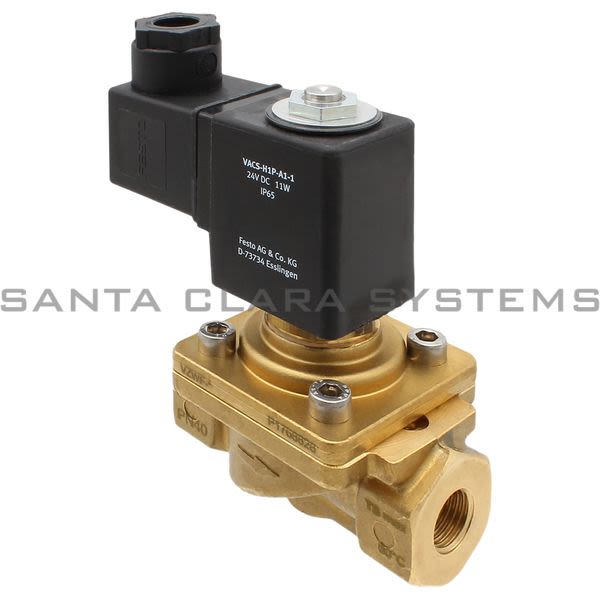

  • Festo VZWF-B-LM22C-G14-135-1P4-10 Air Solenoid Valve Product Image
  • Festo VZWF-B-LM22C-G14-135-1P4-10 Barcode

VZWF-B-LM22C-G14-135-1P4-10

Get a Quote

Current response time:

By 5AM PT on Monday
  • Description: Air Solenoid Valve
  • Electrical connection: Form A Plug as per EN 175301-803 Rectangular design
  • Ambient temperature: -10 °C ... 35 °C
  • Structural design: Diaphragm valve Force pilot operated
  • Actuation type: Electrical
  • Sealing principle: Soft
  • Mounting position: Magnet, upright
  • Type of mounting: Line installation
  • Fitting connection: G1/4
  • Nominal width: 13.5 mm
  • Valve function: 2/2, closed, monostable
  • Manual override: None
  • Flow direction: Non-reversible
  • Medium: Compressed air as per ISO 8573-1:2010 [7:-:-] Inert gas Mineral oil Water Neutral liquids Other flow media on request
  • Nominal pressure of fitting PN: 40
  • Pressure difference: 0 MPa, 0 psi
  • Differential pressure: 0 bar
  • Coil characteristics: 24 V DC: 11.0 W
  • Permissible voltage fluctuations: +/- 10 %
  • Symbol: 00992976
  • Medium pressure: 0 MPa ... 1 MPa, 0 bar ... 10 bar, 0 psi ... 145 psi
  • Max. viscosity: 22 mm²/s
  • Temperature of medium: -10 °C ... 80 °C
  • Leak rate to EN 12266-1: A
  • Flow rate Kv: 1.8 m³/h
  • Standard nominal flow rate: 1920 l/min
  • On switching time: 130 ms
  • Switching time off: 180 ms
  • LABS (PWIS) conformity: VDMA24364 zone III
  • Housing material: Cast brass
  • Material number of housing: CW617N
  • Seals material: NBR
  • Material of screws: High-alloy stainless steel
  • Material number of screw: 1.4301
  • Product weight: 1000 g
  • Degree of protection: IP65
  • Corrosion resistance class (CRC): 1 - Low corrosion stress
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on VZWF-B-LM22C-G14-135-1P4-10 . Santa Clara Systems carries 7,168 items from Festo.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.

Alternates

  • 1492110
