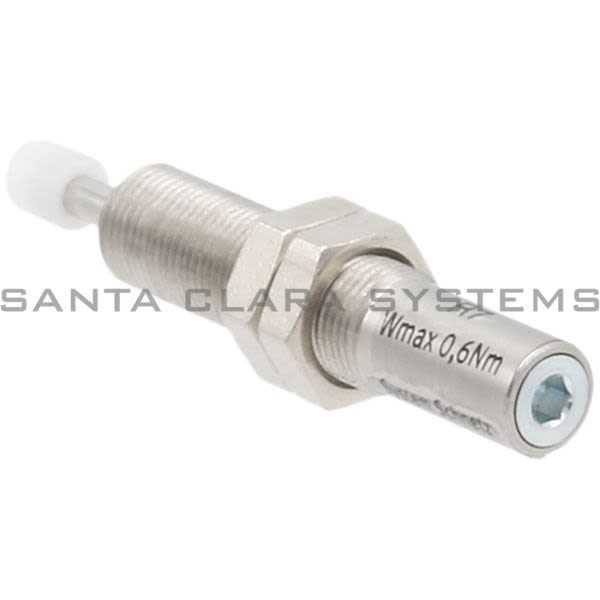

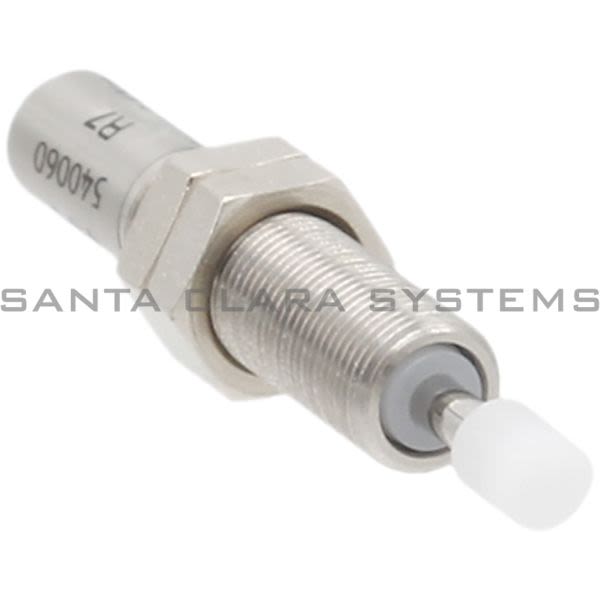

- Description: Pneumatic Shock Absorber
- Size: 4
- Ambient temperature: -10 C ... 80 C
- Stroke: 4 mm
- Cushioning: Self-adjusting
- Mounting position: Any
- Position sensing: None
- Symbol: 00991497
- Max. impact velocity: 2 m/s
- Reset time at room temperature: 0.2 s
- Reset time at min. ambient temperature: 1 s
- Mode of operation: Pushing Single-acting
- Corrosion resistance class (CRC): 2 - Moderate corrosion stress
- LABS (PWIS) conformity: VDMA24364-B2-L
- Cushioning length: 4 mm
- Max. stop force: 100 N
- Max. energy absorption per stroke: 0.6 J
- Max. energy absorption per hour: 5600 J
- Max. residual energy: 0.006 J
- Resetting force: 0.7 N
- Min. insertion force: 6.5 N
- Product weight: 5 g
- Load range: 1.2 kg
- Type of mounting: With lock nut
- Seals material: NBR
- Housing material: High-alloy steel
- Piston rod material: High-alloy steel
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on YSR-4-4-C . Santa Clara Systems carries 5,553 items from Festo.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
