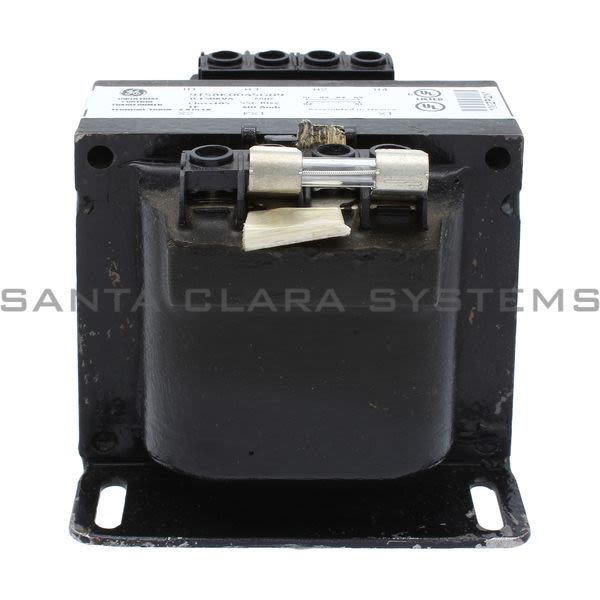

• General Electric 9T58K0045G09 Core and Coil SM PWR Transformers Product Image

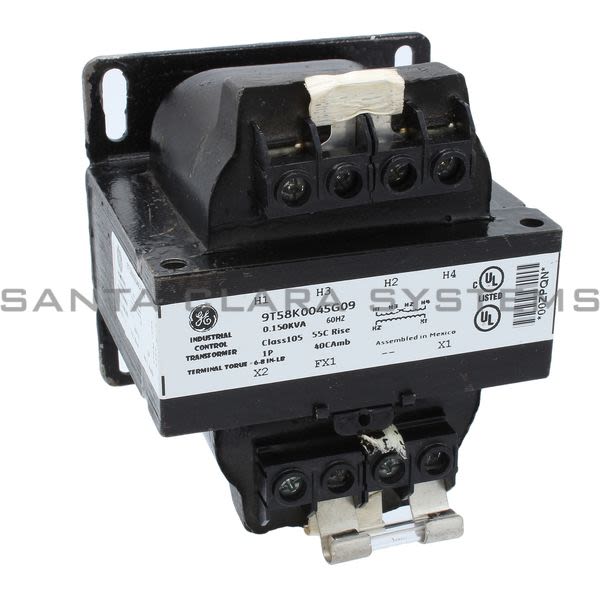

  • General Electric 9T58K0045G09 Core and Coil SM PWR Transformers Product Image

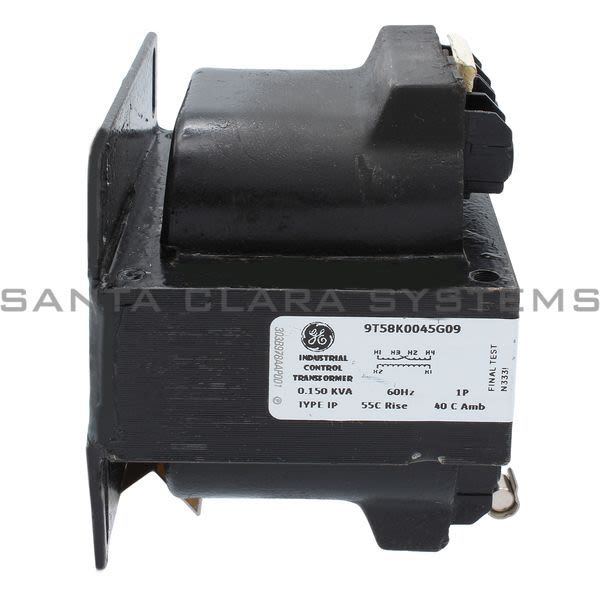

  • General Electric 9T58K0045G09 Core and Coil SM PWR Transformers Product Image

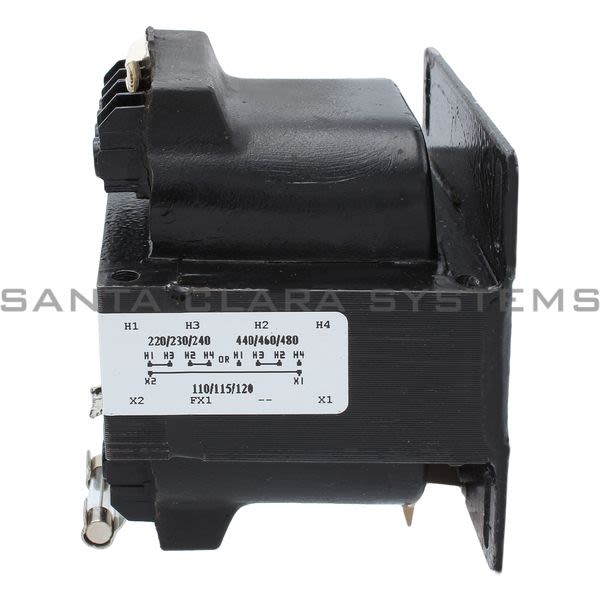

  • General Electric 9T58K0045G09 Core and Coil SM PWR Transformers Product Image

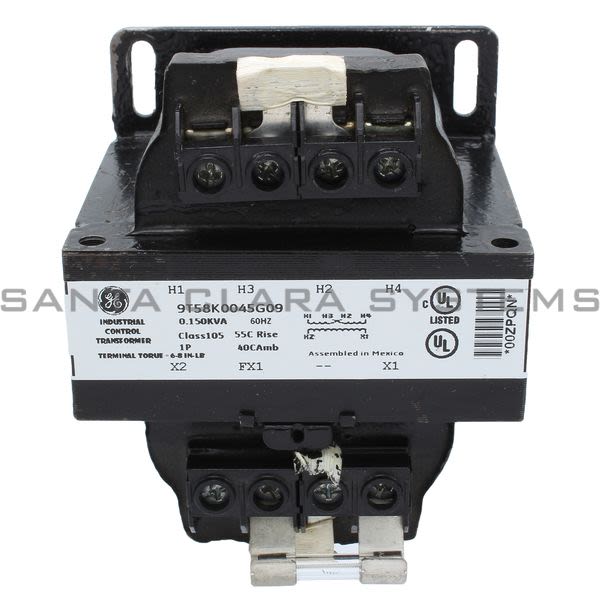

  • General Electric 9T58K0045G09 Core and Coil SM PWR Transformers Product Image
  • General Electric 9T58K0045G09 Barcode

9T58K0045G09

Product Summary:

  • Connection: Screw Terminal
  • Frequency Rating: 60 Hz
  • Gross Weight: 5.000
  • Height: 3.280 Inch
  • Insulation: Class A 105 deg C
Let Us Find It

Current response time:

By 5AM PT on Wednesday
  • Description: Core and Coil SM PWR Transformers
  • Length: 3.810 Inch
  • Phase: 1
  • Power Rating: 0.15 KVA
  • Primary Voltage: 230 x 460 Volt
  • Secondary Voltage: 115 Volt
  • Width: 4.620 Inch
  • Type of Device: Transformer 230 x 460 Volt Primary, 115 Volt Secondary, 0.15 KVA, 1 Phase
  • Product Details: GE Transformer 1-Phase Dry type core and coil SM power transformer has a power rating of 0.15 kVA. It measures 3.810 Inch x 4.620 Inch x 3.280 Inch. Step-down transformer has a secondary voltage rating of 115 Volts and primary voltage rating of 230 x 460 Volts at 60 Hz frequency. Transformer with core and coil are fully encapsulated provides highest quality of electrical performance.
  • Product Description: Transformer operates at an insulation temperature of 105 deg C and an ambient temperature of 40 deg C. Transformer is class A insulated and features a copper coil material for high conductivity. It is ideal for use in applications where regulation and minimum space are important. Transformer is UL listed.
  • Connection: Screw Terminal
  • Frequency Rating: 60 Hz
  • Gross Weight: 5.000
  • Height: 3.280 Inch
  • Insulation: Class A 105 deg C
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on 9T58K0045G09 . Santa Clara Systems carries 5,781 items from General Electric.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
