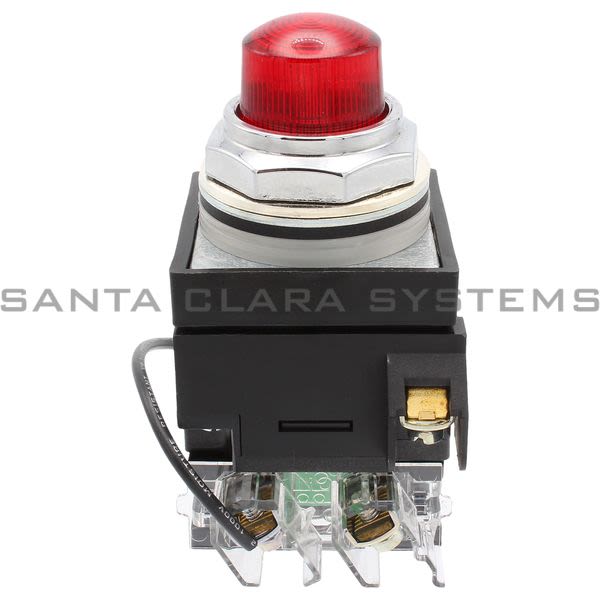

• General Electric CR104PLT22R Indicating Light Product Image

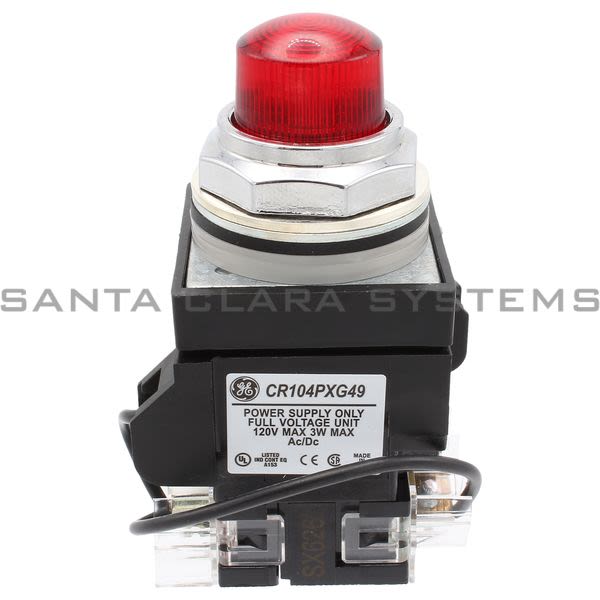

  • General Electric CR104PLT22R Indicating Light Product Image

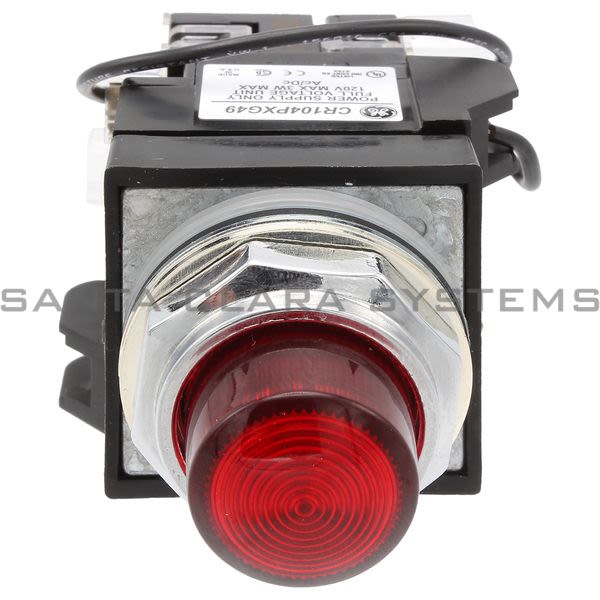

  • General Electric CR104PLT22R Indicating Light Product Image

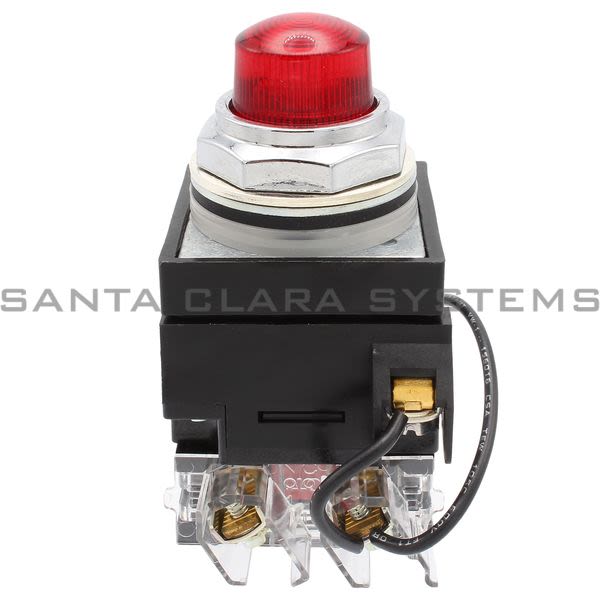

  • General Electric CR104PLT22R Indicating Light Product Image

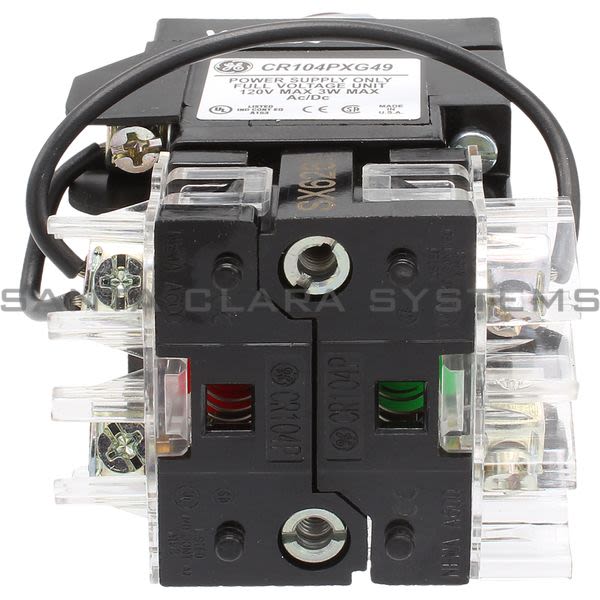

  • General Electric CR104PLT22R Indicating Light Product Image

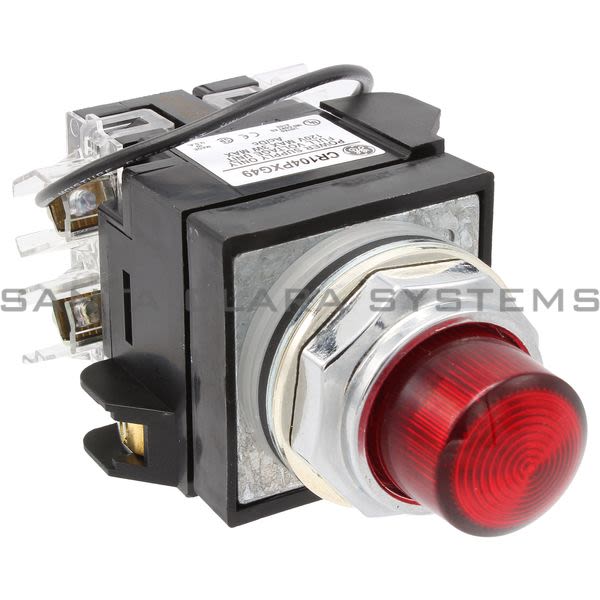

  • General Electric CR104PLT22R Indicating Light Product Image
  • General Electric CR104PLT22R Barcode

CR104PLT22R

Product Summary:

  • Type of Device: Pilot Light Red Push-To-Test (ON) 120VAC
  • Height: 2.50
  • Width: 2.50
  • Length: 4.13
  • Voltage Rating: 120 VAC At 50/60 HZ Supply, 600 VAC/VDC Maximum
Get a Quote

Current response time:

12 Minutes 2 Seconds
  • Description: Indicating Light
  • Type of Device: Pilot Light Red Push-To-Test (ON) 120VAC
  • Product Description: Heavy-Duty 30.5 mm Watertight/Oiltight Pilot Devices. Push to Test Indicating Lights. Supply voltage: 120V. Suitable for use in NEMA Types 1, 3, 3R, 4, 4X, 12, and 13 applications when mounted in enclosures rates for those same applications.
  • Height: 2.50
  • Width: 2.50
  • Length: 4.13
  • Voltage Rating: 120 VAC At 50/60 HZ Supply, 600 VAC/VDC Maximum
  • Material: Polycarbonate Lens, Die-Cast Zinc Metal Body
  • Lamp Type: 130 V Incandescent
  • Style: Round
  • Amperage Rating: 10 A
  • Finish/Color: Red Lens, Chrome Plated Body
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on CR104PLT22R . Santa Clara Systems carries 5,875 items from General Electric.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
