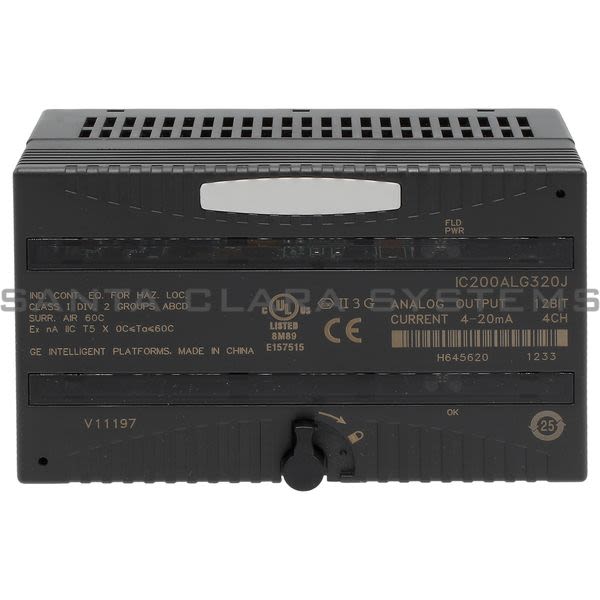

• General Electric IC200 ALG 320 Output Module Product Image

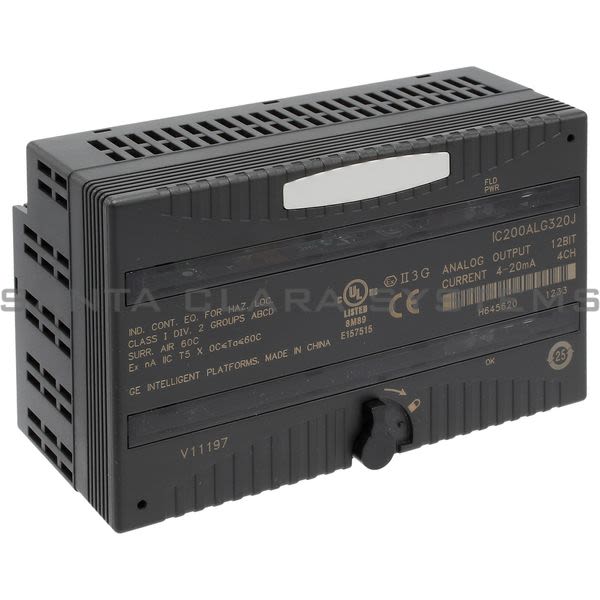

  • General Electric IC200 ALG 320 Output Module Product Image

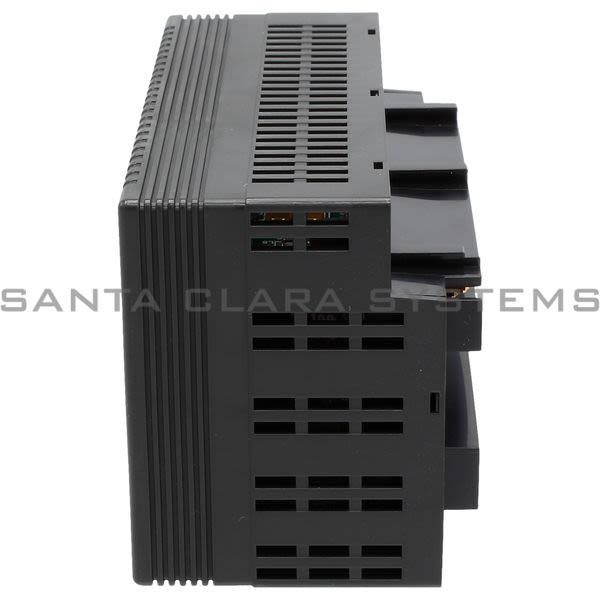

  • General Electric IC200 ALG 320 Output Module Product Image

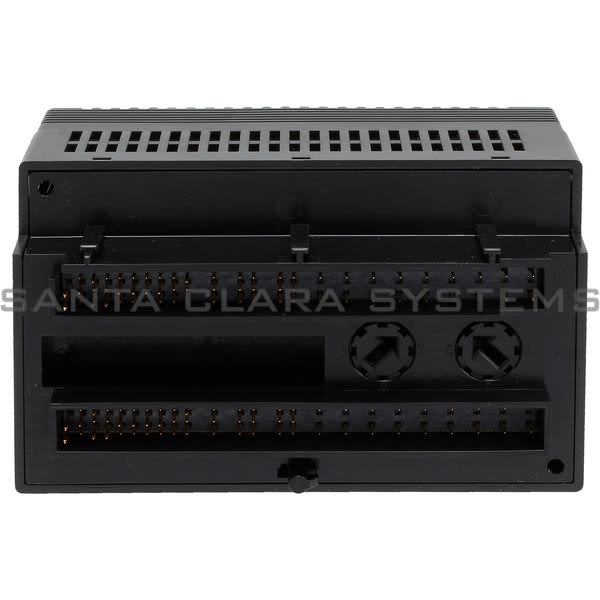

  • General Electric IC200 ALG 320 Output Module Product Image
  • General Electric IC200 ALG 320 Barcode

IC200ALG320

Product Summary:

  • Type of Device: Analog Output Module, 12 bit Current, 4 Channels
  • Output Current: 4 to 20mA
  • Channels: 4 single-ended, one group
  • Isolation: 250VAC continuous; 1500VAC for 1 minute
  • Backplane current consumption: 5V output: 50mA maximum
Get a Quote

Current response time:

By 5AM PT on Friday
  • Description: Output Module
  • Type of Device: Analog Output Module, 12 bit Current, 4 Channels
  • Output Current: 4 to 20mA
  • Channels: 4 single-ended, one group
  • Isolation: 250VAC continuous; 1500VAC for 1 minute
  • LED Indicators: FLD PWR LED indiciates field power is present OK LED indicates backplane power is present.
  • Backplane current consumption: 5V output: 50mA maximum
  • Configuration Parameter: Output default
  • Diagnostics: Loss of User Side Power
  • External Power Supply - Recommended Range: +18 to +30VDC (including ripple)
  • Current Consumption at Recommended Range: 160mA max (including load current)
  • 12V operation range: 9.6 to 15VDC, 12VDC nominal (including ripple)
  • Current Consumption at 12V Range: 240mA max (including load current)
  • Update Rate Per Module: 0.3ms maximum
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on IC200ALG320 . Santa Clara Systems carries 5,875 items from General Electric.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
