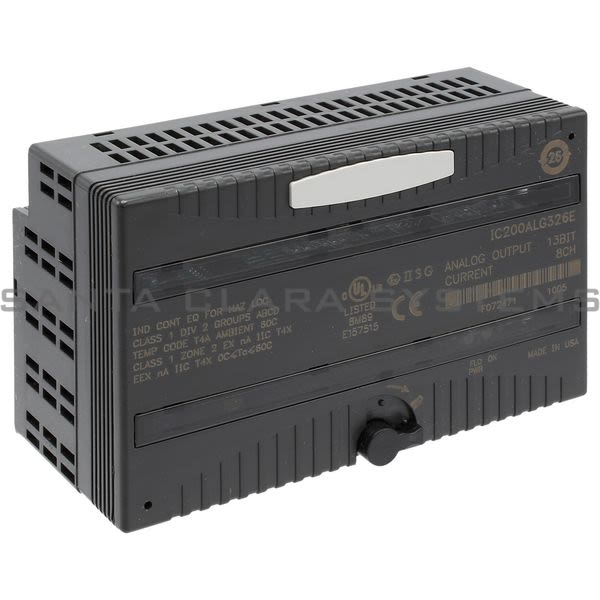

• General Electric IC200 ALG 326 Output Module Analog 8 Channel 13Bit Current Product Image

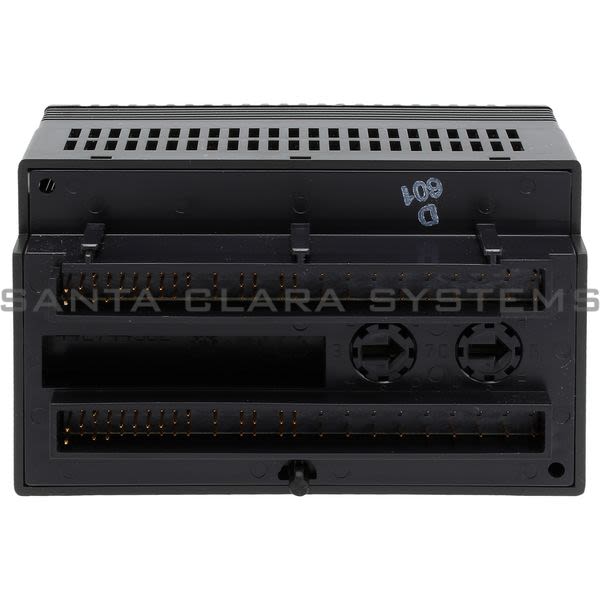

  • General Electric IC200 ALG 326 Output Module Analog 8 Channel 13Bit Current Product Image

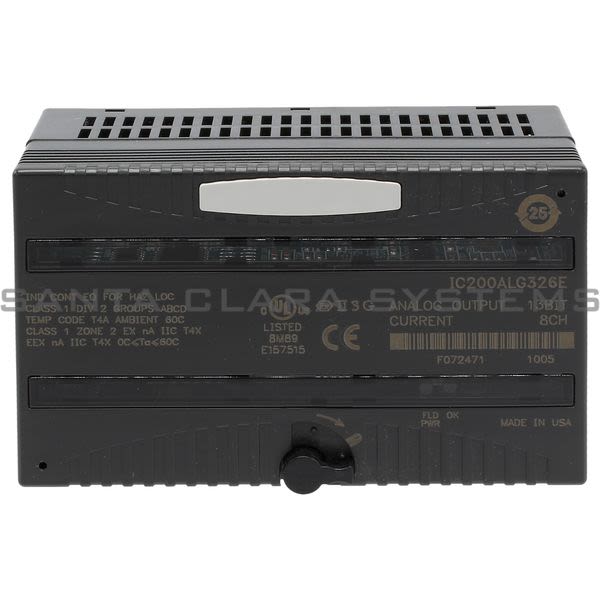

  • General Electric IC200 ALG 326 Output Module Analog 8 Channel 13Bit Current Product Image

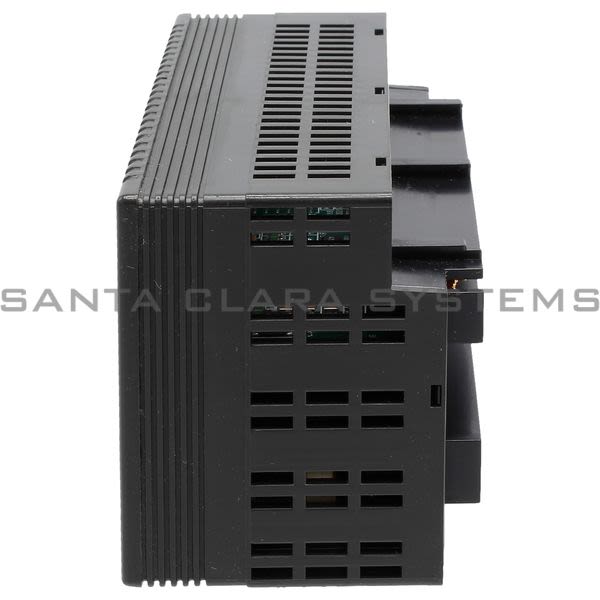

  • General Electric IC200 ALG 326 Output Module Analog 8 Channel 13Bit Current Product Image
  • General Electric IC200 ALG 326 Barcode

IC200ALG326

Product Summary:

  • Type of Device: Analog Output 13 Bit, Current 8CH
  • Channels: 8 single ended, one group
  • Module ID: IC200ALG326: FFFF9480
  • External Power Supply R: Range: +18 to +30VDC
  • Update Rate Per Module: 15 mSec maximum
Get a Quote

Current response time:

By 5AM PT on Wednesday
  • Description: Output Module Analog 8 Channel 13Bit Current
  • Module ID: IC200ALG326: FFFF9480
  • External Power Supply R: Range: +18 to +30VDC
  • Current Consumption: 2A inrush maximum, 100mA maximum (no load), 185mA maximum (all 8 outputs at full scale)
  • Output Current: 4 to 20mA (default) 0 to 20mA (configured with jumper)
  • Update Rate Per Module: 15 mSec maximum
  • Type of Device: Analog Output 13 Bit, Current 8CH
  • Product Description: Analog output module IC200ALG326 provides eight 4mA to 20mA analog current-sourcing outputs. Analog output module IC200ALG328 provides twelve 4mA to 20mA analog current-sourcing outputs. Including a modest amount of overrange current, approximately 20.38mA of output current per channel is available to drive output loads. An external power supply is required for the outputs. Intelligent processing for this module is performed by the CPU or Network Interface Unit.
  • LED Indicators: The green FLD PWR LED indicates the presence of user-side power for the analog field-side circuits. The green OK LED is on when backplane power is present to the module
  • Diagnostics: The module reports a Loss of User Side Power fault for field-side circuits.
  • Configuration Parameters: The module has a default output range, but is easily set up with a jumper to change the output range. The module is also easily set up with a jumper for the outputs to either hold their last states or default if backplane power or communications are interrupted or the PLC is stopped. External user power must remain uninterrupted. Outputs remain in their default or last state until the module receives different output data from the backplane, or until field power is removed.
  • Preinstallation Check: Carefully inspect all shipping containers for damage. If any equipment is damaged, notify the delivery service immediately. Save the damaged shipping container for inspection by the delivery service. After unpacking the equipment, record all serial numbers. Save the shipping containers and packing material in case it is necessary to transport or ship any part of the system
  • Channels: 8 single ended, one group
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on IC200ALG326 . Santa Clara Systems carries 5,781 items from General Electric.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
