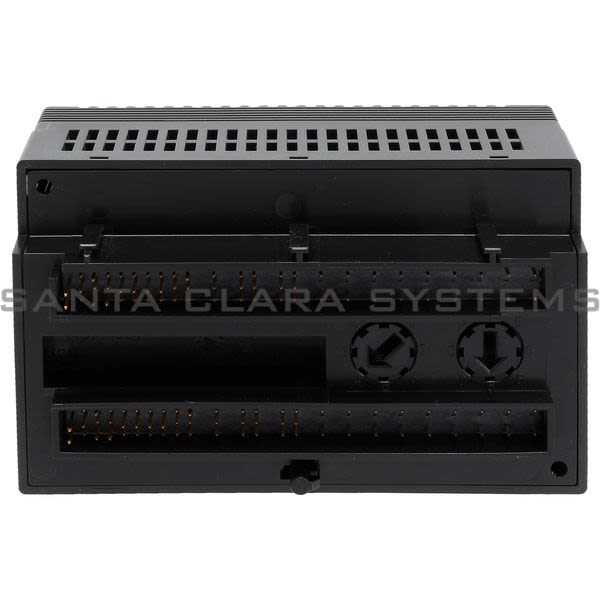

• General Electric IC200 ALG 432 Analog Mixed 12Bit Product Image

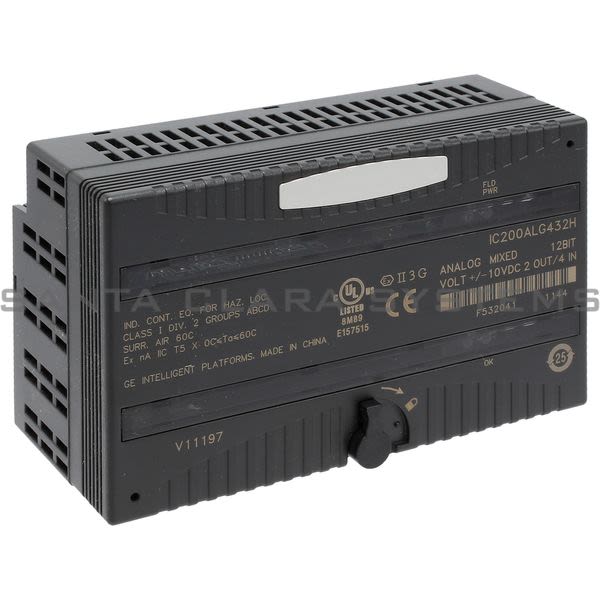

  • General Electric IC200 ALG 432 Analog Mixed 12Bit Product Image

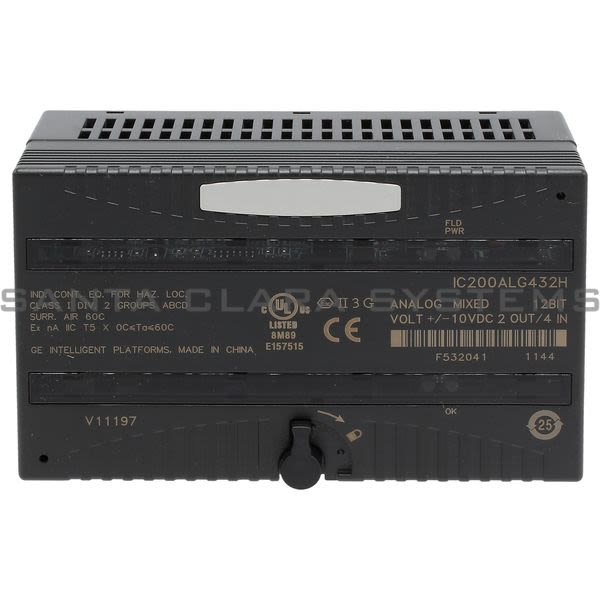

  • General Electric IC200 ALG 432 Analog Mixed 12Bit Product Image
  • General Electric IC200 ALG 432 Analog Mixed 12Bit Product Image
  • General Electric IC200 ALG 432 Barcode

IC200ALG432

Product Summary:

  • Type of Device: Analog Mixed Modules, 12-Bit
  • Output current: IC200ALG430: 4 to 20mA
  • Channels: 4 differential inputs, one group, 2 single-ended outputs, one group
  • Thermal derating: None
  • Configuration parameters: Output default
Get a Quote

Current response time:

By 5AM PT on Monday
  • Description: Analog Mixed 12Bit
  • Type of Device: Analog Mixed Modules, 12-Bit
  • Product Description: Analog mixed module IC200ALG432 provides four -10 to +10VDC analog inputs and two -10 to +10VDC analog outputs. An external 24V power supply is required for the outputs. For inputs, power for the user?s transceivers must be supplied from an external source. Intelligent processing for this module is performed by the CPU or Network Interface Unit. The module provides 4 words of analog input data and receives 2 words of analog output data.
  • Output current: IC200ALG430: 4 to 20mA
  • Channels: 4 differential inputs, one group, 2 single-ended outputs, one group
  • LED indicators: FLD PWR LED indicates field power is present OK LED indicates backplane power is present
  • Backplane current consumption: IC200ALG430, BXIOMA4: 5V output: 50mA max. IC200ALG431 / 432, BXIOMA410: 60mA max.
  • Thermal derating: None
  • Configuration parameters: Output default
  • Diagnostics: Loss of User Side Power
  • External Power Supply - Recommended Range: +18 to +30VDC (including ripple)
  • Current consumption at recommended range: 160mA max (including load current)
  • 12V operation range: 9.6 to 15VDC, 12VDC nominal (including ripple)
  • Current consumption at 12V range (including load current): IC200ALG430, BXIOMA4: 215mA maximum IC200ALG431 / 432, BXIOMA410: 175mA max
  • Update rate per module: 0.3ms maximum
  • Channel-to-channel crosstalk rejection: 70dB minimum
  • Output default: Hold Last State
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on IC200ALG432 . Santa Clara Systems carries 5,875 items from General Electric.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
