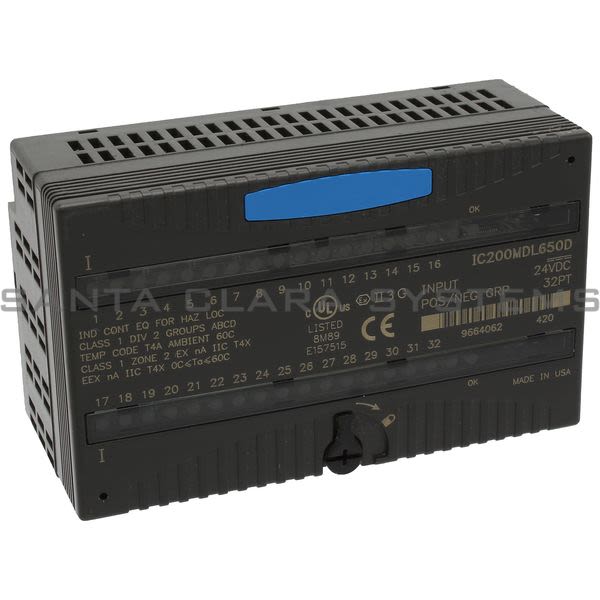

• General Electric IC200 MDL 650 Input Module Product Image

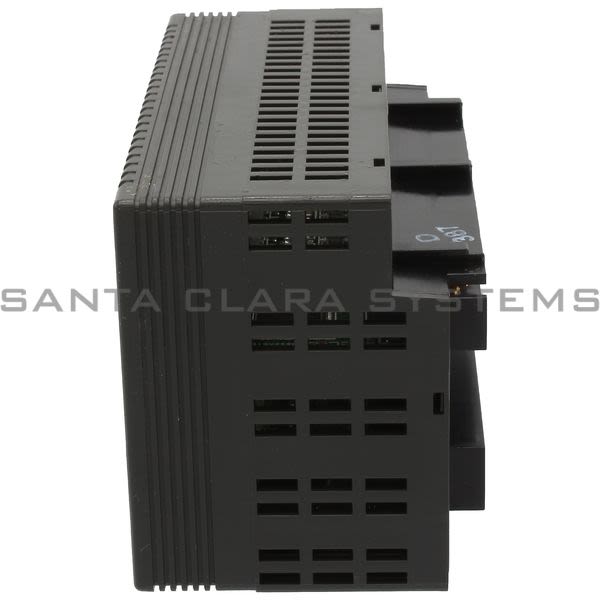

  • General Electric IC200 MDL 650 Input Module Product Image

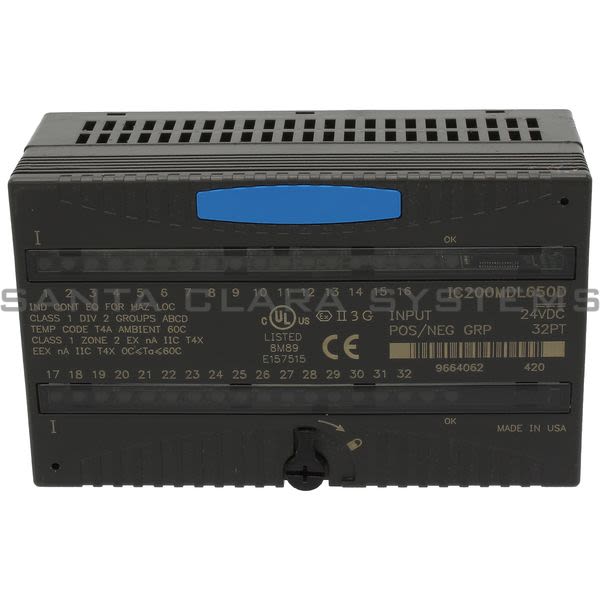

  • General Electric IC200 MDL 650 Input Module Product Image

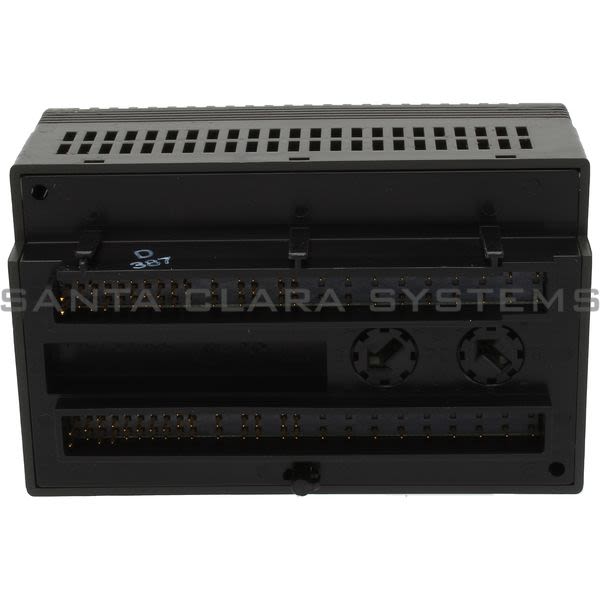

  • General Electric IC200 MDL 650 Input Module Product Image
  • General Electric IC200 MDL 650 Barcode

IC200MDL650

Product Summary:

  • Voltage Rating: 24 Volt DC
  • Response Time: 0.5 ms On
  • Input Impedance: 10 Ohm
  • Load Current: 2 - 5.5 Milli-Amp ON State/0 - 0.5 Milli-Amp OFF State
  • Number of Points: 32 Points
Get a Quote

Current response time:

13 Minutes 22 Seconds
  • Description: Input Module
  • Type of Device: Positive Logic VersaMax Discrete Input Module; 32 Points, 24 Volt DC
  • Product Description: GE Fanuc Positive logic VersaMax discrete input module has 32 points and provides four groups of eight discrete inputs. It has an input voltage rating of 0 - 30 VDC. Input devices are connected between the input terminals and common terminals. Power for module operation comes from the backplane and is performed by the CPU or network interface unit. It has ON state current rating of 2 - 5.5 milli-Amps and OFF state current rating of 0 - 0.5 milli-Amps. It measures 4.300 Inch x 1.956 Inch x 2.630 Inch. Module includes one LED per point that shows individual point ON/OFF status and OK LED indicates backplane power is present.
  • Voltage Rating: 24 Volt DC
  • Response Time: 0.5 ms On
  • Input Impedance: 10 Ohm
  • Load Current: 2 - 5.5 Milli-Amp ON State/0 - 0.5 Milli-Amp OFF State
  • Number of Points: 32 Points
  • Points Per Common: 2 Groups Of 8
  • LED Indicators: Individual green LEDs indicate the on/off state of each input point. The green OK LED is on when backplane power is present to the module.
  • Configuration parameters: Input response times
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on IC200MDL650 . Santa Clara Systems carries 5,875 items from General Electric.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
