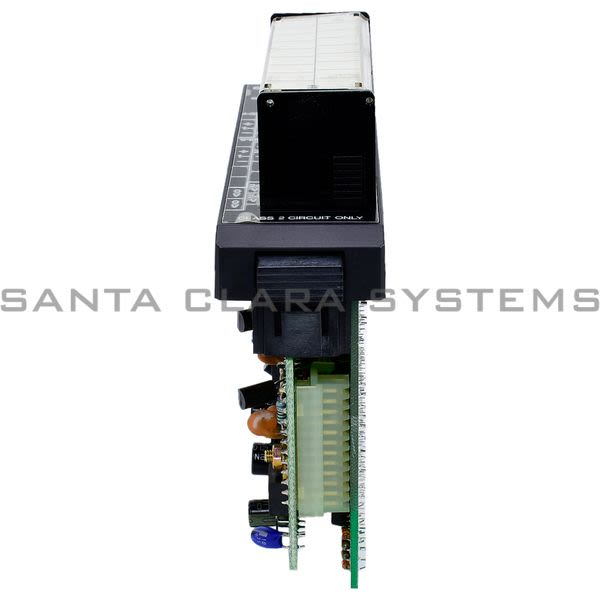

IC610MDL116

General Electric - Analog Input Module

Current response time:

By 5AM PT on Thursday

Emergency?

Description: Analog Input Module
Type of Device: Analog Input
Operating Temperature: 0 to 60 C (32 to 140 F)
Resolution: 8-bit binary (1 in 256)
Relative Humidity: 5% to 95% (non-condensing)
Number of Channels: 4 (Independent)
Input Ranges: +1 to +5 V dc or 4 to 20 mA (jumper selectable for each channel)

Digital Outputs: 8 bits, binary data output 4 bits, channel status
I/O Points Required: 16 consecutive (per slot assignments for 16 points, 0 to 7 and 100 to 117, etc.)
LED Display (16 LEDs): 8 bits: Data being read into the selected channel / 4 bits: Channel selected for Data Display / 4 bits: Channels being scanned
Absolute Maximum rating: Voltage Input, 0 to +10 V dc / Current Input, 0 to 30 mA
Conversion Method: Successive Approximation Method
9 V dc Power Consumption: 55 mA (Supplied by rack power supply)

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on IC610MDL116 . Santa Clara Systems carries 6,143 items from General Electric.

We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
