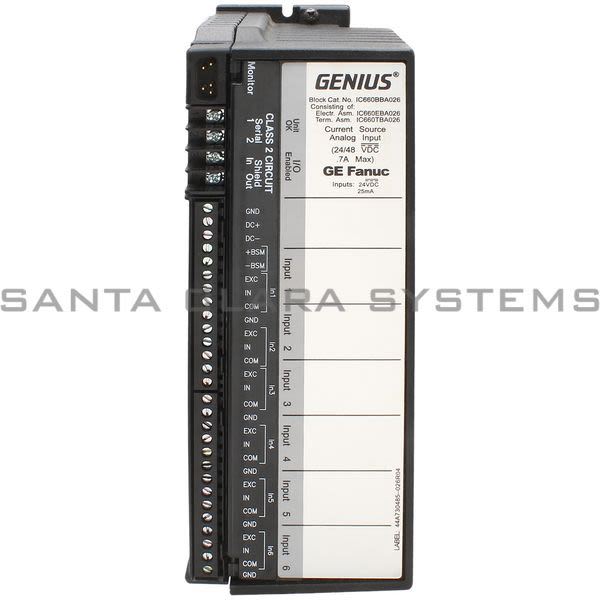

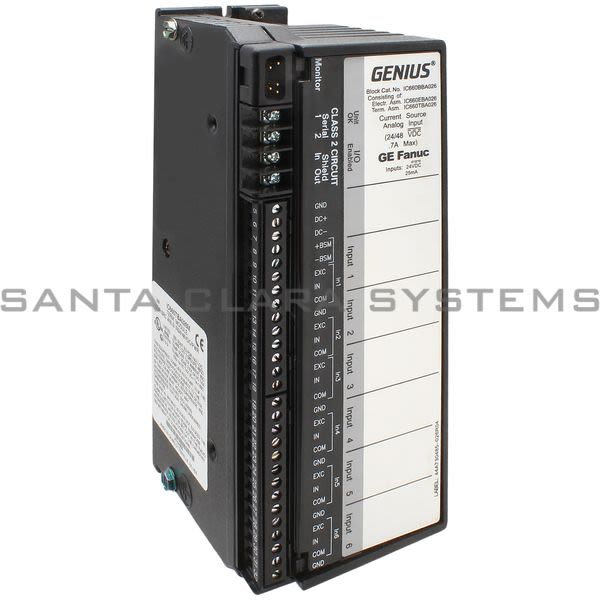

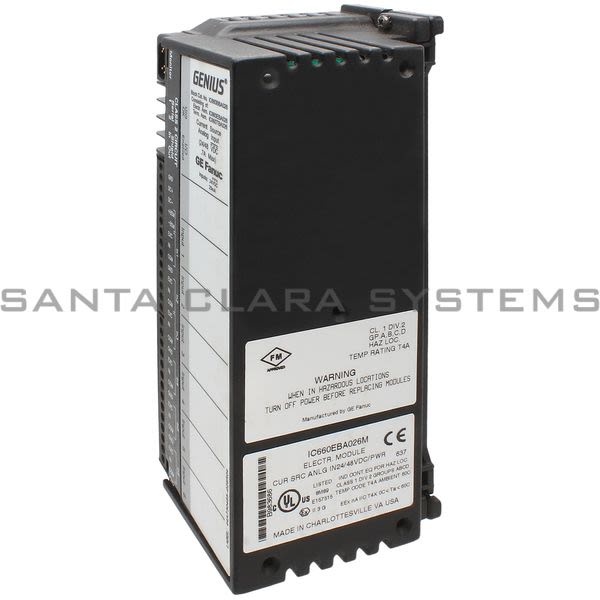

IC660BBA026

General Electric - I/O Block

Current response time:

By 5AM PT on Thursday

Emergency?

Description: I/O Block
Type of Device: Block 24/48Vdc Analog Current Source 6 Inputs
Product Description: Genius GEFIC660BBA026 24/48 VDC Current Source Input Blocks are used to interface a controller to devices that provide 4mA to 20mA analog signals. Each IC660BBA026 has six 4-to-20 mA input circuits, with isolated channels. No user calibration is required for operation of the Genius IC660BBA106.
Weight: 4 lbs. (1.8 kg)
Range: 4mA to 20mA
Size (height x width x depth): 8.83 (22.44cm) x 3.56 (9.05cm) x 4.42 (11.23cm)
LEDs (I/O Block): Unit OK, I/O Enabled
BSM Control: Switches one 24/48 VDC BSM (IC66*BSM021)

Block to Block Isolation: 1500V for one minute
Group to Group Isolation: 1500V RMS
Heat Dissipation: 12 Watts maximum
Input accuracy at 25 C: 0.1% of full scale reading
Input conversion time: 16.6ms to 400ms (user selectable)
Overrange capacity: 0mA to 25mA
Input diagnostics: Underrange, Overrange, High Alarm, Low Alarm, Open Wire
Open circuit voltage: 24 VDC

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on IC660BBA026 . Santa Clara Systems carries 6,143 items from General Electric.

We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
