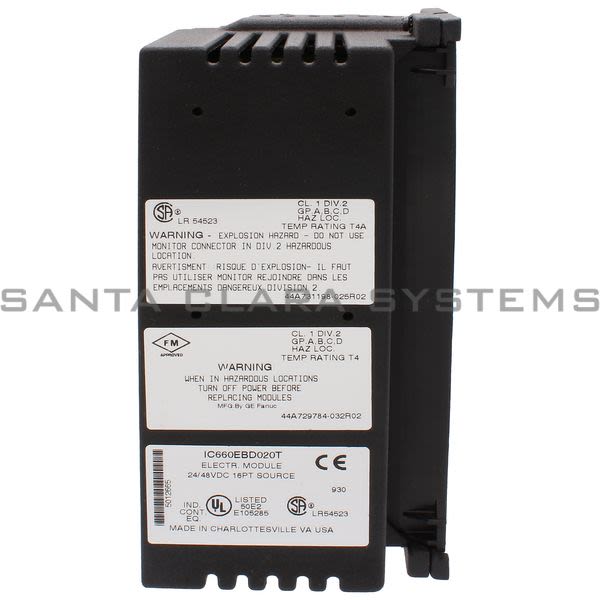

• General Electric IC660 BBD 022 24VDC Source I/O Block Product Image

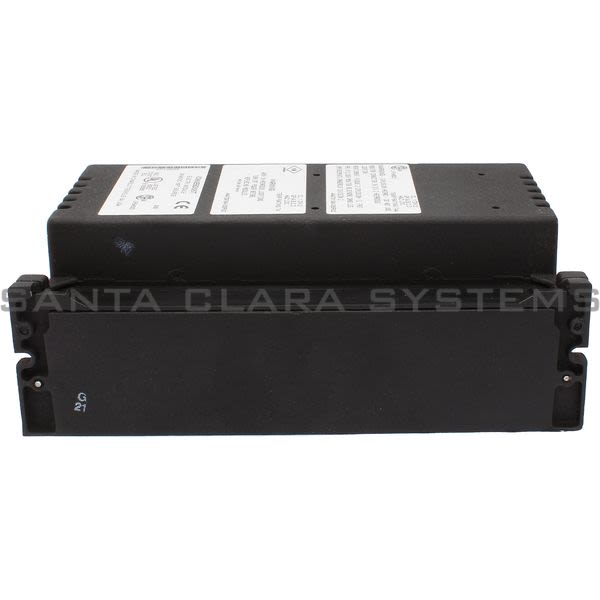

  • General Electric IC660 BBD 022 24VDC Source I/O Block Product Image

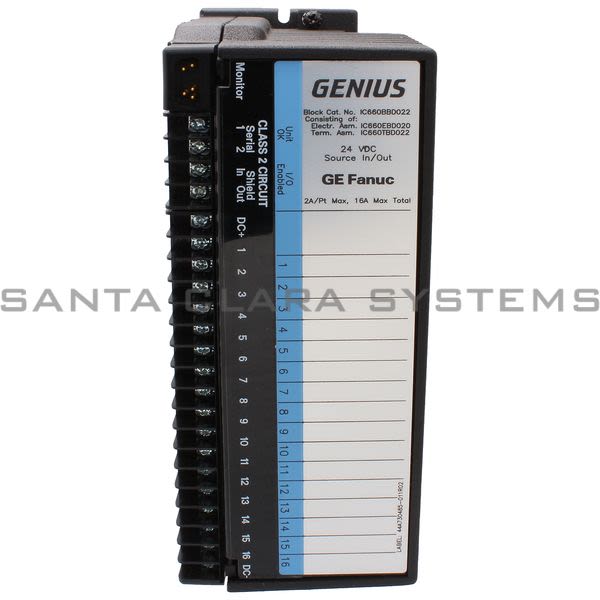

  • General Electric IC660 BBD 022 24VDC Source I/O Block Product Image

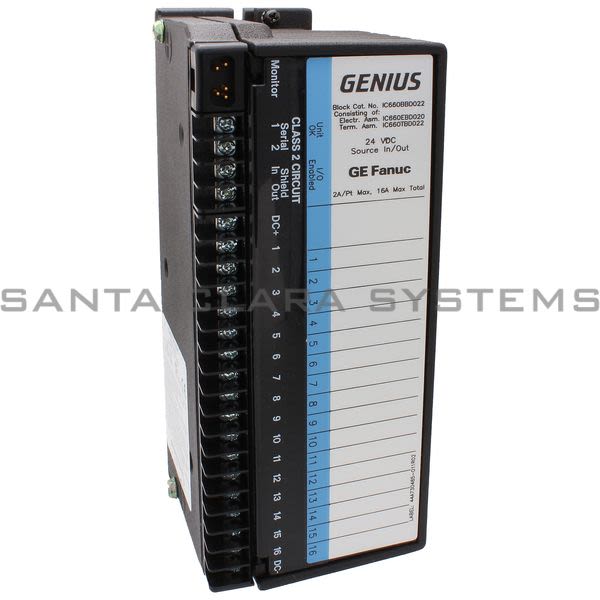

  • General Electric IC660 BBD 022 24VDC Source I/O Block Product Image
  • General Electric IC660 BBD 022 Barcode

IC660BBD022

Product Summary:

  • Type of Device: Block 24/48Vdc Source I/O 16 Circuits, 2/3 Wire Sensor Compatible
  • Weight: 4 lbs. (1.8 kg)
  • Size (height x width x depth): 8.83"(22.44cm) x 3.56" (9.05cm) x 4.42" (11.23cm)
  • LEDs (I/O Block): Unit OK, I/O Enabled
  • LEDs (each circuit): Individual load side indicators
Get a Quote

Current response time:

By 5AM PT on Friday
  • Description: 24VDC Source I/O Block
  • Type of Device: Block 24/48Vdc Source I/O 16 Circuits, 2/3 Wire Sensor Compatible
  • Product Description: Genius DC Discrete I/O blocks interface to a wide range of input devices, including both 2?wire and 3? wire electronic proximity switches. Outputs may be low?power control and indicating devices such as relays, contactors, and lamps. These blocks have identical discrete I/O circuits, each easily configured to be an input or an output. Output circuits can be directly connected to input circuits without the use of other components or inversion of logic states. This flexibility provides maximum design and application efficiency. Each circuit contains built?in protection when used as an output, protecting the driver while allowing short?time surges. It also protects against shorted loads caused by wiring errors
  • Weight: 4 lbs. (1.8 kg)
  • Size (height x width x depth): 8.83"(22.44cm) x 3.56" (9.05cm) x 4.42" (11.23cm)
  • LEDs (I/O Block): Unit OK, I/O Enabled
  • LEDs (each circuit): Individual load side indicators
  • Block to block Isolation: 1500V
  • Heat Dissipation: 68.8 Watts with 16 outputs on at 2A.
  • Operating voltage (one source): 18-56 VDC (24/48 V), 18-30 VDC (24 V)
  • Ripple (maximum): 10%
  • Required DC power: 150 mA typical/300 mA maximum
  • Power supply dropout time: 10ms
  • Output current (steady state): 2 Amps per circuit
  • Output OFF leakage current: 1.0 mA Maximum switching frequency Once per sec
  • Maximum inrush current: 10 Amps up to 10ms
  • Block output current: 15 Amps at 35C
  • Maximum switching frequency: Once per second (high inrush current)
  • Output Diagnostics: Short Circuit, Overload, No Load, Failed Switch, Overtemperature
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on IC660BBD022 . Santa Clara Systems carries 5,875 items from General Electric.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
