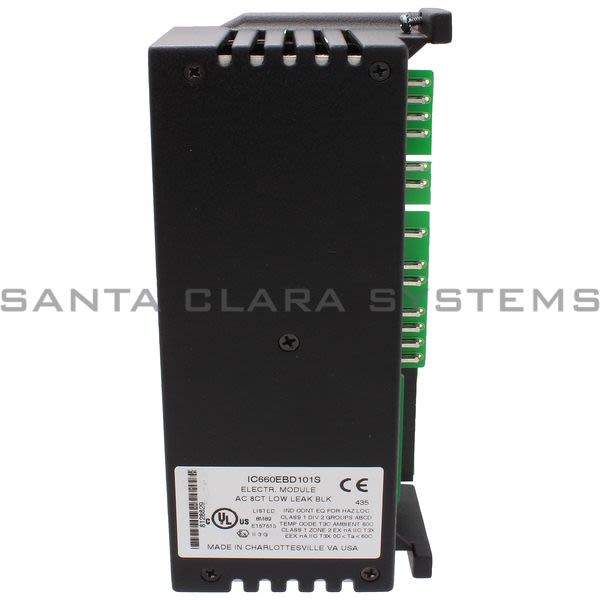

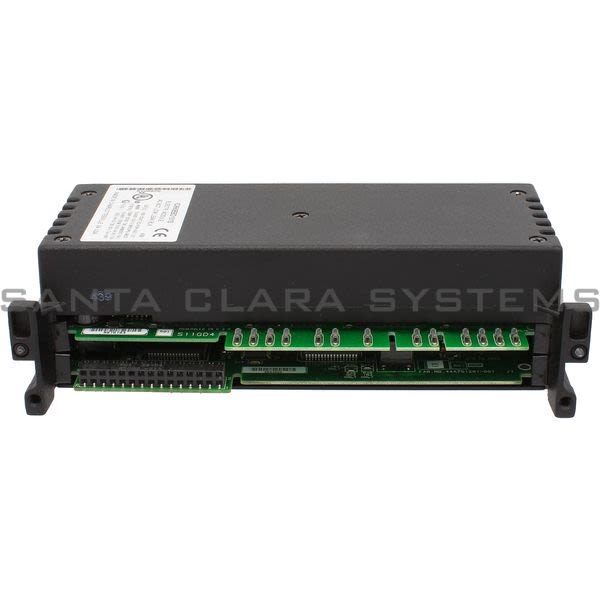

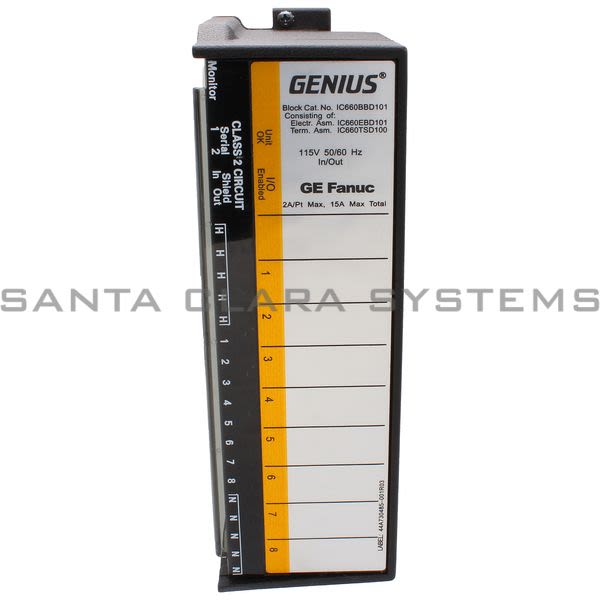

General Electric IC660 EBD 101 Electronic Assembly Product Image

IC660EBD101

General Electric - Electronic Assembly

Product Summary:

Weight: 4 lbs. (1.8 kg)
Size (height x width x depth): 8.83? (22.44cm) x 3.34? (8.48cm) x 3.91? (9.93cm)
LEDs (I/O Block): Unit OK, I/O Enabled
LEDs (each circuit): On logic side of switch
Block to Block Isolation: 1500V

Current response time:

9 Minutes 14 Seconds

Description: Electronic Assembly
Type of Device: Electronic Assembly for Genius I/O Block IC660BBD101, 115Vac I/O Low Leakage, 8 Circuits
Weight: 4 lbs. (1.8 kg)
Size (height x width x depth): 8.83? (22.44cm) x 3.34? (8.48cm) x 3.91? (9.93cm)
LEDs (I/O Block): Unit OK, I/O Enabled
LEDs (each circuit): On logic side of switch
Block to Block Isolation: 1500V
Heat Dissipation: 16W maximum with 8 inputs, 43.5W maximum with 8 outputs on at 2 Amps.
Standby power (all inputs and outputs off): 8.5 Watts

Operating voltage (single source): 93-132VAC
Frequency: 47-63 Hz
Power supply dropout time: 1 cycle (16.7ms at 60Hz, 20ms at 50Hz)
Block Features: Selectable input Filter Time from 10ms to 100ms; Output feedback for monitoring; Output powerup defaults; Outputs hold last state or default; Pulse Testing for outputs; Bus Switching Module control.
Circuit output current (steady state): 2 Amps RMS
Max. inrush current up to 2 cycles: 25 Amps peak
Maximum inrush current 2-6 cycles: 14 Amps peak
Compatibility: This block is fully compatible with Hand-held Monitor model IC66*HHM501. It may be used with IC66*HHM500; however, HHM501 is required to change the baud rate or to configure the block for redundancy. If the block will be used on a bus controlled by an IC550 series PLC, or a host computer equipped with a bus interface module, and the block will be configured as an inputs-only block, it may be necessary to upgrade the IC550 bus controller or computer bus interface module as detailed in the Discrete and Analog Blocks User?s Manual. Block IC66*BBD101 is designed to control small loads without the addition of parallel load resistance. It is also suitable for installations where a Class 1 Division 2 rating is required for Factory Mutual. This block is backward compatible with blocks IC66*CBD100 and BBD100, and may be used to replace them. Electronics Assembly IC66*EBD101 replaces IC66*ELD100 and EBD100. Terminal Assemblies IC66*TSD100E and later are not compatible with earlier versions of the Electronics Assembly. If the Terminal Assembly will be used to replace Terminal Assembly IC66*TSD100D or earlier, the Electronics Assembly must be either replaced with version IC66*EBD101F or later, or upgraded.
