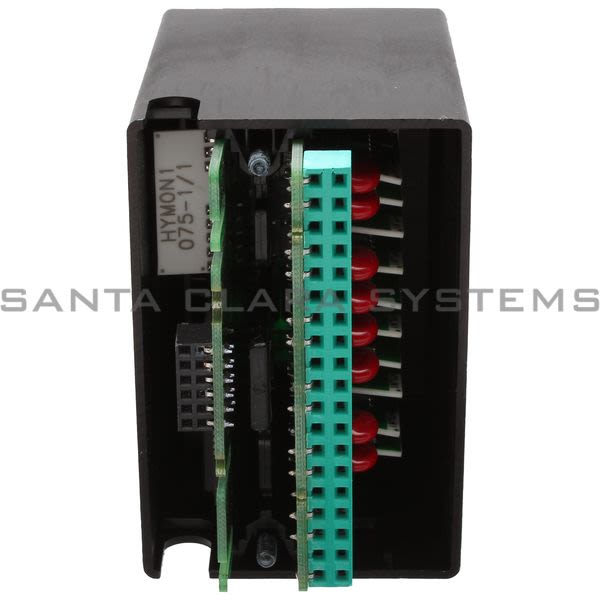

• General Electric IC670 ALG 620 Product Image

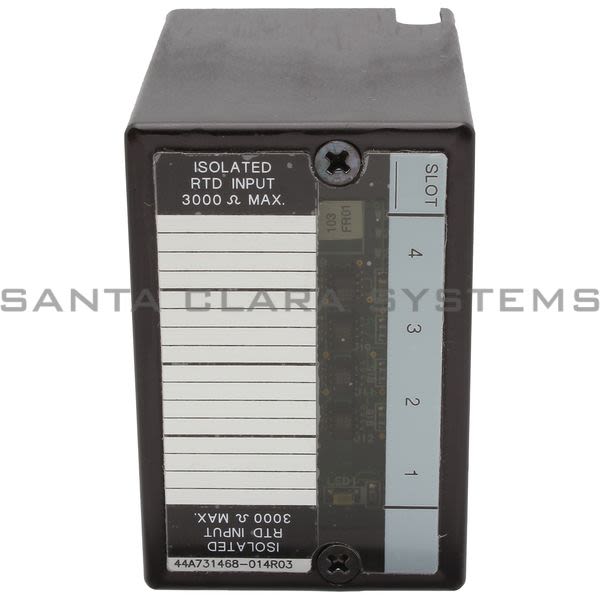

  • General Electric IC670 ALG 620 Product Image
  • General Electric IC670 ALG 620 Product Image
  • General Electric IC670 ALG 620 Product Image
  • General Electric IC670 ALG 620 Barcode

IC670ALG620

Product Summary:

  • Type of Device: RTD Input Module
  • Number of Channels: Four 3-wire and/or 4-wire RTDs
  • Fault detection: Open RTD, input short, underrange, overrange, and high/low alarm
  • Normal mode rejection: 60dB, at 50/60 Hz, 100% span
  • Common mode rejection: 120 dB at 50/60Hz, 100 ohm imbalance
Get a Quote

Current response time:

16 Minutes 22 Seconds
  • Description:
  • Type of Device: RTD Input Module
  • Number of Channels: Four 3-wire and/or 4-wire RTDs
  • Scan time: 60 Hz: approximately 210 milliseconds per point, 50 Hz: approximately 230 milliseconds per point.
  • Fault detection: Open RTD, input short, underrange, overrange, and high/low alarm
  • Normal mode rejection: 60dB, at 50/60 Hz, 100% span
  • Common mode rejection: 120 dB at 50/60Hz, 100 ohm imbalance
  • Common mode voltage: 250 Vrms (350 VDC or peak AC)
  • Normal mode voltage: 100% overrange DC or peak AC operational 28 VDC or peak AC maximum
  • Isolation - User input to logic, user input to frame ground: 1500 VAC for 1 minute, 250 VAC continuous
  • Channel to Channel: 250 VAC continuous
  • Current drawn from BIU power supply: 190 mA maximum
  • Digital Resolution: 15 bits plus sign
  • Operating temperature range: 0 to 55 Degrees C ambient
  • RTD types: 10, 25, 100, and 1000 ohm platinum; 10 and 100 ohm copper; 100, 50, and 120 ohm nickel; 604 ohms and 1000 ohms nickel/iron.
  • Resistance ranges: 0 to 500 ohms / 0 to 3000 ohms
  • Accuracy, at 25 C: RTD: +/-0.15% of reading, +/-0.3 to 0.5 degree Celsius, depending on type
  • Temperature sensitivity (0 to 60C): +/-0.004% of reading, +/-1.5V per C referred to input
  • Maximum lead resistance: 5 ohms per lead
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on IC670ALG620 . Santa Clara Systems carries 5,875 items from General Electric.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
