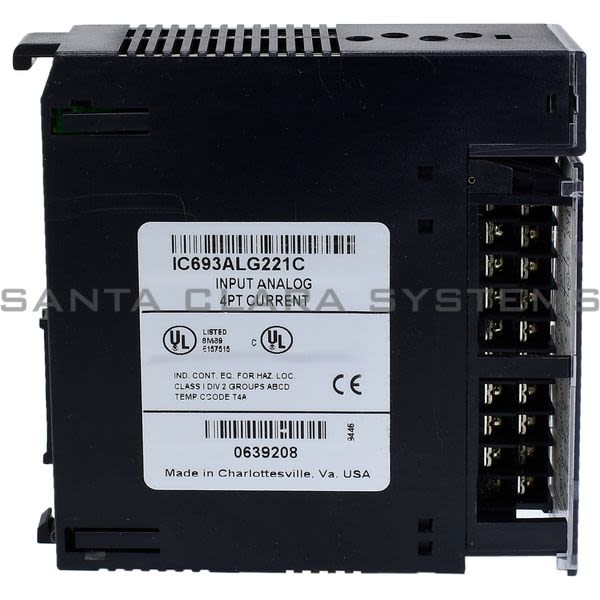

• General Electric IC693 ALG 221 Input Module | IC693ALG221 Product Image

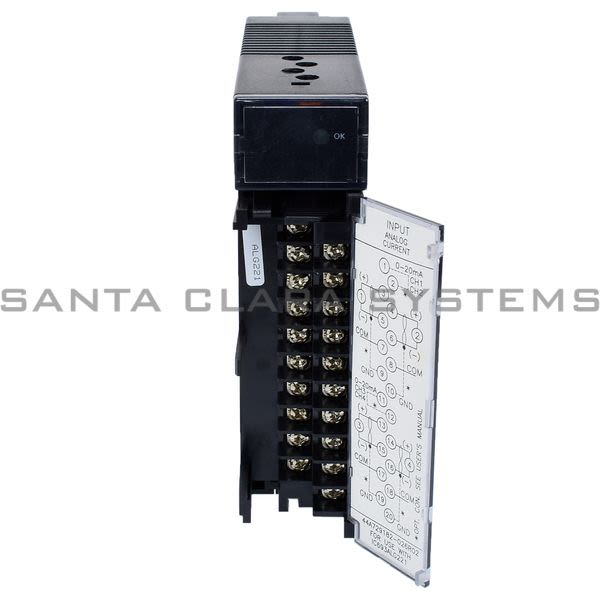

  • General Electric IC693 ALG 221 Input Module | IC693ALG221 Product Image

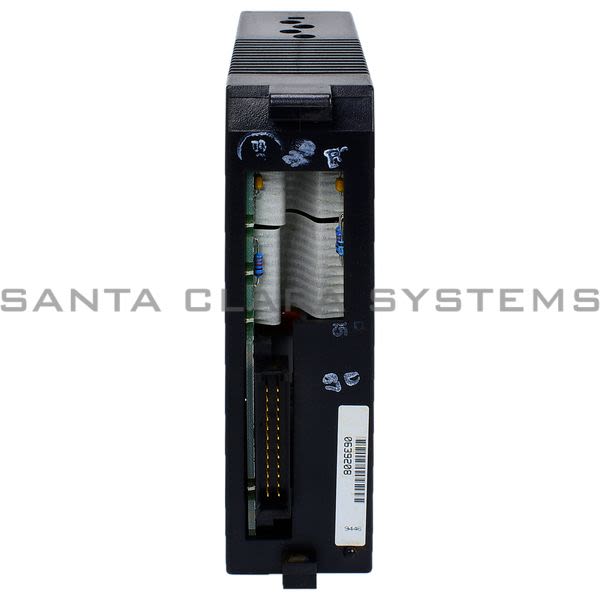

  • General Electric IC693 ALG 221 Input Module | IC693ALG221 Product Image
  • General Electric IC693 ALG 221 Input Module | IC693ALG221 Product Image
  • General Electric IC693 ALG 221 Barcode

IC693ALG221

Product Summary:

  • Type of Device: Isolated Analog Input Module; 4 Channel
  • UPC: 004810000007
  • Accuracy: 0.1 % Full Scale
  • Connection: 20 Screw Terminal Block
  • Input Filter Response: 325 Hz
Get a Quote

Current response time:

By 5AM PT on Monday
  • Description: Input Module | IC693ALG221
  • Type of Device: Isolated Analog Input Module; 4 Channel
  • Product Description: The 4-Channel Analog Current Input module for the Series 90-30 Programmable Logic Controller provides four input channels, each capable of converting an analog input signal to a digital signal for use as required by your application. This module provides two input ranges. The default range is 4 to 20 mA with user data scaled so that 4 mA corresponds to a count of 0 and 20 mA corresponds to a count of 32000 with each 1000 counts representing 0.5 mA.
  • UPC: 004810000007
  • Resolution: 12 bit; 0 - 20 Milli-Amp, 5 Micro-Amp/bit; 4 - 20 Milli-Amp, 4 Micro-Amp/bit
  • Accuracy: 0.1 % Full Scale
  • Connection: 20 Screw Terminal Block
  • Input Filter Response: 325 Hz
  • Input Impedance: 250 Ohm
  • Internal Power Supply: 27 Milli-Amp at 5 Volt DC; 98 Milli-Amp 24 Volt DC Isolated
  • Update Rate: 2 ms
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on IC693ALG221 . Santa Clara Systems carries 5,875 items from General Electric.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
