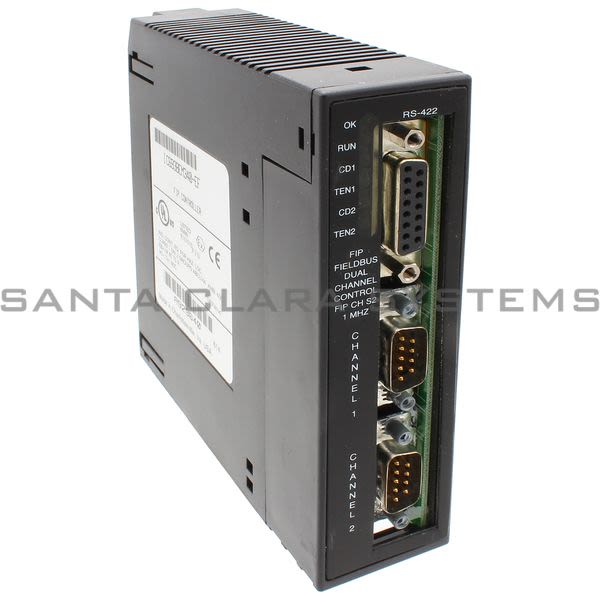

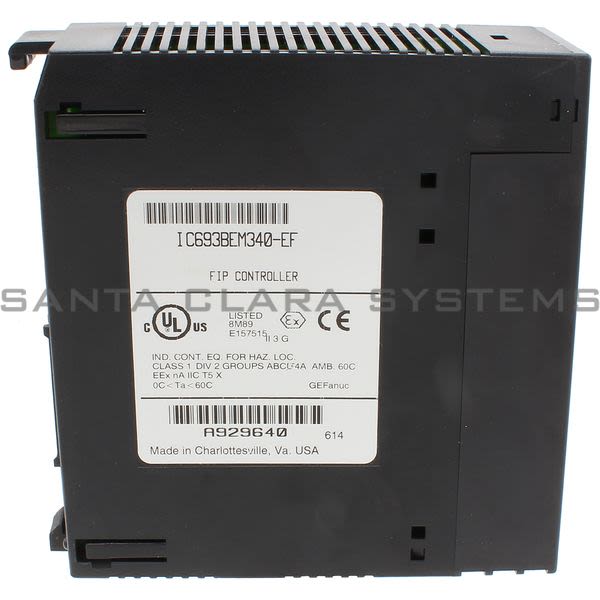

- Description: Fip Controller Module
- Type of Device: Bus Controller (FBC) Module
- Series 90-70 PLC: Interfaced to a FIP bus by a FIP Bus Controller
- Field Control Stations: Field Control I/O modules that are interfaced to the bus via a FIP Bus Interface Unit (BIU).
- Remote Drops: Series 90-30 I/O racks that are interfaced to the bus via FIP Remote I/O Scanner Modules. Each remote drop can include one 5- or 10-slot main rack, one 5- or 10-slot expansion rack and any mix of discrete and analog I/O modules.
- Generic Devices: such as general-purpose computers that are interfaced to the bus via a FIP Interface Module.

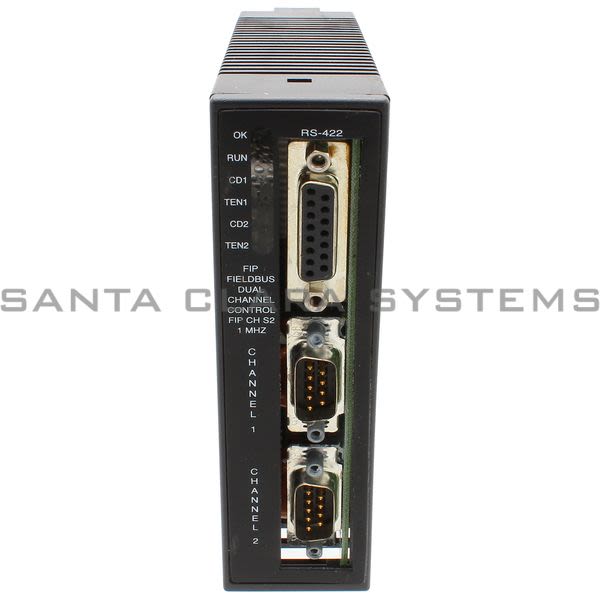

- Status LEDs: The 6 LEDs on the front of the FIP Bus Controller display module status and communications activity
- Serial Port: The 15-pin serial port is used to connect a computer for upgrading the operating firmware of the Bus Controller and for configuring by an external configuration tool.
- FIP Bus Connectors: The two 9-pin connectors on the FIP Bus Controller provide for attachment of one or two FIP busses. The two busses provide a redundant bus capability
- New Mode 30 Added: Redundancy / Management of slave devices (I/O nests, drives) / Monitoring of slave devices (I/O nests, drives, PLCs, control stations) / Time stamping of Boolean values / Messaging services / MPS synchronous exchanges / Reception of the external configuration through the FIP network
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on IC693BEM340 . Santa Clara Systems carries 6,143 items from General Electric.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
