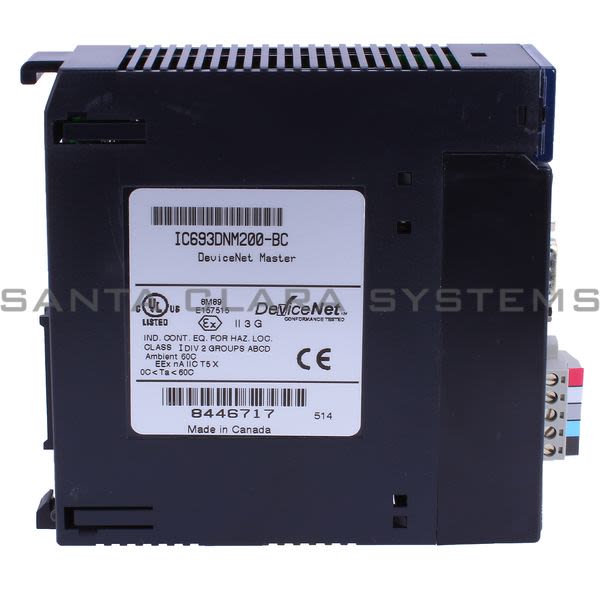

• General Electric IC693 DNM 200 Master Module Product Image

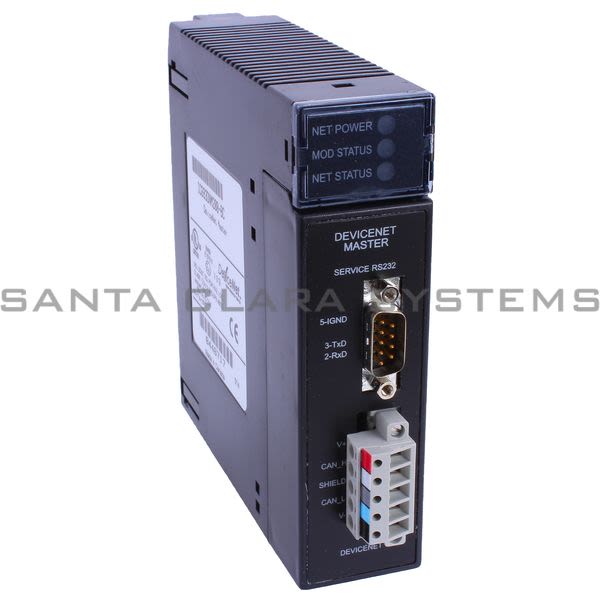

  • General Electric IC693 DNM 200 Master Module Product Image

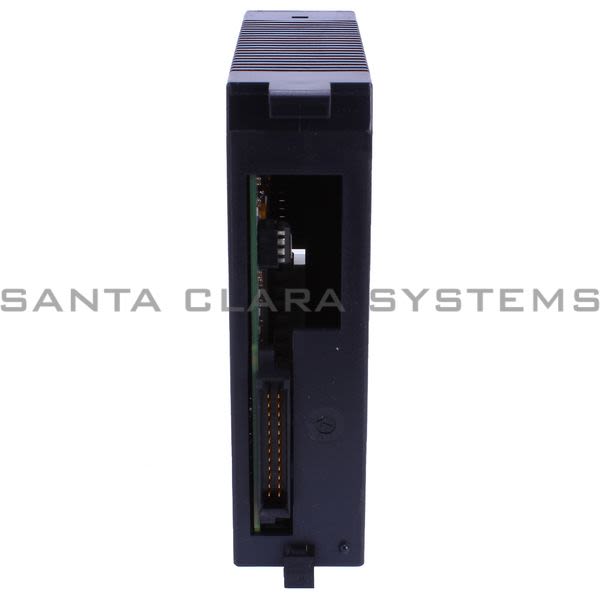

  • General Electric IC693 DNM 200 Master Module Product Image

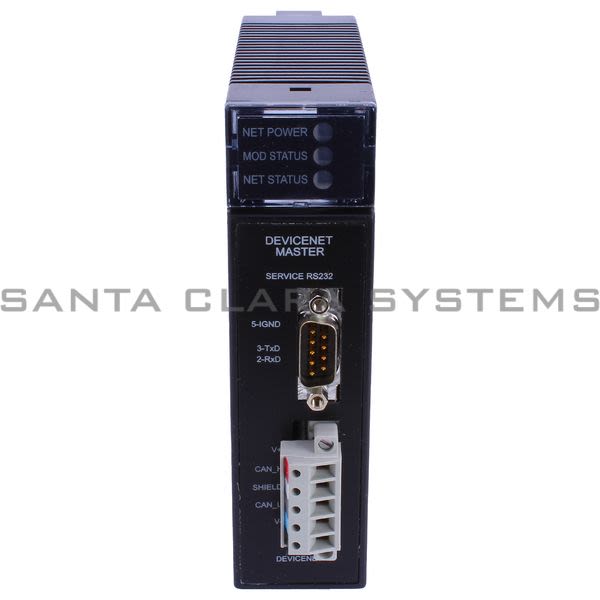

  • General Electric IC693 DNM 200 Master Module Product Image
  • General Electric IC693 DNM 200 Barcode

IC693DNM200

Product Summary:

  • Type of Device: DeviceNet Master Module
  • Rated Voltage: 12 through 24 volts DC, positive logic
  • Outputs per Module: 32 (four groups of eight outputs each)
  • Isolation: 1500 volts between field side and logic side, 250 volts between groups
  • Inrush Current: 5.4 amps for 10 ms
Let Us Find It

Current response time:

By 5AM PT on Monday
  • Description: Master Module
  • Type of Device: DeviceNet Master Module
  • Product Description: The DeviceNet Master Module (IC693DNM200/IC694DNM200) operates as the network master. It exchanges I/O messages and custom explicit messages with up to 63 other devices on the network. On DeviceNet networks that include a higher-level host computer, this module's built-in server function can be used for both automatic data transfer and custom explicit messaging with the master.
  • Output Current: 0.5 amps per point with 4 amps maximum per group and 3 amps maximum per group common pin
  • Rated Voltage: 12 through 24 volts DC, positive logic
  • Outputs per Module: 32 (four groups of eight outputs each)
  • Isolation: 1500 volts between field side and logic side, 250 volts between groups
  • Inrush Current: 5.4 amps for 10 ms
  • On-state Voltage Drop: 0.3 volts DC
  • Off-state Leakage Current: 0.1 mA maximum
  • On Response Time: 0.5 ms maximum
  • Off Response Time: 0.5 ms maximum
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on IC693DNM200 . Santa Clara Systems carries 5,875 items from General Electric.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
