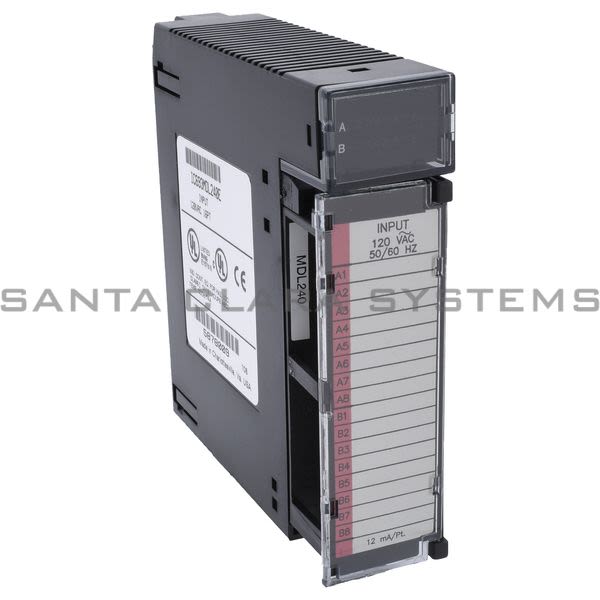

• General Electric IC693 MDL 240 Input Module | Series 90-30 Product Image

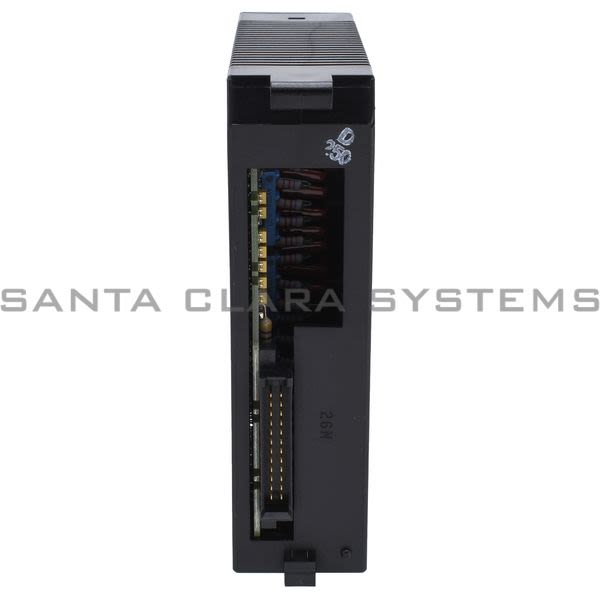

  • General Electric IC693 MDL 240 Input Module | Series 90-30 Product Image

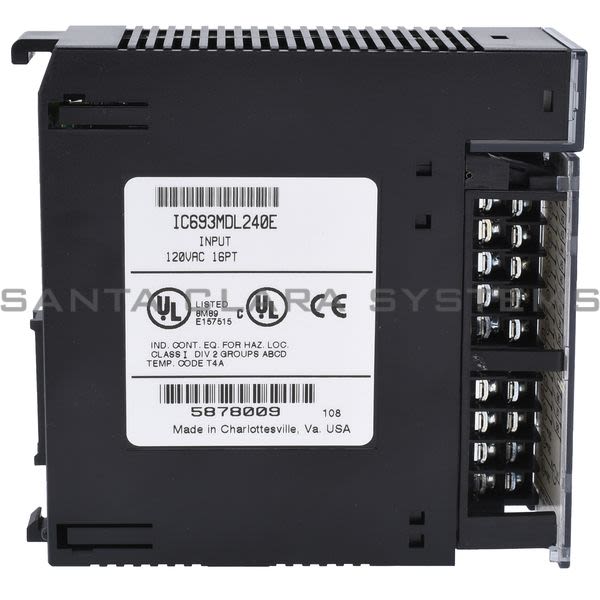

  • General Electric IC693 MDL 240 Input Module | Series 90-30 Product Image

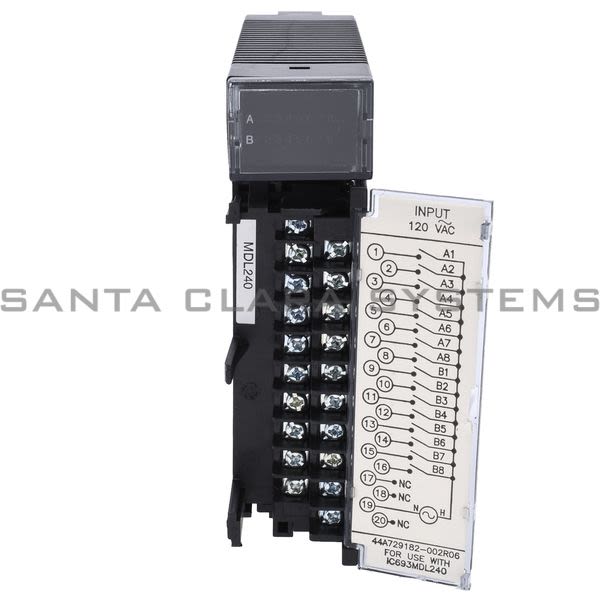

  • General Electric IC693 MDL 240 Input Module | Series 90-30 Product Image
  • General Electric IC693 MDL 240 Barcode

IC693MDL240

Product Summary:

  • Type of Device: 120 Volt AC Input, 16 Point
  • Rated Voltage: 120 volts AC
  • Input Voltage Range: 0 to 132 volts AC, 50/60 Hz
  • Inputs per Module: 16 (one group with a single common)
  • Isolation: 1500 volts RMS between field side and logic side
Get a Quote

Current response time:

19 Minutes 32 Seconds
  • Description: Input Module | Series 90-30
  • Type of Device: 120 Volt AC Input, 16 Point
  • Product Description: GE Fanuc Discrete input module for 90 - 30 series PLC offers 16 input points with one common power input terminal. It requires an AC power source for convenient operation. Module has LED indicators at the top to offer ON/OFF status of each point. Module has circuit wiring information on the surface towards the inside and circuit identification information on the outside surface. Module has a voltage rating of 120 VAC at 50/60 Hz, 0 - 132 VAC at 50/60 Hz, input current rating of 12 milli-Amps and a power rating of 90 milli-Amps at 5 VDC. It has a maximum ON response time of 30 milli-seconds and maximum OFF response time of 45 milli-seconds. Module is compatible with input devices such as pushbuttons, limit switches and electronic proximity switches. Input/output module provides the interface between the PLC and external input devices such as proximity sensors, push buttons, switches and BCD thumbwheels. It supports different voltage ranges, types, current capacity, isolation and response time to meet your application.
  • Rated Voltage: 120 volts AC
  • Input Voltage Range: 0 to 132 volts AC, 50/60 Hz
  • Inputs per Module: 16 (one group with a single common)
  • Isolation: 1500 volts RMS between field side and logic side
  • Input Current: 12 mA (typical) at rated voltage
  • On-state Voltage: 74 to 132 volts AC
  • Off-state Voltage: 0 to 20 volts AC
  • On-state Current: 6 mA minimum
  • Off-state Current: 2.2 mA maximum
  • On response Time: 30 ms maximum
  • Off response Time: 45 ms maximum
  • Consumption: 90 mA (all inputs on) from 5 volt bus on backplane
  • Product Details: Input modules provide the interface between the PLC and external input devices such as proximity sensors, push buttons, switches and BCD thumbwheels. Output modules provide the interface between the PLC and external output devices such as contactors, interposing relays, BCD displays and indicator lamps. This module requires an AC power source, it cannot be used with a DC power source.
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on IC693MDL240 . Santa Clara Systems carries 5,875 items from General Electric.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
