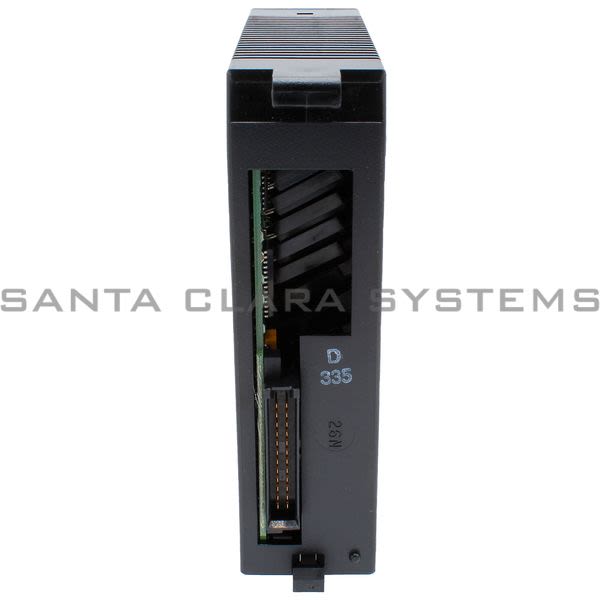

• General Electric IC693 MDL 340 Output Module | Series 90-30 Product Image

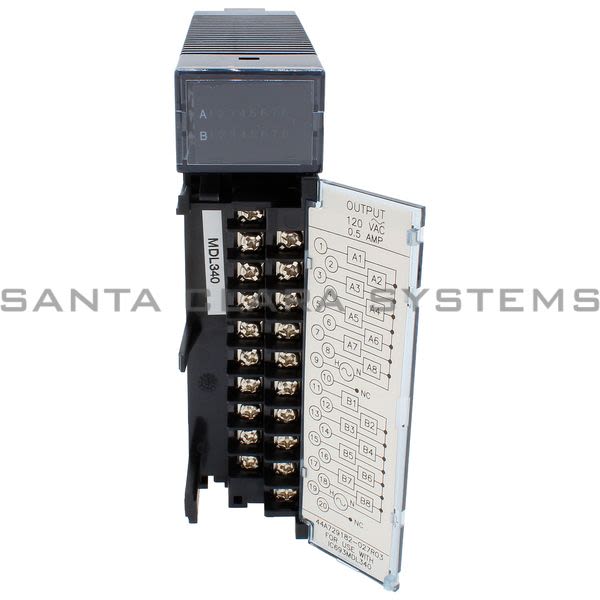

  • General Electric IC693 MDL 340 Output Module | Series 90-30 Product Image

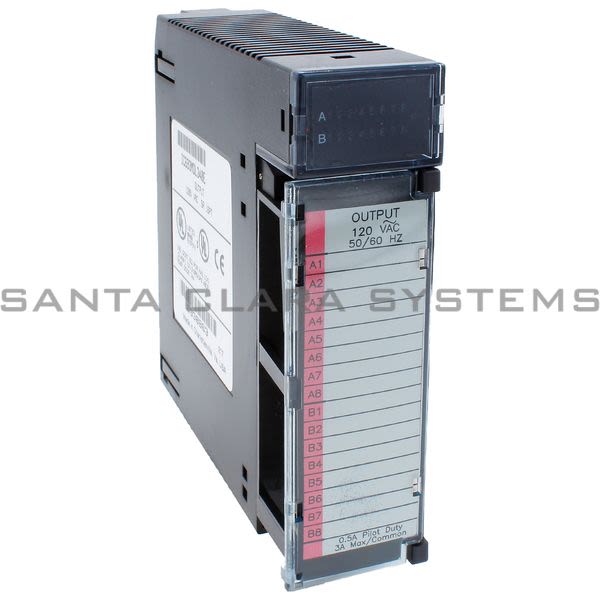

  • General Electric IC693 MDL 340 Output Module | Series 90-30 Product Image

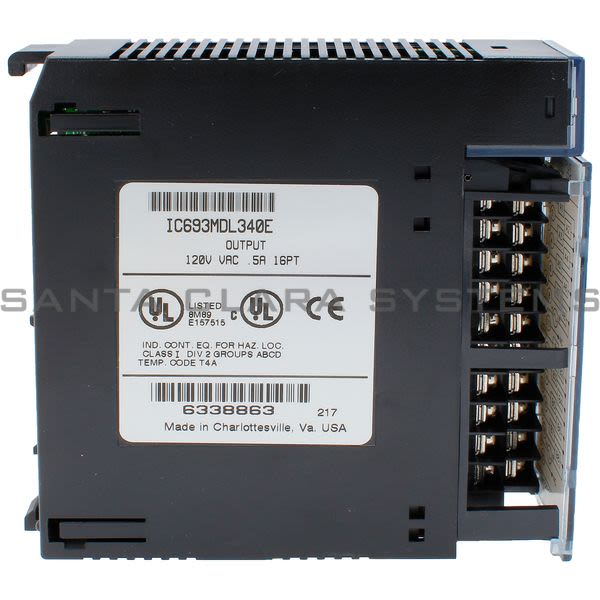

  • General Electric IC693 MDL 340 Output Module | Series 90-30 Product Image
  • General Electric IC693 MDL 340 Barcode

IC693MDL340

Product Summary:

  • Type of Device: 120 Volt AC Output - 0.5 Amp, 16 Point
  • Output Current: 0.5 amp maximum per point, 3 amps maximum per group
  • Rated Voltage: 120 volts AC
  • Output Voltage Range: 85 to 132 volts AC, 50/60 Hz
  • Outputs per Module: 16 (two groups of eight outputs each)
Get a Quote

Current response time:

By 5AM PT on Wednesday
  • Description: Output Module | Series 90-30
  • Type of Device: 120 Volt AC Output - 0.5 Amp, 16 Point
  • Product Description: The 120 volt, 0.5 Amp AC Output module provides 16 output points in two isolated groups with eight points in each group. Each group has a separate common associated with it (the two commons are not tied together inside the module). This allows each group to be used on different phases of the AC supply, or they can be powered from the same supply. Each group is protected with a 3 amp fuse, and an RC snubber is provided for each output to protect against transient electrical noise on the power line. This module provides a high-degree of inrush current which makes the outputs suitable for controlling a wide range of inductive and incandescent loads. AC Power to operate loads connected to outputs must be supplied by the user. This module requires an AC power source.
  • Output Current: 0.5 amp maximum per point, 3 amps maximum per group
  • Rated Voltage: 120 volts AC
  • Output Voltage Range: 85 to 132 volts AC, 50/60 Hz
  • Outputs per Module: 16 (two groups of eight outputs each)
  • Isolation: 1500 volts between field side and logic side, 500 volts between each group
  • Inrush Current: 20 amps maximum for one cycle
  • Minimum Load Current: 50 mA
  • Output Voltage Drop: 1.5 volts maximum
  • Output Leakage Current: 2 mA maximum at 120 volts AC
  • On Response Time: 1 ms maximum
  • Off Response Time: 1/2 cycle maximum
  • Power Consumption: 315 mA (all outputs ON) from 5 volt bus on backplane
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on IC693MDL340 . Santa Clara Systems carries 5,875 items from General Electric.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
