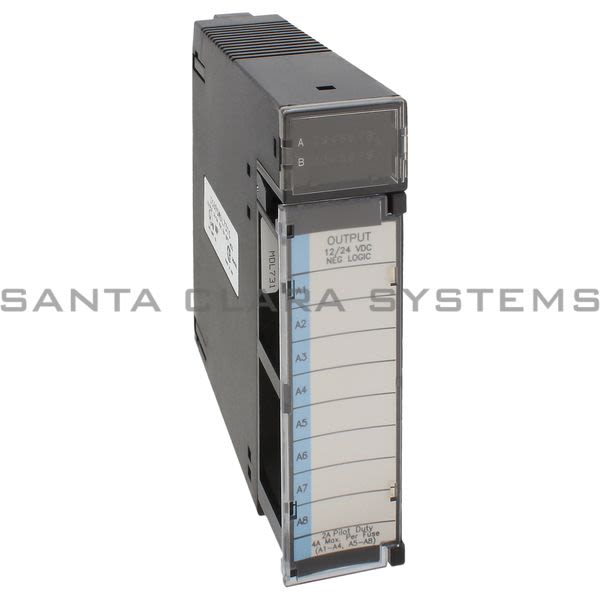

• General Electric IC693 MDL 731 12/24 VDC Output Neg Logic 8-PT Product Image

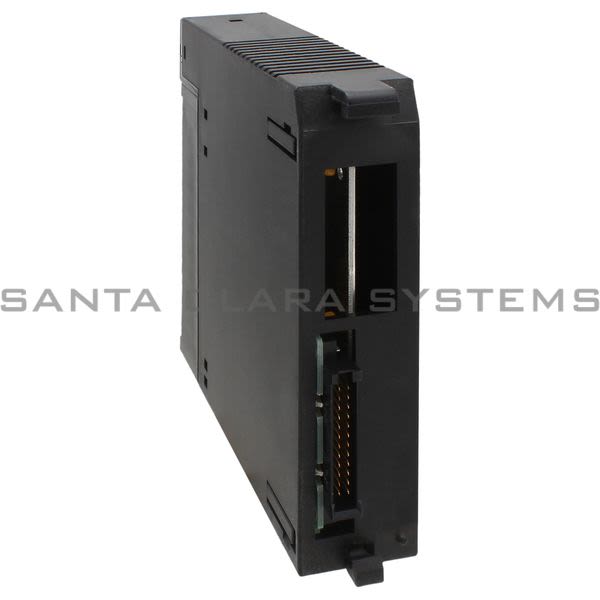

  • General Electric IC693 MDL 731 12/24 VDC Output Neg Logic 8-PT Product Image

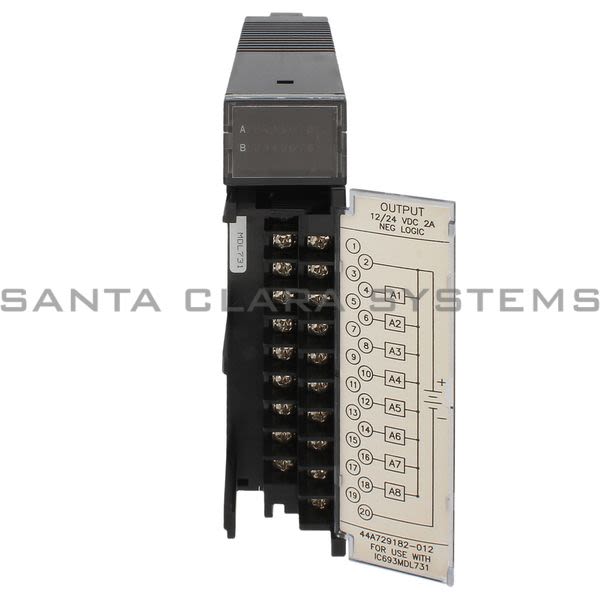

  • General Electric IC693 MDL 731 12/24 VDC Output Neg Logic 8-PT Product Image

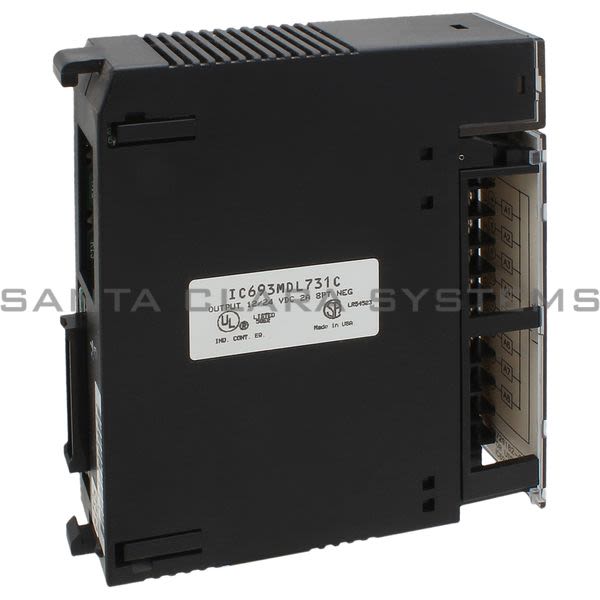

  • General Electric IC693 MDL 731 12/24 VDC Output Neg Logic 8-PT Product Image
  • General Electric IC693 MDL 731 Barcode

IC693MDL731

Product Summary:

  • Type of Device: 12/24 Volt DC Negative Logic Output - 2 Amp, 8 Point
  • Rated Voltage: 12/24 volts DC
  • Output Voltage Range: 12 to 24 volts DC (+20%, -15%)
  • Outputs per Module: 8 (one group of eight outputs)
  • Isolation: 1500 volts between field side and logic side
Get a Quote

Current response time:

By 5AM PT on Monday
  • Description: 12/24 VDC Output Neg Logic 8-PT
  • Type of Device: 12/24 Volt DC Negative Logic Output - 2 Amp, 8 Point
  • Product Description: The 12/24 volt DC Negative Logic 2 Amp Output module for the Series 90-30 Programmable Logic Controller provides 8 output points in one group with a common power output terminal. This output module is designed to have negative logic characteristics in that it sinks current from the loads to the user common or negative power bus.
  • Output Current: 2 amps maximum per point; 4 amps maximum per fuse at 50 C (122 F); 2 amps maximum per fuse at 60 C (140 F)
  • Rated Voltage: 12/24 volts DC
  • Output Voltage Range: 12 to 24 volts DC (+20%, -15%)
  • Outputs per Module: 8 (one group of eight outputs)
  • Isolation: 1500 volts between field side and logic side
  • Output Voltage Drop: 0.75 volts maximum
  • Off-state Leakage: 1 mA maximum
  • On Response Time: 2 ms maximum
  • Off Response Time: 2 ms maximum
  • Power Consumption: 55 mA (all outputs on) from 5 volt bus on backplane
  • Output Characteristics: The output characteristics are compatible with a wide range of user-supplied load devices, such as: motor starters, solenoids, and indicators.
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on IC693MDL731 . Santa Clara Systems carries 5,875 items from General Electric.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
